Запчасти Case IH 1660 (2-38) - OIL COOLER, DT466B ENGINE (01) - ENGINE

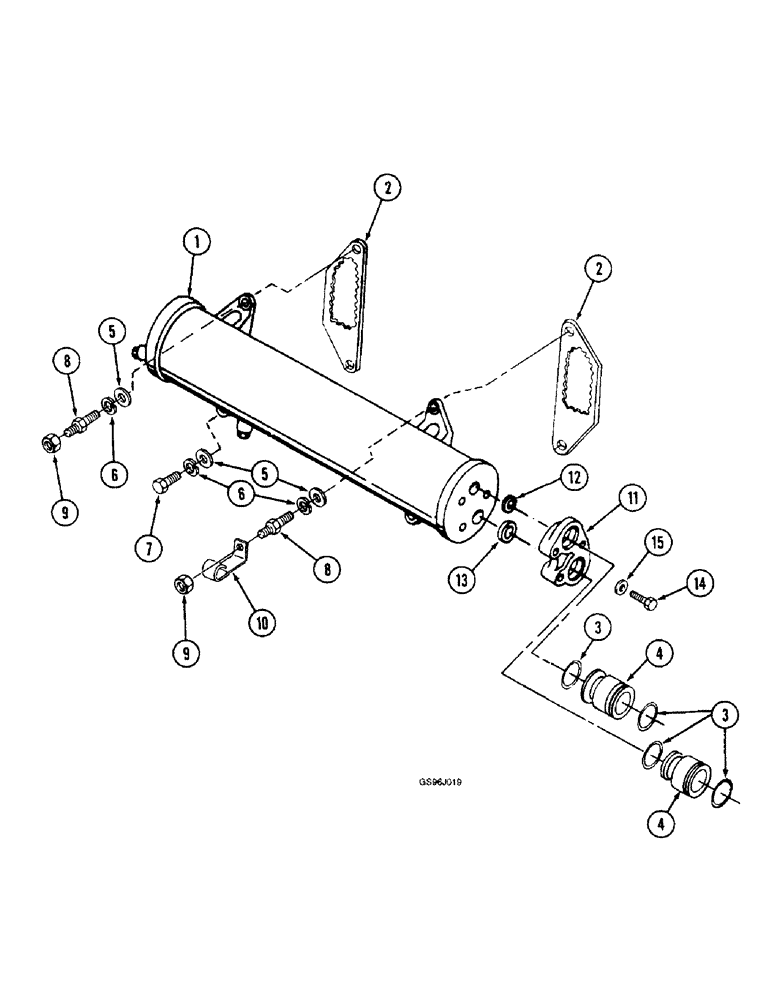

Схема запчастей Case IH 1660 - (2-38) - OIL COOLER, DT466B ENGINE (01) - ENGINE
5
7
4
15
6
13
2
9
6
8
1
3
5
10
2
9
11
12
3
8
14
4

Артикул

Название

Примечание

Количество

1

1810171C1

COOLER, OIL

COOLER - oil (Replaces cooler 690884C1)

1шт.

1

735260C92

REMAN-OIL COOLER

1660 (Prior To S/N JJC0038346 (1/86-12/92)

1шт.

1

1938223C1

CORE-OIL COOLER

Return number

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover

2шт.

5

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

6

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

7

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

3шт.

8

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - 3/8 NC x 3/8 inch NF, rear upper

1шт.

9

329-116

NUT,3/8"-24, G8

NUT, 3/8"-24, G8

1шт.

11

1810568C1

PLATE

SPACER - oil cooler, use with oil cooler 1810171C1

1шт.

12

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

O-RING, Rect, .5" ID x .688" OD, Cl 5

1шт.

13

239-5124

O-RING,Rect, 1.25" ID x 1.438" OD, Cl 5

SEAL - quad, 1-1/4 x 1-7/16 inch

1шт.

14

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

BOLT, Hex, 5/16"-18 x 1 3/4", G8

3шт.

15

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

Выбрано товаров: 16
