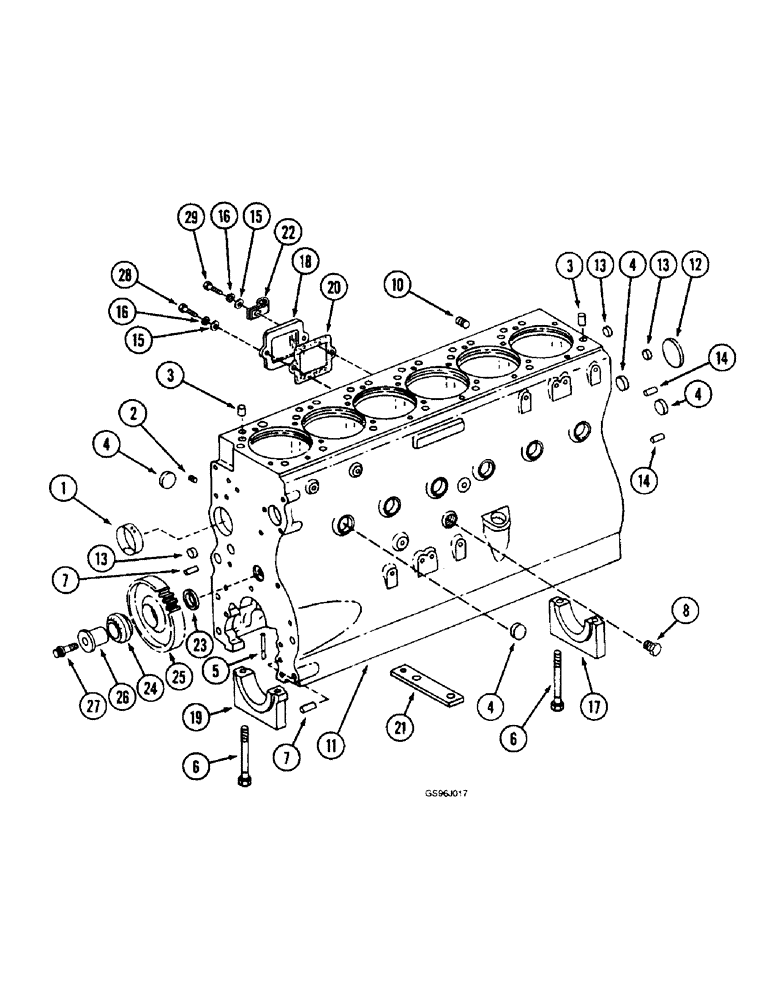

Запчасти Case IH 1660 (2-34) - CYLINDER BLOCK, DT466B ENGINE (01) - ENGINE

735289C91

CRANKCASE

BLOCK ASSEMBLY - cylinder, remanufactured, North America only

1шт.

1802336C93

CRANKCASE

BLOCK ASSEMBLY - cylinder, new, no longer available, order one stripped block 1817370C91, item 11; one plug 682444C1, item 12; twelve 343464R1 nozzles, item 5; and twelve 211-1008 steel balls, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - camshaft, order kit 680117C1

4шт.

2

50410DA

PLUG

- hex socket, 1/8 inch PT

5шт.

3

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- locating

2шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

9шт.

5

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet

12шт.

6

1802582C1

BOLT

- main bearing cap

14шт.

7

680483C1

PIN

DOWEL - dowel, 3/8 x 7/8 inch

2шт.

8

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

Drain Hex Hd, 3/8"-18

1шт.

10

217-442

PLUG,3/4" - 14

- hex socket headless, 3/4 inch PT

2шт.

11

1817370C91

CRANKCASE

BLOCK - cylinder, stripped (Replaces block 1809687C92)

1шт.

680483C1

PIN

DOWEL - dowel, 3/8 x 7/8 inch

2шт.

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

12шт.

12

682444C1

RING

PLUG - rear, camshaft

1шт.

13

41-1013

PLUG,Cup, 13/16"

- cup, 13/16 inch diameter

3шт.

14

680484C1

DOWEL

- dowel, 1/2 x 1-1/8 inch

2шт.

15

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

680243C1

HOUSING

CAP - main bearing, rear

1шт.

18

690166C1

COVER

- breather opening

1шт.

19

680241C1

CAP

- main bearing, front and intermediate

6шт.

20

690231C3

GASKET

- breather cover

1шт.

21

673761C1

BRACKET

- suction pipe support

1шт.

22

1806481C1

CLAMP

- turbocharger oil inlet tube

1шт.

23

675767C1

SPACER

- idler gear

1шт.

24

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

25

675764C1

GEAR

- idler, 77 tooth

1шт.

26

675765C1

SHAFT

- idler gear stub

1шт.

27

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

BOLT - 12 point flange, idler gear shaft

1шт.

28

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

1шт.

29

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

1шт.

687002C1

INSERT

- cylinder block, used with the lower cylinder sleeve pilot bore

1шт.
