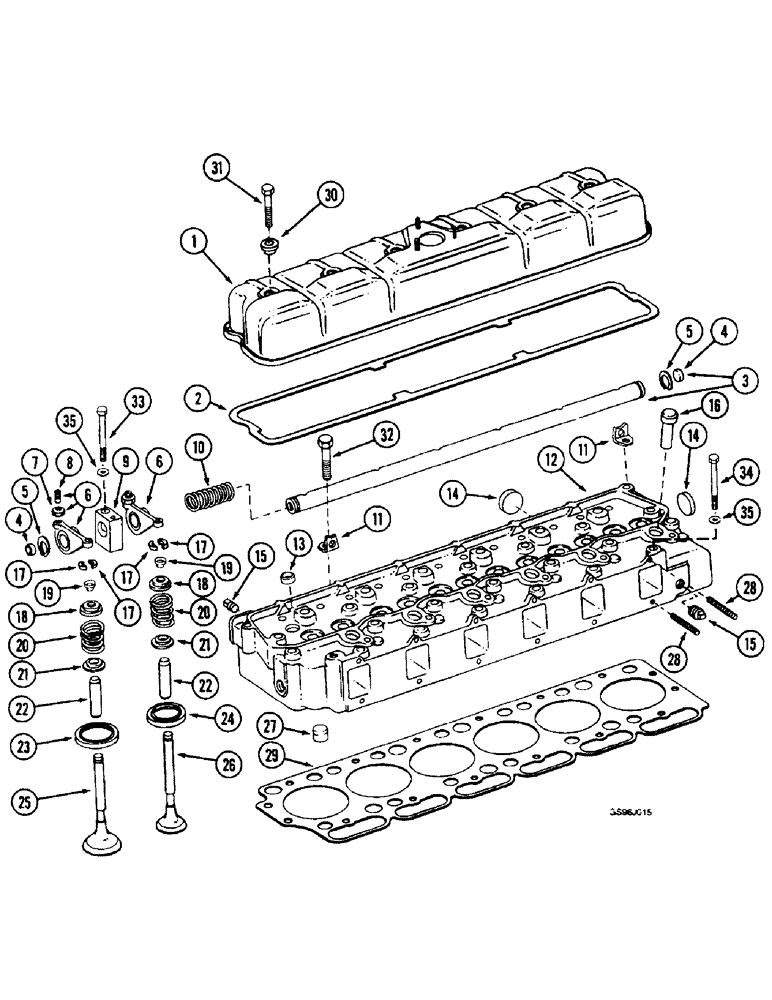

Запчасти Case IH 1660 (2-30) - CYLINDER HEAD AND VALVE MECHANISM, DT466B ENGINE (01) - ENGINE

1

690339C3

VALVE COVER

COVER - valve

1шт.

2

1342828C1

GASKET

- valve cover

1шт.

3

675660C92

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 4

1шт.

4

41-109

PLUG,Cup, 9/16"

- cup, 5/16 inch diameter

2шт.

5

100-1184

SNAP RING,#84, Ext

Ring, Snap, #84, Ext

2шт.

6

688999C93

ROCKER

ARM ASSEMBLY - valve rocker, Includes: Ref. 7 and 8

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

12шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

12шт.

9

1802461C2

BRACKET

- rocker arm shaft

6шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

749854C92

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured

1шт.

1928113C1

CORE-CYLINDER HEAD

Return Number

1шт.

1816969C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (Replaces head assembly 691877C91), Includes: Ref. 12 - 28

1шт.

12

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly

1шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch diameter

6шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch diameter

6шт.

15

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT

2шт.

16

675442C1

SLEEVE

- injector

6шт.

17

41339D

KEY

LOCK - valve spring retainer

24шт.

18

682221C92

VALVE

ROTATOR - valve, Includes: Ref. 19

12шт.

19

1342827C1

SHIELD

- oil

12шт.

20

682064C1

SPRING

- valve

12шт.

21

675443C1

SEAT

- valve spring

12шт.

22

675439C1

GUIDE

- valve

12шт.

23

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat, standard, order head assembly

6шт.

23

671559C1

INSERT

- intake valve seat, 0.002 inch oversize

1шт.

23

671561C1

INSERT

- intake valve seat, 0.015 inch oversize

1шт.

24

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat, standard, order head assembly

6шт.

24

671563C2

INSERT

- exhaust valve seat, 0.002 inch oversize

1шт.

24

671565C1

INSERT

- exhaust valve seat, 0.015 inch oversize

1шт.

25

675046C4

VALVE,ENGINE,INLET,S

VALVE - intake

6шт.

26

676865C4

VALVE

- exhaust

6шт.

27

691183C1

DEFLECTOR

DIRECTOR - water

12шт.

28

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

- manifold, to cylinder head (Replaces stud 682840C1)

12шт.

29

1342421C2

CYLINDER HEAD GASKET

- cylinder head

1шт.

30

1342830C1

SEAL

GROMMET - valve cover

6шт.

31

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

6шт.

32

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

- hex, 9/16 NC x 1-1/4 inch, grade 8

2шт.

33

676119C1

BOLT

- cylinder head long

6шт.

34

676120C1

BOLT

- cylinder head short

20шт.

35

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.
