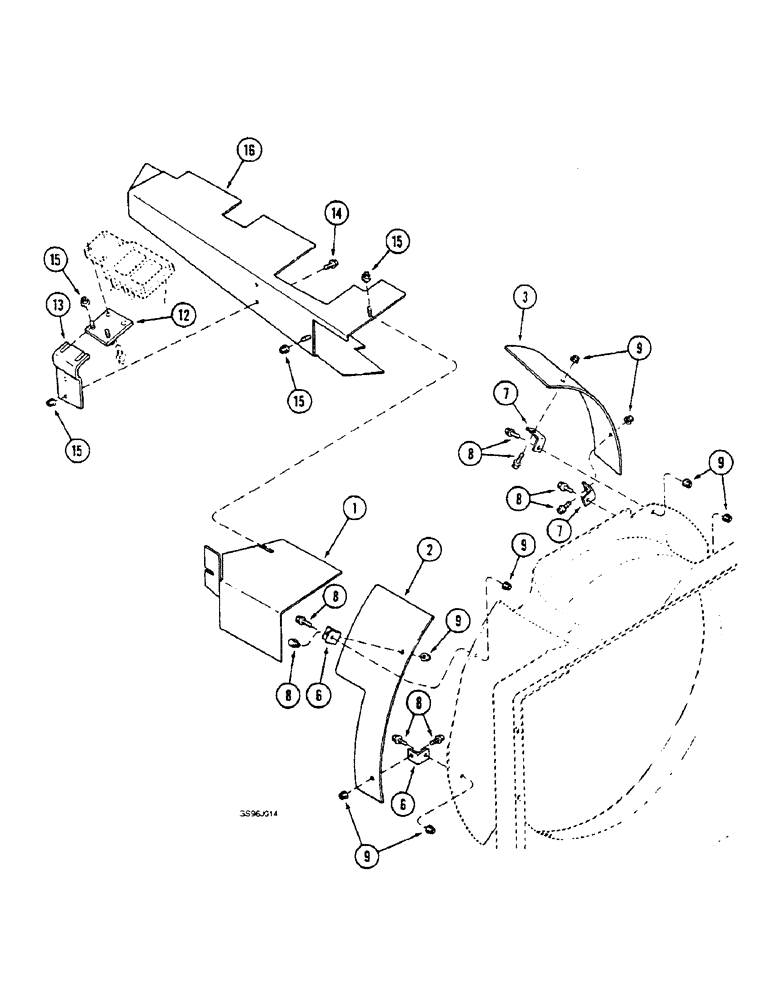

Запчасти Case IH 1660 (2-28) - ENGINE SHIELDS (01) - ENGINE

1

1957554C1

EXTENSION

SHIELD - air deflector extension

1шт.

2

1957431C1

DEFLECTOR

- fan shroud, right-hand

1шт.

3

1957430C1

DEFLECTOR

- fan shroud, left-hand

1шт.

6

1957432C1

SUPPORT

- fan deflector, right-hand

2шт.

7

1346674C1

SUPPORT

- fan deflector, left-hand

2шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

8шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

12

1970261C1

SUPPORT ASSY.

SUPPORT - manifold cover

1шт.

13

1957429C1

SUPPORT

- manifold cover

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

16

1347035C1

SHIELD

- exhaust manifold

1шт.
