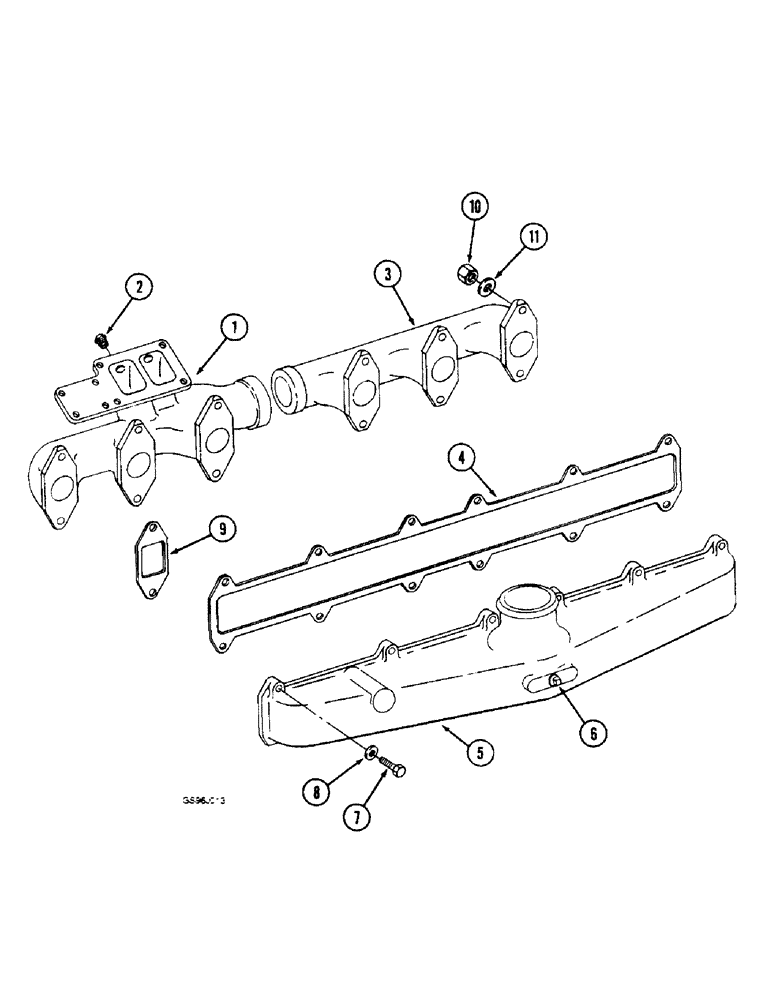

Запчасти Case IH 1660 (2-26) - INTAKE AND EXHAUST MANIFOLD, DT466B ENGINE (01) - ENGINE

1

683562C1

MANIFOLD

- exhaust, front

1шт.

2

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT (Replaces plug 444614)

2шт.

3

675779C3

MANIFOLD

- exhaust, rear

1шт.

4

1342839C1

MANIFOLD GASKET

- intake manifold

1шт.

5

691935C91

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 6

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

7

310-1520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8 (Replaces bolt 26679R1)

12шт.

8

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

12шт.

9

1349062C1

MANIFOLD GASKET

- exhaust manifold

6шт.

10

682987C1

NUT

- hex, 7/16 inch NF

12шт.

11

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch

12шт.
