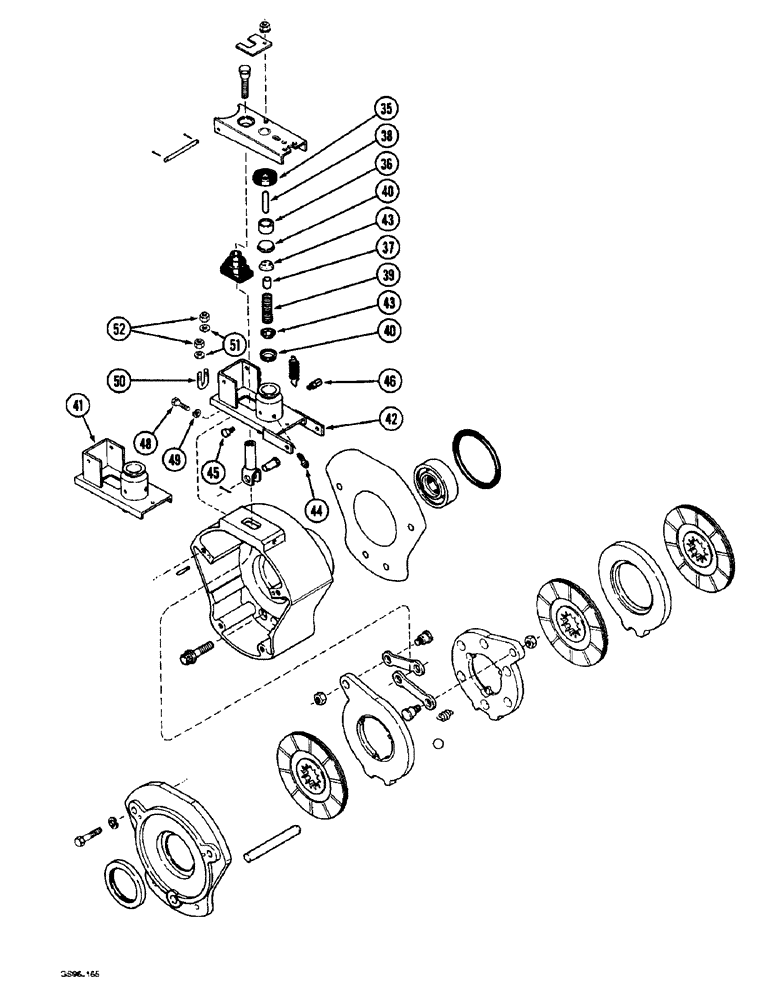

Запчасти Case IH 1660 (7-06) - MASTER BRAKES, (CONTD) (5.1) - BRAKES

1329740C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, right-hand, Includes: Ref. 35 - 46

1шт.

1329739C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake, left-hand, Includes: Ref. 35 - 46

1шт.

35

662620R1

COVER

BOOT - wheel cylinder

1шт.

Part of Repair Kit, P/N 1288942C92

1шт.

36

662616R1

PISTON

- wheel cylinder

1шт.

Part of Repair Kit, P/N 1288942C92

1шт.

37

1281779C1

LARGE PIN

PIN - brake piston spacer

1шт.

38

184325C2

PLUNGER

- wheel cylinder

1шт.

39

84940C1

SPRING

- wheel cylinder

1шт.

Part of Repair Kit, P/N 1288942C92

1шт.

40

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

Part of Repair Kit, P/N 1288942C92

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT - brake actuator, right-hand, order assembly 1329740C2

1шт.

42

NSS

NOT SOLD SEPARAT

SUPPORT - brake actuator, left-hand, order assembly 1329739C2

1шт.

43

85105C1

EXPANDER

CUP - wheel cylinder

2шт.

44

660901R1

VALVE

- bleeder

2шт.

45

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

46

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

48

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

49

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

50

1327797C1

CLAMP

U-BOLT - 1/4 NC x 1-1/4 inch

2шт.

51

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

- flat, 9/32 x 1/2 x 1/16 inch

4шт.

52

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

4шт.

1288942C92

KIT

- repair, wheel cylinder, Includes: Ref. 35 - 46

1шт.
