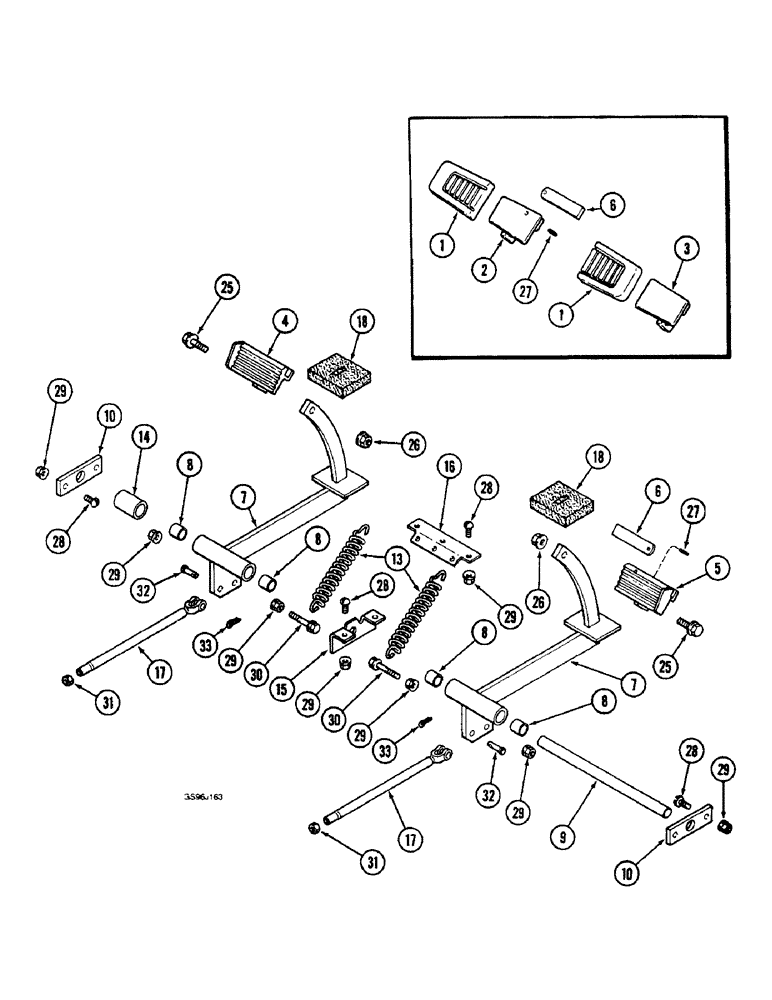

Запчасти Case IH 1660 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

863426R1

PAD

- pedal, used with items 2 and 3

2шт.

2

1321926C1

PEDAL

- brake, left-hand, used with item 1

1шт.

3

1321927C1

PEDAL

- brake, right-hand, used with item 1

1шт.

4

1979734C1

PEDAL

- brake, left-hand, no longer used, order pedal 1321926C1, item 2

1шт.

5

1979733C1

PEDAL

- brake, right-hand, no longer used, order pedal 1321927C1, item 3

1шт.

6

614251R1

BAR

- brake locking

1шт.

7

1321925C91

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 8

2шт.

8

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- 3/4 inch (19 mm) diameter

2шт.

9

1280117C1

SHAFT

- support pivot

1шт.

10

1281794C1

PLATE

BAR - pivot shaft support

2шт.

13

182652A1

SPRING

- 27.9 OD x 122 mm free length

2шт.

14

1280116C1

SPACER

- support pivot

1шт.

15

1321383C1

ANGLE

- support

1шт.

16

1327560C1

ANGLE

- spring hook

1шт.

17

1281882C1

ROD

LINK - brake

2шт.

18

1321935C1

SEAL

- pedal

2шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

25

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, 3/8 NC x 1-1/4 inch, black

2шт.

26

231-5146

FLANGE NUT,3/8"-16

2шт.

26

1327765C1

LOCK NUT

- hex flange, self-locking, 3/8 inch NC, black

2шт.

27

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

13шт.

30

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

31

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

32

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

33

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.
