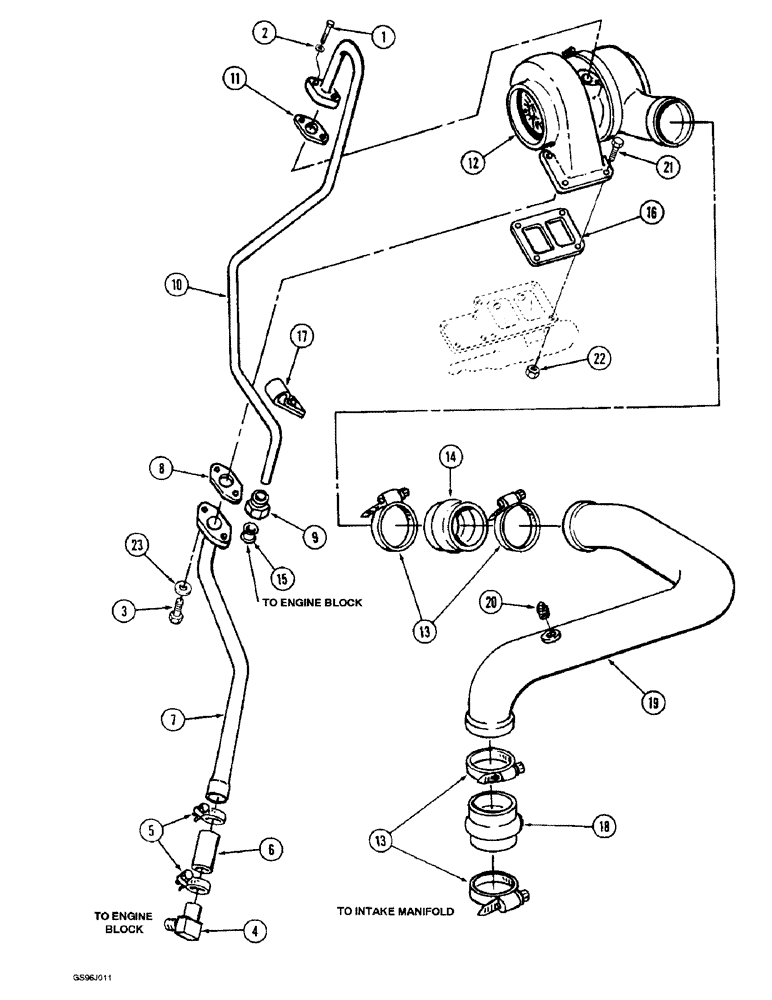

Запчасти Case IH 1660 (2-22) - TURBOCHARGER SYSTEM, DT466B ENGINE (01) - ENGINE

1

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

2

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

3

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

4

673622C1

ELBOW

- turbocharger oil drain

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

6

675859C2

HOSE,22.35mm ID x 66.04mm L

Turbocharger Oil Drain

1шт.

7

675781C2

TUBE

- turbocharger oil drain

1шт.

8

1342835C1

GASKET

- turbocharger oil drain tube

1шт.

9

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube OD x 5/8-24 inch

1шт.

10

690404C91

TUBE,0.375" OD

- oil inlet

1шт.

11

1342834C1

GASKET

- turbocharger oil inlet tube

1шт.

12

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list Fig. 2-24

1шт.

13

687456C1

CLAMP

- turbocharger air outlet pipe hose

4шт.

14

675723C2

HOSE,1.96" ID, 2.21" ID x 2.50", SAE J200

Turbocharger Air Outlet Pipe 1.96" ID, 2.21" ID x 2.50", SAE J200

1шт.

15

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube OD

1шт.

16

1342826C1

GASKET

- turbocharger

1шт.

17

1806481C1

CLAMP

- turbocharger oil inlet tube, lower

1шт.

18

310385R2

INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200

- Turbocharger Air Outlet Pipe 2.21" ID x 3.00", SAE J200

1шт.

19

691178C91

PIPE

ASSEMBLY - turbocharger air outlet, Includes: Ref. 20

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

21

113-2234

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

- hex, 3/8 NC x 1-1/2 inch

4шт.

22

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

23

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.
