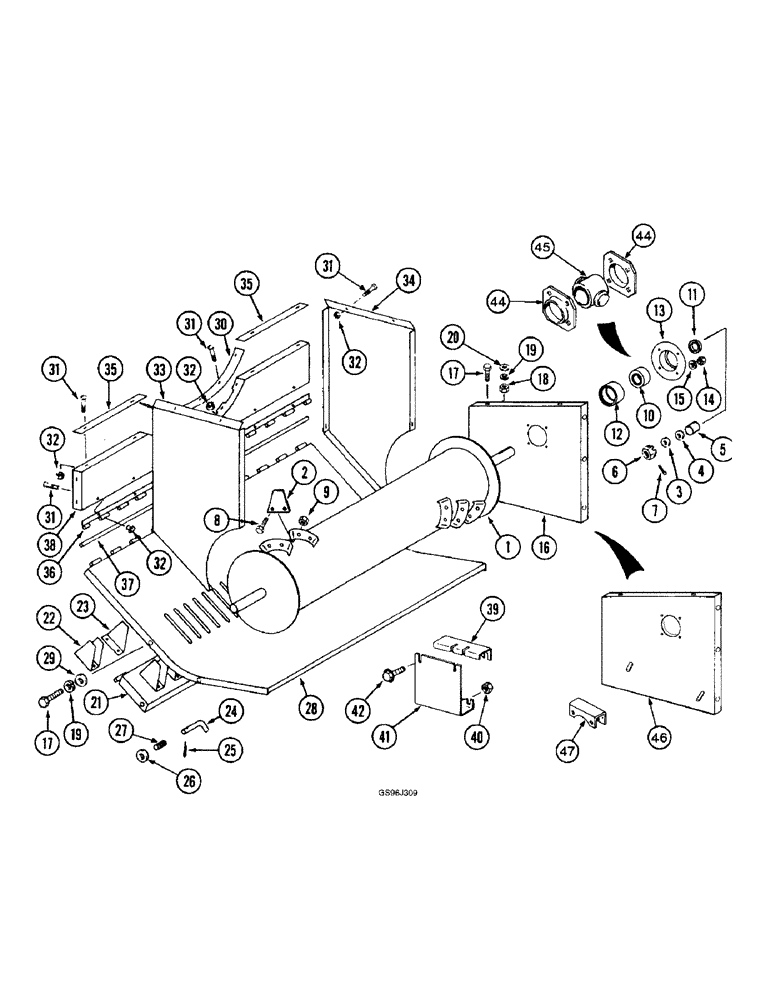

Запчасти Case IH 1660 (9F-16) - STRAW CHOPPER ROTOR AND CONCAVE (19) - STRAW SPREADER & CHOPPER

1

185099C93

ROTOR ASSY.

ROTOR ASSEMBLY - straw chopper, Includes: Ref. 2

1шт.

2

197124C1

PACKAGE

BLADE - straw chopper rotor, set of two

14шт.

3

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

- flat, 29/32 x 2 x 5/32 inch

2шт.

4

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

6шт.

5

181156C1

SPACER

- rotor

2шт.

6

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, grade 8

1шт.

7

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

10

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - ball, used with supports 181096C1 and 181097C1

2шт.

11

455112R11

COLLAR

- locking, bearing

2шт.

12

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- bearing

2шт.

13

936130R2

FLANGE

- bearing, used with supports 181096C1 and 181097C1

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

16

181096C1

SUPPORT

- rotor, left-hand, no longer available, order items 44 - 47 below

1шт.

16

181097C1

SUPPORT

- rotor, right-hand, no longer available, order items 44 - 47 below

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

20шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

18

425-106

NUT,3/8"-16, Cl 5

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

21

185135C91

BAR

ASSEMBLY - straw chopper concave, Includes: Ref. 22 and 23

1шт.

22

1302763C1

KNIFE

BLADE - double

12шт.

23

1302764C1

KNIFE

BLADE - single

1шт.

24

186736C3

ROD

PIN - latch

2шт.

25

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

27

540815R2

SPRING

- latch pin

2шт.

28

185141C3

PLATE

BOTTOM - straw chopper deflector

1шт.

29

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch

4шт.

30

182898C1

SUPPORT

PLATE - filler, rear

1шт.

Equipped on rice combine

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

29шт.

32

231-5146

FLANGE NUT,3/8"-16

29шт.

33

182946C1

DEFLECTOR

- discharge, left-hand

1шт.

Equipped on rice combine

1шт.

34

182947C1

DEFLECTOR

- discharge, right-hand

1шт.

Equipped on rice combine

1шт.

35

182891C1

PLATE

- bulkhead filler, rear

2шт.

Equipped on rice combine

1шт.

36

182894C1

HINGE

- pan

1шт.

Equipped on rice combine

1шт.

37

182977C1

ROD

- lower hinge

1шт.

Equipped on rice combine

1шт.

38

182929C1

SUPPORT

- cage, lower rear, see Fig. 9C-04

1шт.

39

181209C1

SUPPORT

- sensor

1шт.

40

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

4шт.

41

181208C3

SUPPORT

COVER - tailings sensor bracket

1шт.

42

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

2шт.

43

104236

RIVET,4.76mm OD x 15.88mm L

Not shown FH, 3/16" x 5/8"

1шт.

44

1307583C1

FLANGED BEARING

- bearing

4шт.

45

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - ball

2шт.

46

144704A1

SUPPORT

- chopper bearing, left-hand

1шт.

46

144705A1

SUPPORT

- chopper bearing, right-hand

1шт.

47

144706A1

SUPPORT

BRACKET - sensor mounting, used with support 144704A1, item 46

1шт.
