(9F-06) - STRAW SPREADER SHIELDS AND DRIVE

Запчасти Case IH 1660 (9F-06) - STRAW SPREADER SHIELDS AND DRIVE (19) - STRAW SPREADER & CHOPPER

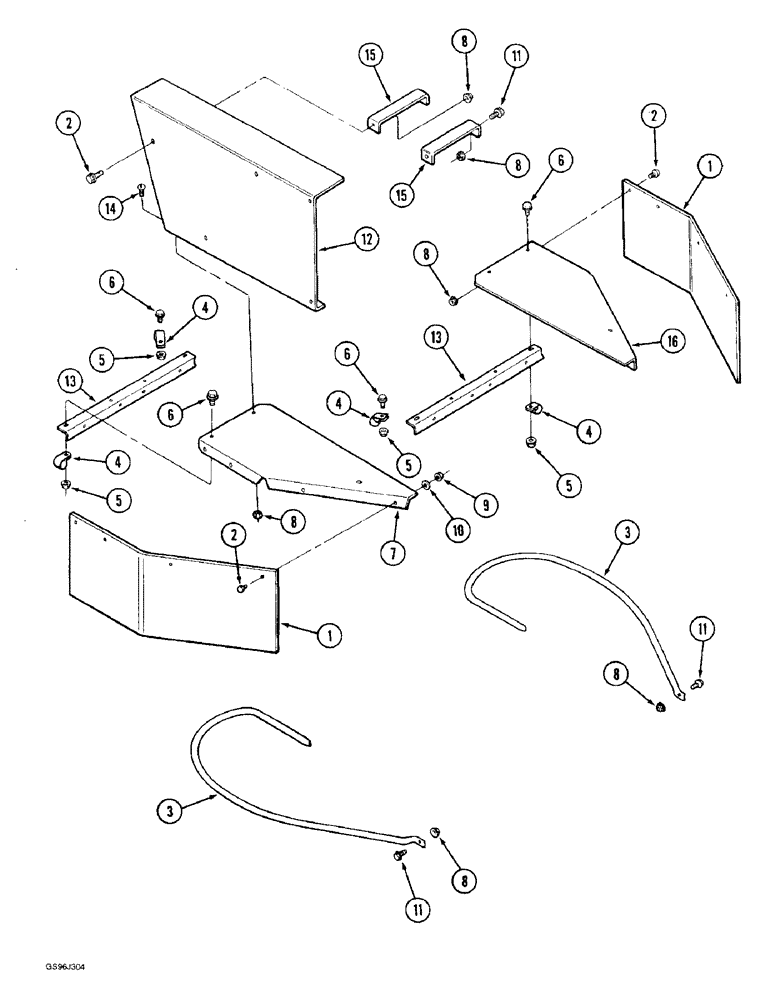

Схема запчастей Case IH 1660 - (9F-06) - STRAW SPREADER SHIELDS AND DRIVE (19) - STRAW SPREADER & CHOPPER
15
3
16
6
10
5
4
14
4
1
13
2
5
3
4
8
8
8
12
5
11
15
2
4
5
13
6
6
11
8
9
8
11
6
8
2
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1308916C2

SHIELD

- side

2шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

3

1308912C3

PIPE

- shield

2шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

4шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

7

1308915C4

SUPPORT

- straw spreader, right-hand shield

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

10

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

8шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

12

1309121C3

SUPPORT

- drive shield

1шт.

13

1308913C1

SUPPORT

- straw spreader shield

2шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

15

1309354C1

SUPPORT

CHANNEL - drive shield

2шт.

16

1308914C4

SUPPORT

- straw spreader, left-hand shield

1шт.
