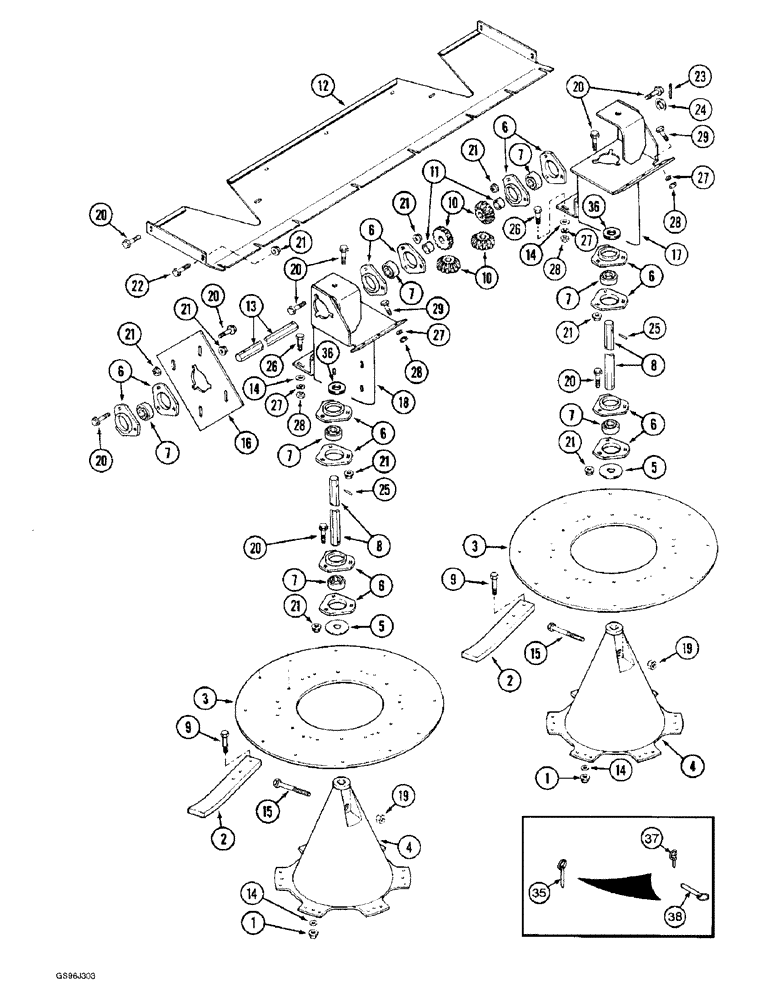

Запчасти Case IH 1660 (9F-04) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

24шт.

2

194198C2

SKID/SHOE

STRAP - rubber

12шт.

3

1322230C1

RETAINER

- strip

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - flat, special

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

- straw spreader, 10-1/2 inch (267 mm) long

2шт.

9

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

24шт.

10

194194C1

GEAR

SET - spreader drive, 14 tooth

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch, cross bar

2шт.

12

195138C5

SUPPORT

- dust shield

1шт.

13

192242C4

SHAFT

BAR - cross, shaft

1шт.

14

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

28шт.

15

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

16

186506C1

SUPPORT

PLATE - bearing

1шт.

17

1345024C1

SUPPORT

- spreader drive, left-hand (Replaces support 1317897C2)

1шт.

18

1345025C1

SUPPORT

- speader drive, right-hand (Replaces support 1317898C1)

1шт.

19

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

28шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

7шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

35

1319303C1

PIN

- spreader retaining, no longer used, order pins A33497 and 120270A2, items 37 and 38

2шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

37

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock

2шт.

38

120270A2

PIN,9.52mm OD x 78mm L

- lock

2шт.
