Запчасти Case IH 1660 (9E-30) - UNLOADER UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER

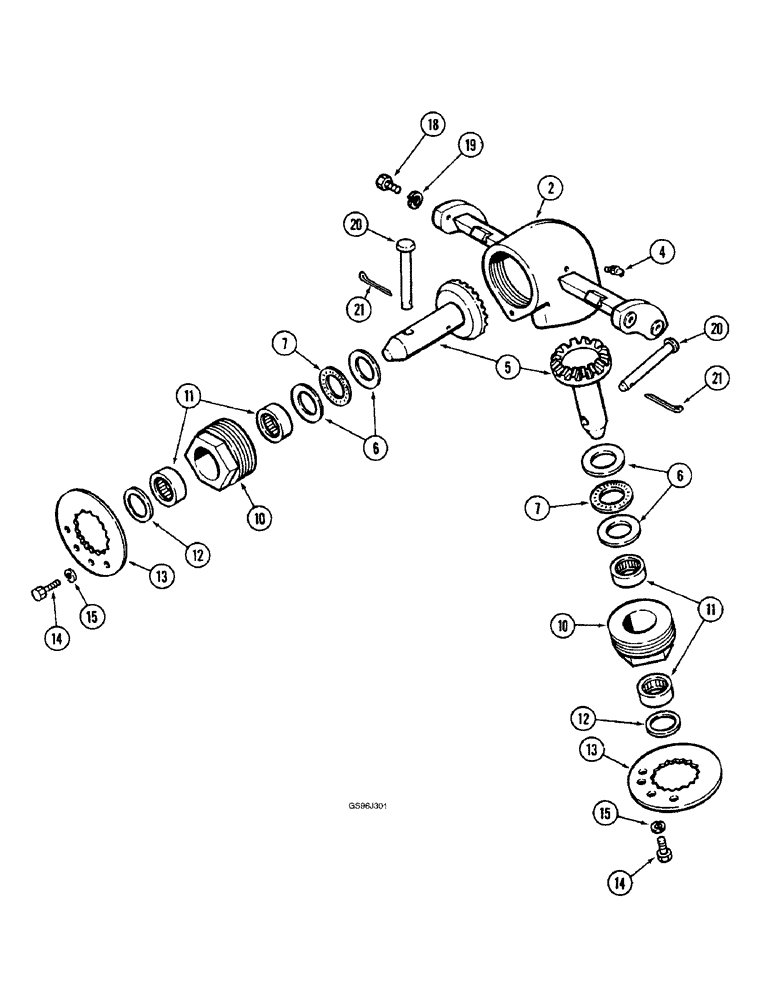

Схема запчастей Case IH 1660 - (9E-30) - UNLOADER UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER
6
11
13
18
13
10
19
12
20
14
7
14
12
5
21
15
11
15
21
20
6
4
7
2
10

Артикул

Название

Примечание

Количество

1324931C91

HOUSING

ASSEMBLY - unloader upper gear, Includes: Ref. 2 - 15

1шт.

1324931C91R

REMAN-GEARBOX

1660 PRIOR TO S/N JJC0038346 (1/86-12/92)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - upper gear, order housing assembly 1324931C91

1шт.

4

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

5

1324929C1

GEAR

- unloader, upper housing

2шт.

6

607147R1

WASHER

WASHER - bearing

4шт.

7

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust

2шт.

10

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

HOUSING ASSEMBLY - gear bearing, Includes: Ref. 11 - 12

2шт.

11

D66348

NEEDLE BEARING,Needle, 34.92mm ID x 41.27mm OD x 12.7mm W

BEARING - needle

2шт.

12

179014C91

OIL SEAL

- bearing housing oil

1шт.

13

178138C1

RETAINER

- gear housing

2шт.

14

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

1327766C2

PIN,12.7mm OD x 88.9mm L

- unloader gear

2шт.

21

132-1216

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

2шт.

Выбрано товаров: 18
