Запчасти Case IH 1660 (9E-24) - UNLOADER SUPPORTS (17) - GRAIN TANK & UNLOADER

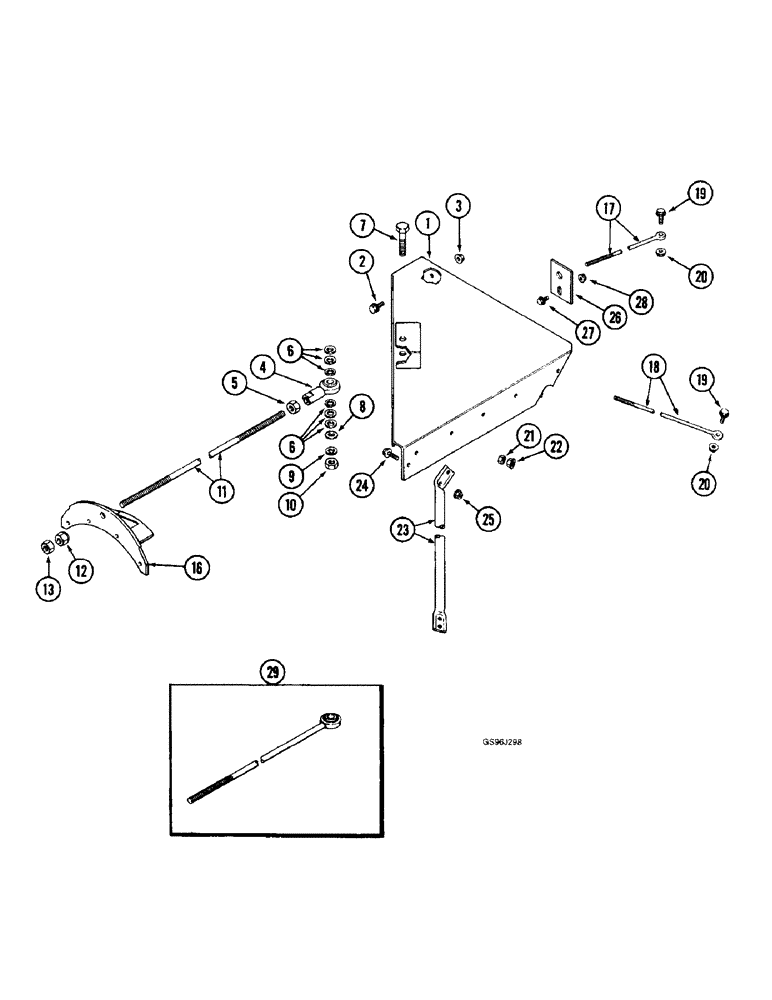

Схема запчастей Case IH 1660 - (9E-24) - UNLOADER SUPPORTS (17) - GRAIN TANK & UNLOADER
26
20
17
4
16
18
7
5
1
3
19
23
25
24
29
21
8
13
20
2
6
28
19
12
11
22
27
9
6
10

Артикул

Название

Примечание

Количество

1

1327529C2

BRACKET

SUPPORT - rod anchor

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

9шт.

3

231-5146

FLANGE NUT,3/8"-16

9шт.

4

1979616C2

ROD

- unloader anchor support, if equipped

1шт.

5

425-1110

NUT,5/8"-18, G5

If equipped 5/8"-18, G5

1шт.

6

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

6шт.

7

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

1979616C2

ROD

- unloader anchor support

1шт.

12

554480R1

WHEEL NUT

- hex, special, 5/8 inch NF

1шт.

13

425-1110

NUT,5/8"-18, G5

1шт.

16

1317516C1

SUPPORT TUBE

SUPPORT - anchor support rod

1шт.

17

193625C1

ROD

- unloader front lower

2шт.

18

1979494C1

ROD

- unloader front lower (Replaces rod 193626C1)

1шт.

19

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

23

1338378C1

ROD

BRACE - support, rear (Replaces brace 1327539C2)

1шт.

24

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

186691C1

PLATE

- support rod

3шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

29

1979616C2

ROD

- unloader anchor support, if equipped

1шт.

Выбрано товаров: 27
