Запчасти Case IH 1660 (9E-18) - LOWER GRAIN TANK UNLOADER (17) - GRAIN TANK & UNLOADER

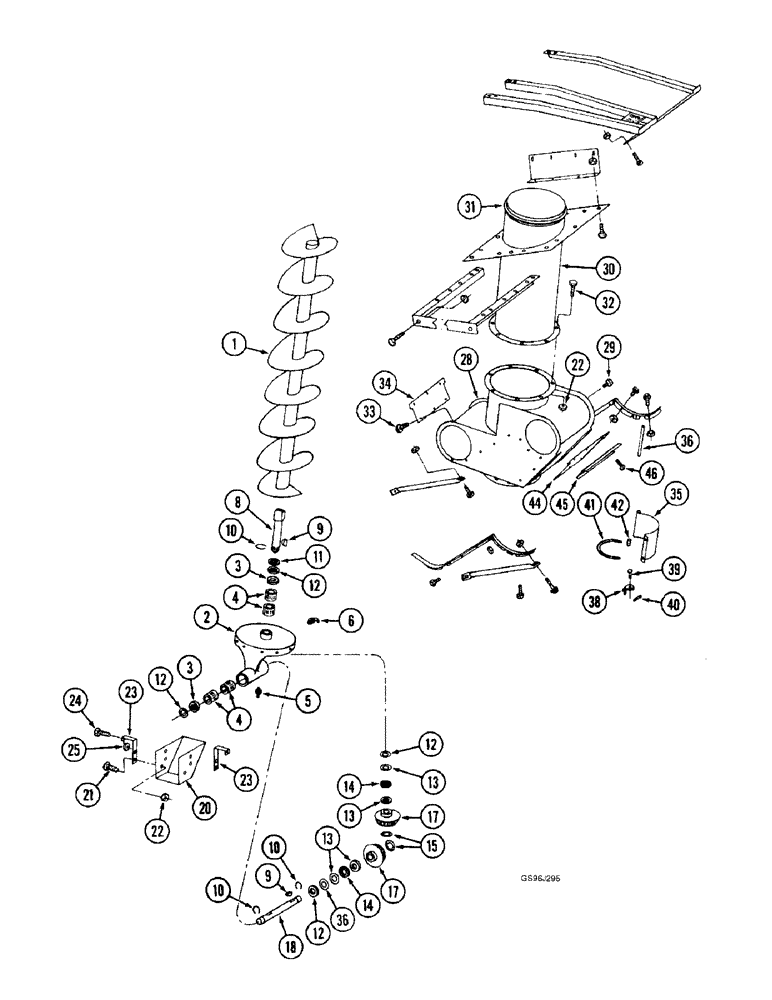

Схема запчастей Case IH 1660 - (9E-18) - LOWER GRAIN TANK UNLOADER (17) - GRAIN TANK & UNLOADER
14
1
2
5
9
46
3
6
33
21
44
35
15
10
9
11
23
8
18
45
14
12
41
12
13
30
36
4
23
32
39
13
22
20
3
42
31
22
40
29
13
10
25
17
24
36
10
38
28
17
12
12
34
4

Артикул

Название

Примечание

Количество

1

192835C1

AUGER

- unloader, vertical

1шт.

2

1327976C92

HOUSING

ASSEMBLY - drive, auger, Includes: Ref. 3 and 4

1шт.

3

157724C91

OIL SEAL

- oil, bearing

2шт.

4

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING - needle

4шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

8

1327739C1

SHAFT

- auger, upper

1шт.

9

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

3шт.

10

A21619

CIRCLIP

RING - snap, shaft

3шт.

11

183490C1

WASHER

WASHER - shaft, upper

1шт.

12

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

5шт.

13

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

- flat, 1-13/32 x 2 x 3/32 inch

1шт.

14

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust

2шт.

15

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

- flat, 1-13/32 x 2 x 1/32 inch

1шт.

17

186517C1

GEAR-SET

GEAR SET - auger, set of two

1шт.

18

1327738C2

SHAFT

- horizontal, unloader

1шт.

20

186137C2

SUPPORT

SHIELD - drive gear

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

23

186138C1

SUPPORT

- shield

2шт.

24

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

7шт.

28

192475C3

HOUSING

- unloader, lower, unloader

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

37шт.

30

1338394C1

TUBE

ASSEMBLY - auger, vertical (Replaces tube 192830C92), Includes: Ref. 31

1шт.

See service bulletin on this part. S/N may affect if you need a 1338394C1 or a 192830C92.

1шт.

31

178134C2

RING

- tube

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

34

191087C1

PLATE

COVER - unloader housing, front, bottom

1шт.

35

1970539C1

FLAP

DOOR - auger, lower, includes decal (Replaces door 195329C1)

1шт.

36

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot, door

1шт.

There are two #36's shown in picture. The #36 on the bottom of the page shown with 1327738c2 shaft should be 188446c1 (washer). Same type of setup shown in 1440 catalog.

1шт.

38

155909C1

LATCH

- door

1шт.

39

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

40

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

41

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U-type, door

1шт.

42

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

44

191110C1

COVER

COVER - unloader housing, rear, bottom

1шт.

45

192834C1

CHANNEL

- support

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

Выбрано товаров: 41
