Запчасти Case IH 1660 (2-19A) - ETHER START (01) - ENGINE

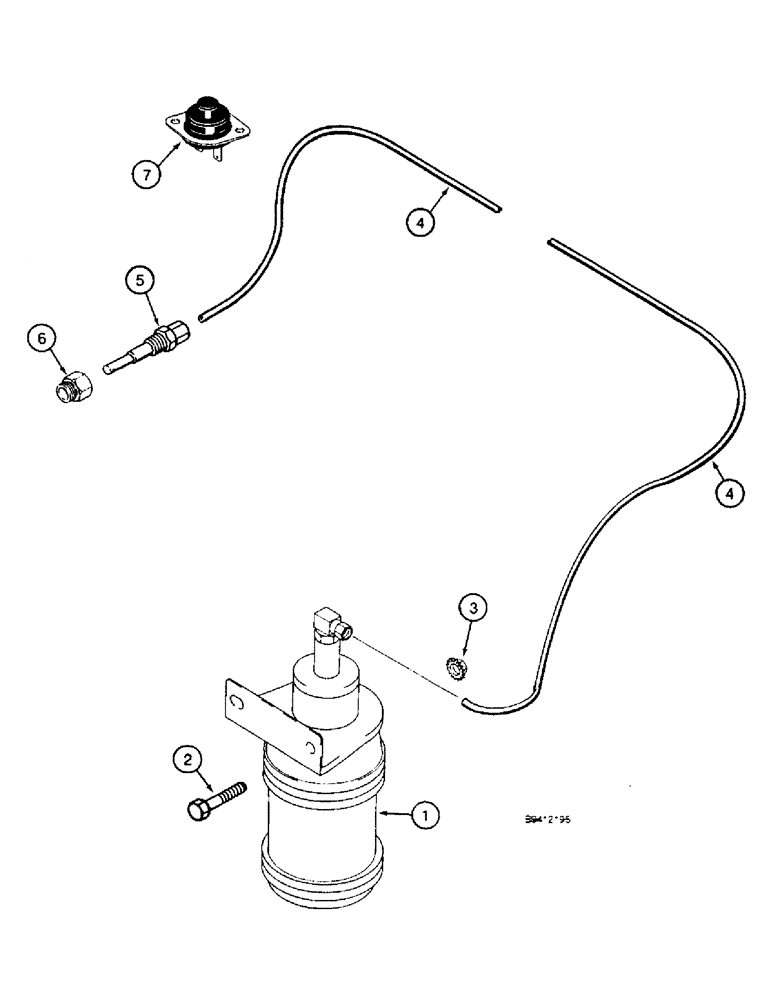

Схема запчастей Case IH 1660 - (2-19A) - ETHER START (01) - ENGINE
4
1
4
5
6
2
3
7

Артикул

Название

Примечание

Количество

1

185552A2

SOLENOID

ASSEMBLY - ether injection, 12 volt (Replaces solenoid assembly 185552A1)

1шт.

1a

190752A1

HOUSING

CANISTER - ether start, not shown

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

86829C1

PLASTIC-RUBBER TUBE,0.125" OD x 14" L

TUBE - solenoid to nozzle, 14 inch (356 mm) long, cut from bulk tubing 1954063CX

1шт.

5

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

6

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT

1шт.

7

453453C1

SWITCH

- ether start, push button

1шт.

1954063CX

TUBE

- bulk, 1/8 (3) OD x 1200 inch (30480 mm) long, sold by the foot

1шт.

Выбрано товаров: 9
