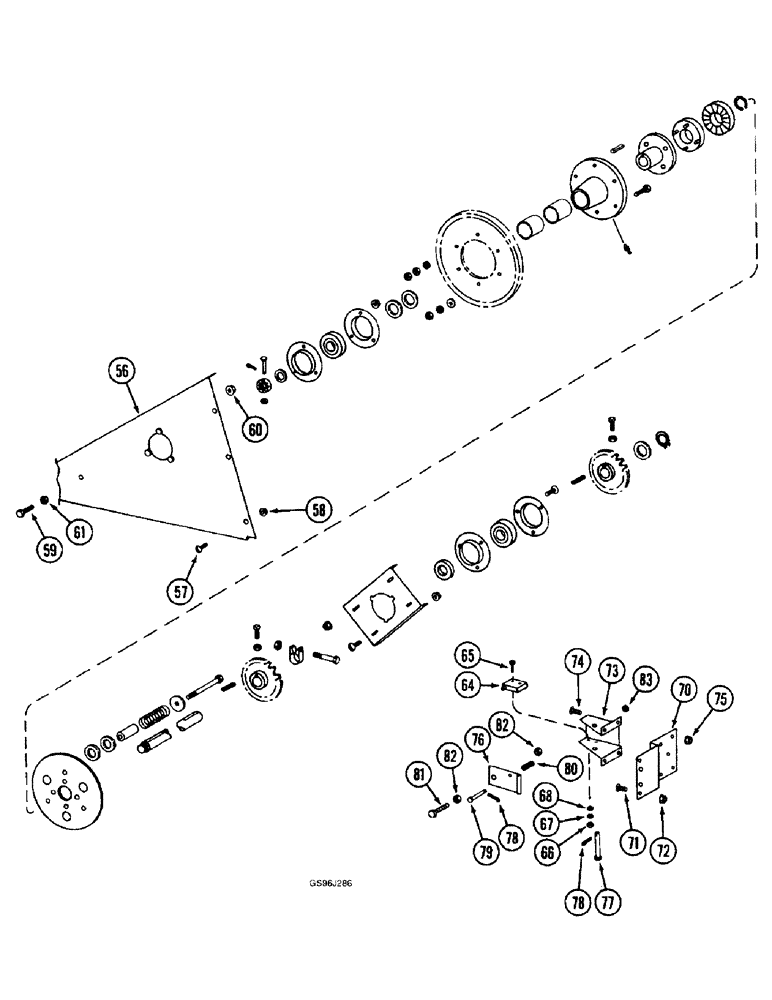

Запчасти Case IH 1660 (9D-32) - ELEVATOR DRIVE JACKSHAFT, (CONTD) (16) - GRAIN ELEVATORS & AUGERS
№
Артикул
Название
Примечание
Количество
56
1317435C1
SUPPORT
- jackshaft bearing, inner
1шт.
57
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
6шт.
58
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
6шт.
59
154273C1
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
- hex, self-locking, special, 3/8 NC x 1 inch
1шт.
60
231-5146
FLANGE NUT,3/8"-16
1шт.
61
329-146
JAM NUT,Jam, 3/8"-16, G5
1шт.
64
574649R91
SWITCH
- micro, elevator, if equipped
1шт.
65
440-10616
SCREW,Cross Pan Hd, #6-32 x 1"
If equipped Cross Pan Hd, #6-32 x 1"
2шт.
66
225-14106
NUT,#6-32
If equipped #6-32
2шт.
67
492-11006
LOCK WASHER,#6
Washer, Lock, , If equipped #6
2шт.
68
95-81108
WASHER,#6
- flat, 5/32 x 3/8 x 3/64 inch (Replaces washer 103337)
2шт.
70
185138C2
SUPPORT
- elevator bracket, if equipped
1шт.
71
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch, if equipped
2шт.
72
231-5146
FLANGE NUT,3/8"-16
If equipped Flg, USR, 3/8"-16
2шт.
73
167323C1
SUPPORT
- auger alarm switch, if equipped
1шт.
74
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4", if equipped
4шт.
75
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC, if equipped
4шт.
76
167324C1
HINGE
STRIP - auger alarm switch, if equipped
1шт.
77
439-1440
HEADED PIN,1/4" x 2 1/2"
PIN - headed, 1/4 x 2-1/2 inch, grade 2, if equipped
1шт.
78
432-816
COTTER PIN,1/8" x 1"
if equipped 1/8" x 1"
2шт.
79
23099R1
HEADED PIN,5/16" x 3"
PIN - headed, 5/16 x 3 inch, if equipped
1шт.
80
M296
SPRING
- switch, if equipped
1шт.
81
19765R1
SCREW
BOLT - weld, 3/8 NC x 1-3/4 inch, if equipped
1шт.
82
425-106
NUT,3/8"-16, Cl 5
If equipped 3/8"-16, G5
2шт.
83
495-81006
WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk
- flat, 17/64 x 3/4 x 1/16 inch, if equipped
1шт.
Выбрано товаров: 25
