Запчасти Case IH 1660 (9D-24) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS

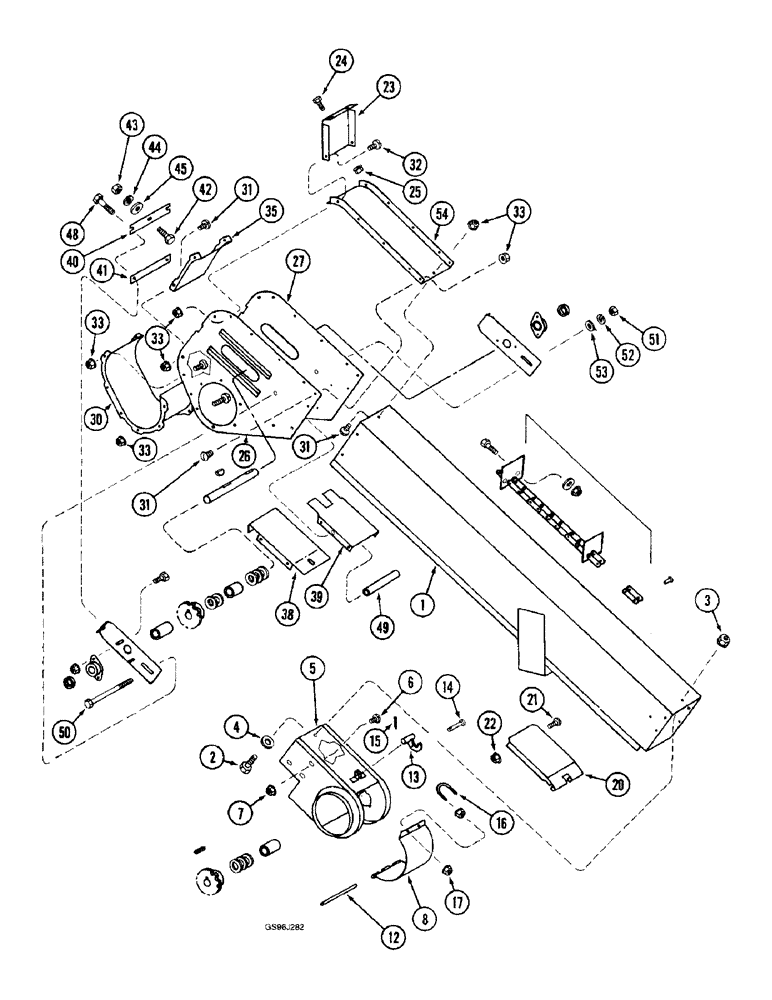

Схема запчастей Case IH 1660 - (9D-24) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS
41
32
48
27
20
5
24
30
42
33
12
8
33
31
23
7
45
4
54
52
16
53
25
31
51
3
43
15
22
49
31
33
1
2
40
14
44
33
38
39
17
26
13
35
50
6
21

Артикул

Название

Примечание

Количество

1

191778C2

ELEVATOR TUBE,85.08" Length

HOUSING - elevator

1шт.

2

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

8шт.

5

191771C1

BOOT

- elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

8

156910C1

DOOR

- boot, non-perforated

1шт.

8

174193C1

DOOR

- boot, perforated

1шт.

12

U17024

PIN

- door

1шт.

13

155909C1

LATCH

- door

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

15

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

13-14176

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT - hex lock, 1/4 inch NC

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

195201C1

SUPPORT

- upper

2шт.

24

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

26

181366C1

SIDE PLATE

COVER - head, left-hand

1шт.

27

181367C1

SIDE PLATE

COVER - head, right-hand

1шт.

30

188119C1

TROUGH

- head

1шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

11шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

35шт.

35

191776C1

COVER

COVER - head

1шт.

38

191782C1

SUPPORT

COVER - head, lower

1шт.

39

181327C1

BOTTOM

COVER - head, lower

1шт.

40

181376C1

CLAMP

- tightener

1шт.

41

181375C1

SUPPORT

BAR - tightener

1шт.

42

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

43

425-106

NUT,3/8"-16, Cl 5

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

48

667486R1

BOLT

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

49

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

1шт.

50

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2

1шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

53

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

54

191783C1

TOP COVER

COVER - head, top

1шт.

Выбрано товаров: 43
