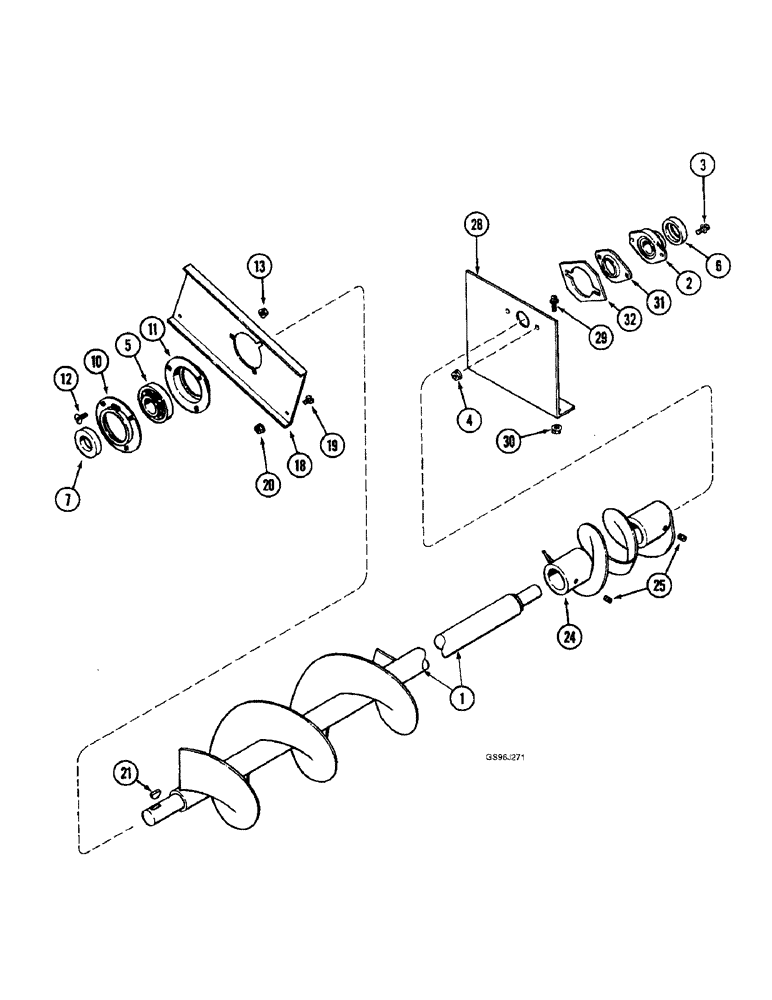

Запчасти Case IH 1660 (9D-02) - HORIZONTAL GRAIN DELIVERY AND DISTRIBUTOR AUGER (16) - GRAIN ELEVATORS & AUGERS

1

1318912C3

AUGER

- delivery, horizontal

1шт.

2

214490C91

BALL BEARING,25.4mm ID

BEARING - ball, left-hand

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

156011C92

BALL BEARING

BEARING - ball, right-hand

1шт.

6

455102R21

COLLAR

- locking, bearing, includes set screw, left-hand

1шт.

7

557995R11

COLLAR

- bearing, with set screw, right-hand

1шт.

10

670375R11

FLANGE

- bearing, right-hand

1шт.

11

939461R1

FLANGE

- bearing, right-hand

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

18

1321129C1

PLATE

SUPPORT - bearing, auger, right-hand

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

162103C91

AUGER

- distributor

1шт.

25

83-1448

SET SCREW,7/16" - 14 x 1/2"

SCREW - set, hex socket, 7/16 NC x 1/2 inch, cup point (Replaces screw 102604)

2шт.

28

1317947C2

LARGE PLATE

SUPPORT - bearing, auger, left-hand

1шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

31

50591

FLANGE,52mm

- bearing

2шт.

32

1979640C2

LARGE PLATE

SPACER - bearing flange

2шт.
