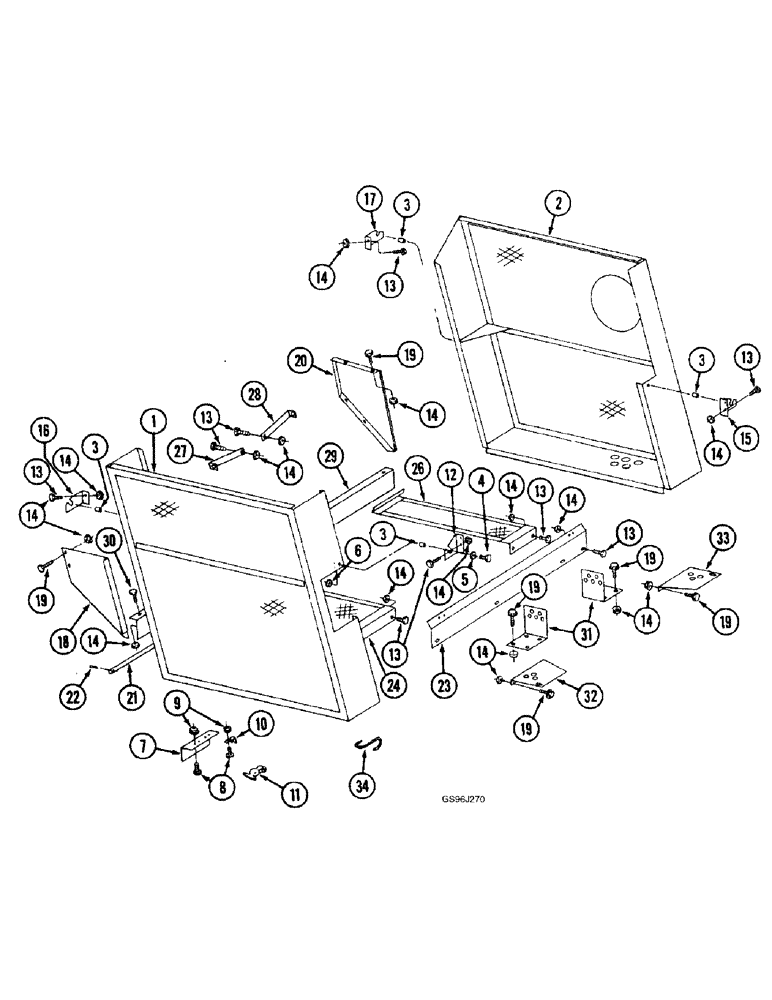

Запчасти Case IH 1660 (9C-22) - FAN SHIELDS (15) - BEATER & CLEANING FANS

1

182824C3

GUARD ASSY.

SHIELD - fan drive, left-hand

1шт.

2

182846C5

HOUSING

SHIELD - fan inlet, right-hand

1шт.

3

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

4шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

4шт.

7

181496C1

SHIELD

GUARD - latch

2шт.

8

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

6шт.

9

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

10

L105124

LATCH HOOK

HOOK - fan shield latch bracket

2шт.

11

494307C1

LATCH

HOOK - hold down, latch

2шт.

12

182858C2

SUPPORT

- fan shield rear, left-hand

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

14шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

26шт.

15

182859C2

SUPPORT

- fan shield, rear, right-hand

1шт.

16

182860C1

ANGLE

- front left-hand shield

1шт.

17

182861C1

ANGLE

- shield, right-hand front

1шт.

18

182863C1

SHIELD

- left-hand front

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

20

182866C1

SHIELD

- right-hand front

1шт.

21

182811C1

ROD

- fan shield

1шт.

22

432-1216

COTTER PIN,3/16" x 1"

4шт.

23

182822C1

SUPPORT

- bottom screen, rear retainer

4шт.

24

182817C2

GUARD ASSY.

SHIELD - lower fan, left-hand

1шт.

26

182813C1

GUARD ASSY.

SHIELD - lower fan, right-hand

1шт.

27

182874C1

SUPPORT

- fan bearing, left-hand

1шт.

28

182875C1

SUPPORT

- fan bearing, right-hand

1шт.

29

182882C1

SUPPORT ASSY.

SUPPORT - axle to auger bed seal, for field installed fan shields

1шт.

29

182883C1

SUPPORT

- axle to auger bed seal, for JI Case installed fan shields

1шт.

30

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

31

182809C2

GUARD

SHIELD - intake lower rear

2шт.

32

182805C1

SHIELD

- intake upper rear, left-hand

1шт.

33

182806C1

SHIELD

- intake upper rear, right-hand

1шт.

34

1302723C2

HOOK

- inlet shield

2шт.
