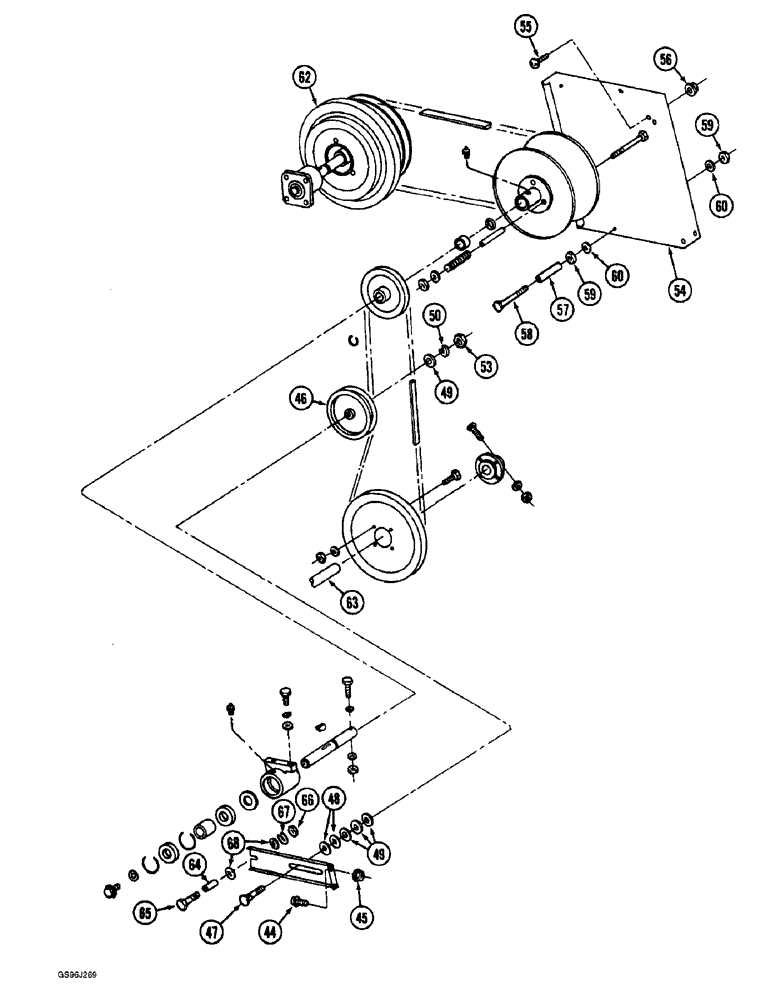

Запчасти Case IH 1660 (9C-20) - SLOW SPEED FAN DRIVE, (CONTD) (15) - BEATER & CLEANING FANS

43

185270C1

SUPPORT

- idler, not shown

1шт.

44

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

46

564745R91

PULLEY

- idler, 5-1/2 inch OD

1шт.

47

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage, 5/8 NC x 2-1/2 inch (Replaces bolt 598820R1)

1шт.

48

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

2шт.

49

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

53

425-1010

NUT,5/8"-11, G5

1шт.

54

181372C1

SHIELD

- slow speed fan drive

1шт.

55

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

57

PO22778

SPACER,1/4" Pipe x 2"

- pipe, 1/4 x 2 inch

2шт.

58

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

59

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

60

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

62

REF

INSTRUCTION

DRIVE - cleaning fan, parts list Fig. 9C-12

1шт.

63

REF

INSTRUCTION

SHAFT - cleaning fan,parts list Fig. 9C-10

1шт.

64

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

1шт.

65

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

66

425-106

NUT,3/8"-16, Cl 5

1шт.

67

492-11038

LOCK WASHER,3/8"

1шт.

68

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
