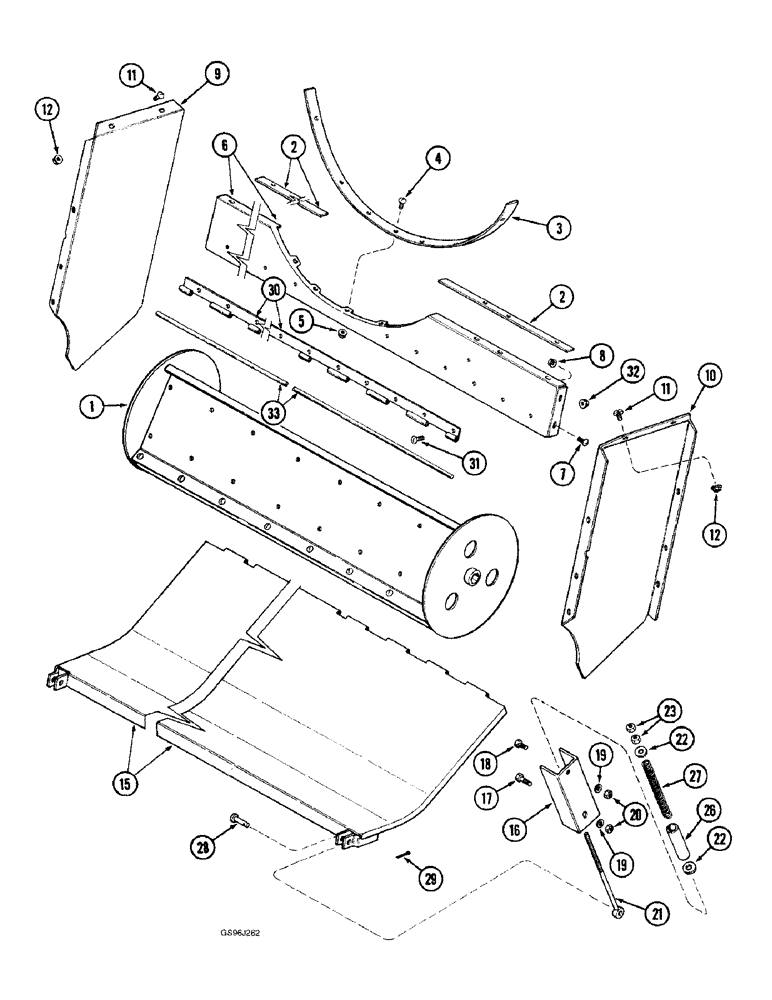

Запчасти Case IH 1660 (9C-06) - DISCHARGE BEATER BOTTOM, RICE COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS

1

REF

INSTRUCTION

BEATER - discharge, parts list Fig. 9C-02

1шт.

2

182891C1

PLATE

- bulkhead filler, rear

2шт.

3

182898C1

SUPPORT

PLATE - filler, rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

182929C1

SUPPORT

- cage, lower rear

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

8

231-5146

FLANGE NUT,3/8"-16

10шт.

9

182946C1

DEFLECTOR

- discharge, left-hand

1шт.

10

182947C1

DEFLECTOR

- discharge, right-hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

12шт.

12

231-5146

FLANGE NUT,3/8"-16

12шт.

15

182924C2

DOOR

PAN - beater

1шт.

16

182896C1

SUPPORT

- bottom spring

2шт.

17

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

18

186917C1

SCREW

BOLT - hex, special, 3/8 NC x 3/4 inch

2шт.

19

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

20

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

EYEBOLT - beater bottom

2шт.

22

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

182981C1

SPACER

SLEEVE - spring

2шт.

27

391745R1

SPRING

- beater bottom

2шт.

28

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch, grade 2

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

182894C1

HINGE

- pan

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

32

231-5146

FLANGE NUT,3/8"-16

10шт.

33

182977C1

ROD

- lower hinge

1шт.
