Запчасти Case IH 1660 (9B-50) - CHAFFER SIEVE, (CONTD) (14) - ROTOR, CONCANVES & SIEVE

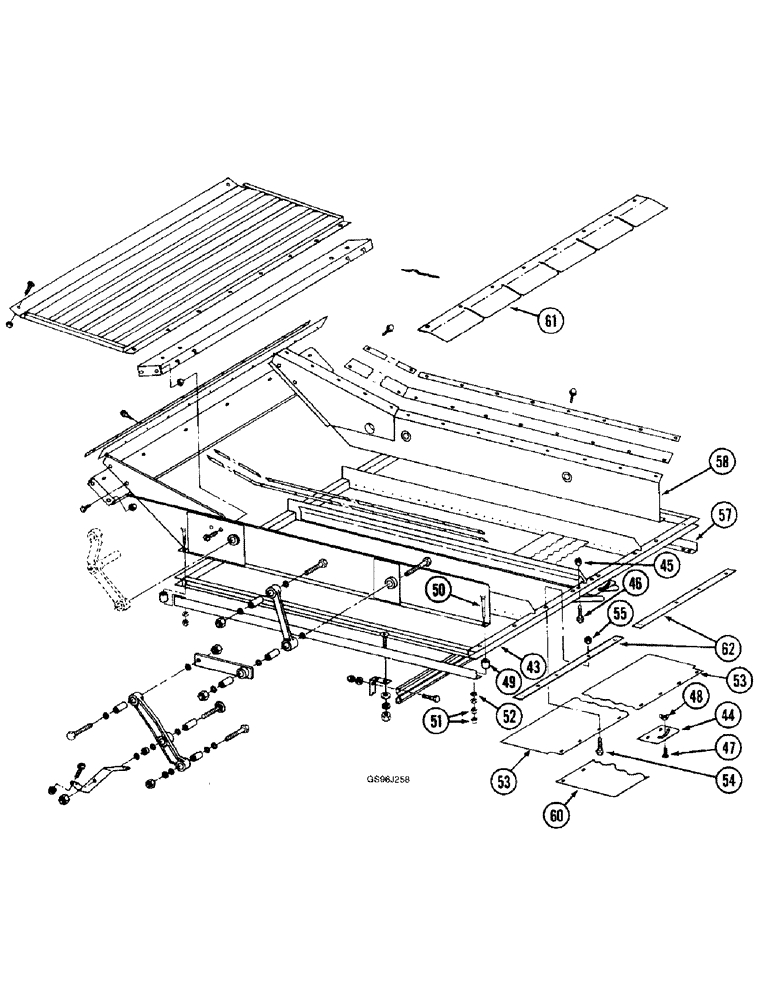

Схема запчастей Case IH 1660 - (9B-50) - CHAFFER SIEVE, (CONTD) (14) - ROTOR, CONCANVES & SIEVE
50
57
43
53
58
54
45
55
62
49
46
48
53
60
51
47
44
61
52

Артикул

Название

Примечание

Количество

43

1330685C2

SIEVE

- 1-5/8 closed slat chaffer, standard for corn, optional for rice and grain (Replaces sieve 1330685C1)

1шт.

43

1330684C2

SIEVE

- 1-1/8 adjustable chaffer, standard for rice and grain (Replaces sieve 1330684C1)

1шт.

43

1330686C2

SIEVE

- 1-5/8 corn chaffer, standard for corn, optional for rice and grain Replaces sieve 1330686C1)

1шт.

43

138634A1

GRAIN SIEVE

SIEVE - 1-5/8 extended close slat chaffer, long cleaning system (Replaces sieve 1957314C2)

1шт.

43

138635A1

GRAIN SIEVE

SIEVE - 1-5/8 adjustable chaffer, long cleaning system (Replaces sieve 1957315C2)

1шт.

43

1319092C4

GRAIN SIEVE

SIEVE - Peterson chaffer (Replaces sieve 1319092C3)

1шт.

43

138636A1

GRAIN SIEVE

SIEVE - Peterson chaffer, long cleaning system (Replaces sieve 1970516C1)

1шт.

44

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

45

231-5146

FLANGE NUT,3/8"-16

2шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

1шт.

48

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

49

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch, sieve support, rear

2шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

52

492-11038

LOCK WASHER,3/8"

2шт.

53

195186C2

SEAL

SEAL - chaffer

1шт.

54

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

55

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

56

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

8шт.

57

186370C1

ANGLE

- chaffer support, right-hand

1шт.

58

1979203C1

RAIL

- chaffer, right-hand (Replaces rail 185431C4)

1шт.

59

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, also see shaker shaft and auger drive, see Fig. 9B-42

2шт.

60

1302784C1

STRIP

- chaffer extension flap

1шт.

61

1319258C1

COVER

- chaffer finger

1шт.

Part of Parts Accessory Kit, P/N 1319278C91

1шт.

62

1338343C2

RETAINER

- rear chaffer seal, lower left-hand (Replaces retainer 1338343C1)

1шт.

62

1338344C2

RETAINER

- rear chaffer seal, lower right-hand (Replaces retainer 1338344C1)

1шт.

1319278C91

PACKAGE

KIT - parts accessory, alfalfa, Includes: Ref. 61

1шт.

Выбрано товаров: 29
