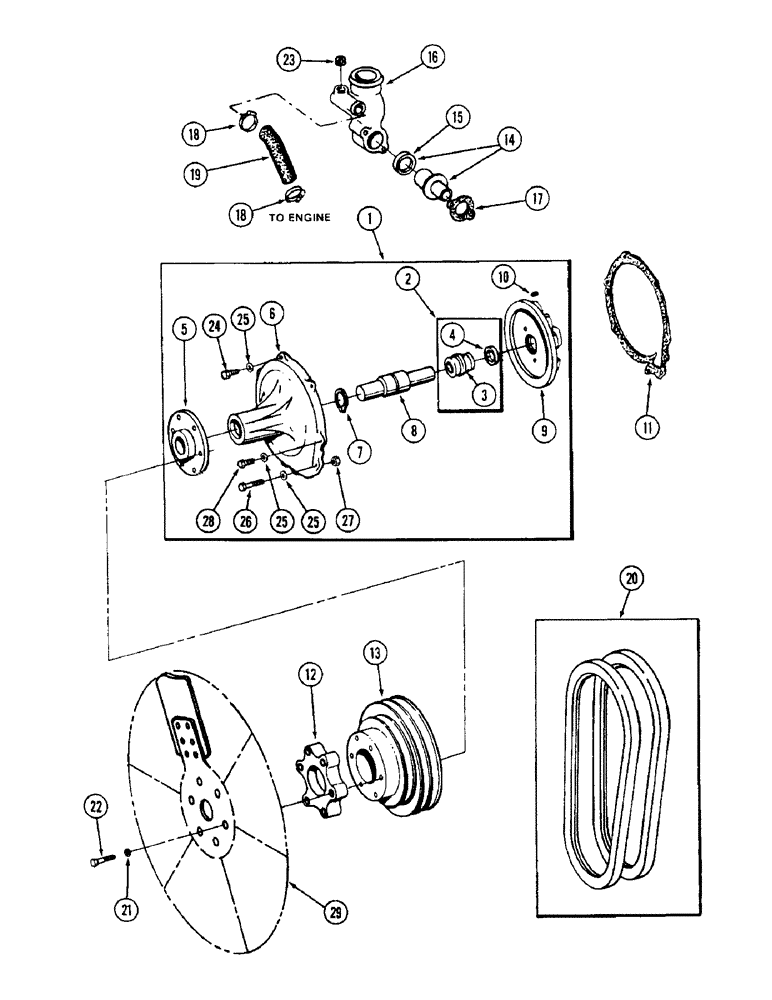

Запчасти Case IH 1660 (2-10) - FAN, BELTS, THERMOSTAT AND WATER PUMP, DT466B ENGINE (01) - ENGINE

1

673162C94

PUMP, WATER

PUMP ASSEMBLY - water, with hub pulley, new

1шт.

1

749908C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water, with hub pulley, remanufactured

1шт.

1

1928143C1

CORE-WATER PUMP

Return Number

1шт.

2

687161C92

KIT

KIT - water pump seal, used with 676320C1 impeller only, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - pump, order kit 687161C92

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - pump, order kit 687161C92

1шт.

5

675033C1

HUB

HUB - pulley, water pump

1шт.

6

675806C3

HOUSING

HOUSING - water pump bearing

1шт.

7

100-21187

SNAP RING,1.875", Int, #187

Ring, Snap, 1.875", Int, #187

1шт.

8

627785C91

BEARING ASSY,47.63mm OD x 177.8mm L

SHAFT - pump, includes bearing

1шт.

1810366C92

TURBINE

KIT - impeller, Includes: seal kit, O-ring and Ref. 9

1шт.

1810505C91

GASKET KIT

KIT - seal

1шт.

1802812C1

O-RING

O-RING - 1-27/64 x 1/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

IMPELLER - water pump, order kit 1810366C92

1шт.

9

676320C1

IMPELLER

KIT - impeller, used with kit 687161C92, no longer available, order kit 1810366C92 above

1шт.

10

680481C1

PIN

PIN - dowel, 1/4 x 5/8 inch

2шт.

11

675808C2

GASKET,0.79mm Thk

GASKET - water pump

1шт.

12

673013C1

SPACER

SPACER - fan

1шт.

13

691562C1

PULLEY

PULLEY - fan and water pump, triple groove

1шт.

14

684739C1

THERMOSTAT

THERMOSTAT ASSEMBLY - coolant, 190 degree Fahrenheit, Includes: Ref.15

1шт.

15

615175C91

SEAL

SEAL - thermostat

1шт.

16

689061C1

HOUSING

HOUSING - thermostat

1шт.

17

1342836C1

GASKET

GASKET - thermostat housing

1шт.

18

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

19

672242C2

HOSE

Thermostat

1шт.

20

537072R92

SET OF BELTS,64.75" L

V-Belt, Fan, Matched set, Used with Motorola alternator

1шт.

20

1979149C1

SET OF BELTS,0.60" W x 65.50" L

V-Belt, Fan, Matched set, Used with Bosch alternator

1шт.

21

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

22

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

BOLT, Hex, 3/8"-16 x 2 1/4", G8

6шт.

23

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket headless, 3/8 inch PT

1шт.

24

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

25

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

26

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

BOLT, Hex, 3/8"-16 x 3 1/2", G8

2шт.

27

329-106

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

2шт.

28

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8

2шт.

29

84663C1

FAN

BLADE - fan

1шт.
