Запчасти Case IH 1660 (9B-48) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

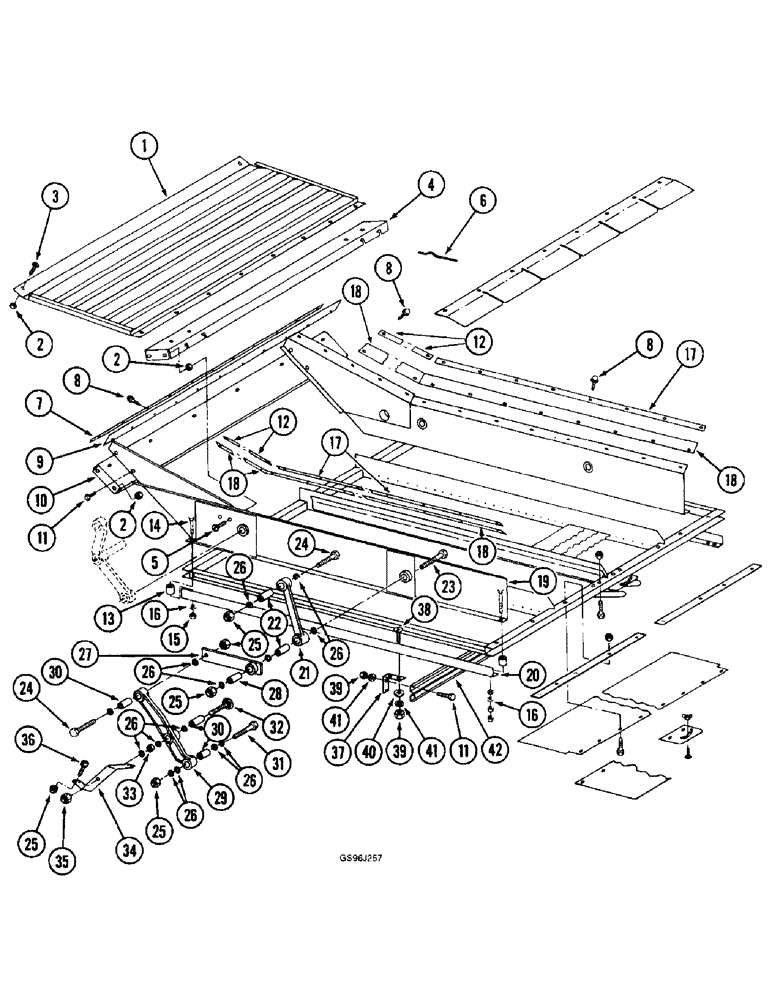

Схема запчастей Case IH 1660 - (9B-48) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE
40
30
1
12
30
26
20
2
8
2
11
37
26
21
17
4
29
5
15
25
28
41
23
9
35
18
12
25
31
26
42
27
14
18
3
17
34
33
13
36
39
24
25
19
18
38
41
18
10
2
25
6
26
39
8
7
32
24
16
16
26
11
22
26
8

Артикул

Название

Примечание

Количество

1

192056C1

GRAIN PAN

PAN - grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

20шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

12шт.

4

192060C1

SUPPORT

- chaffer pan

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short sieve

13шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long sieve

26шт.

7

192048C2

BAR

- front chaffer frame seal (Replaces bar 192048C1)

1шт.

8

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

48шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP - chaffer frame, front

1шт.

10

192044C1

SUPPORT

- chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

12

192052C3

BAR

- chaffer frame seal, short

2шт.

13

186646C1

SPACER,5/8" Tube x 15/16"

- 5/8 x 15/16 inch, front

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

17

192053C2

BAR

- chaffer frame seal

2шт.

18

192051C3

SEALING STRIP

- chaffer frame

2шт.

19

1979202C1

RAIL

- chaffer, left-hand (Replaces rail 185430C4)

1шт.

20

186369C1

ANGLE

- chaffer support, left-hand

1шт.

21

175131C91

ARM ASSY.

ARM ASSEMBLY - rear hanger, Includes: Ref. 22

2шт.

22

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger arm

2шт.

23

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

- hex, 5/8 NC x 6-1/2 inch, grade 8, used with rail 185430C4

2шт.

23

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

Used with rail 1979202C1 Hex, 5/8"-11 x 7", G8

2шт.

24

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

4шт.

25

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

28шт.

27

188010C91

ARM ASSY.

ARM ASSEMBLY - shoe, rear, Includes: Ref. 28

2шт.

28

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe arm

1шт.

29

192941C92

LEVER ASSY.

LEVER ASSEMBLY - shoe, Includes: Ref. 30

2шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe lever

3шт.

31

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

32

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - carriage, 5/8 NC x 4 inch, grade 2

2шт.

33

168250C1

RING

SPACER - shoe and chaffer lever

2шт.

34

193107C2

SUPPORT

- shoe lever, left-hand

1шт.

34

193108C2

SUPPORT

- shoe lever, right-hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

8шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

37

186674C1

ANGLE

- rear deflector

2шт.

38

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

192070C2

CHANNEL

- rear

1шт.

Выбрано товаров: 45
