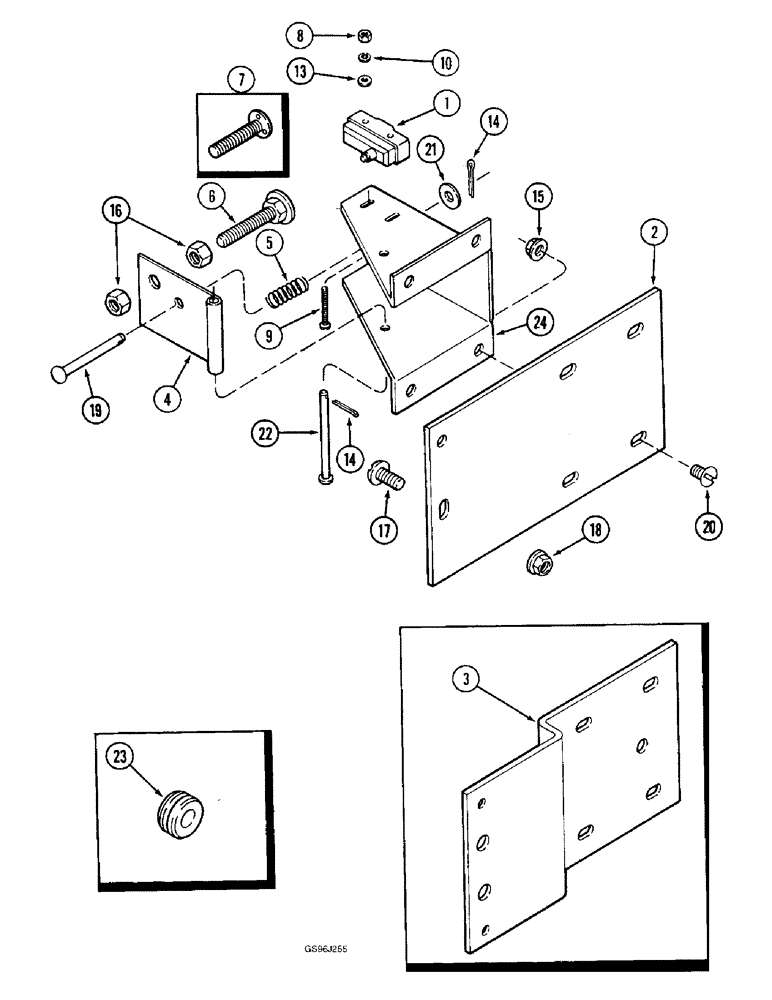

Запчасти Case IH 1660 (9B-44) - AUGER AND ELEVATOR ALARM SWITCH AND SUPPORTS, IF EQUIPPED (14) - ROTOR, CONCANVES & SIEVE

1

574649R91

SWITCH

- micro, and elevator alarm

2шт.

2

1309429C2

SUPPORT

- auger alarm bracket

1шт.

3

185138C2

SUPPORT

- elevator alarm switch bracket

1шт.

4

167324C1

HINGE

STRIP - auger and elevator alarm switch

2шт.

5

M296

SPRING

- alarm switch strap return

1шт.

6

194304C1

STOP

- auger alarm switch

1шт.

7

19765R1

SCREW

BOLT - weld, 3/8 NC x 1-3/4 inch

1шт.

8

225-14106

NUT,#6-32

4шт.

9

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

4шт.

10

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

13

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (Replaces washer 103337)

4шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

18

231-5146

FLANGE NUT,3/8"-16

4шт.

19

439-1440

HEADED PIN,1/4" x 2 1/2"

PIN - headed, 1/4 x 2-1/2 inch, grade 2

2шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

21

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

6шт.

22

23099R1

HEADED PIN,5/16" x 3"

PIN - headed, 5/16 x 3 inch

2шт.

23

117960

GROMMET,5/16" ID x .719" x .188"

- rubber, 5/16 x 23/32 x 7/16 inch

2шт.

24

167323C1

SUPPORT

- auger and elevator alarm switch

2шт.
