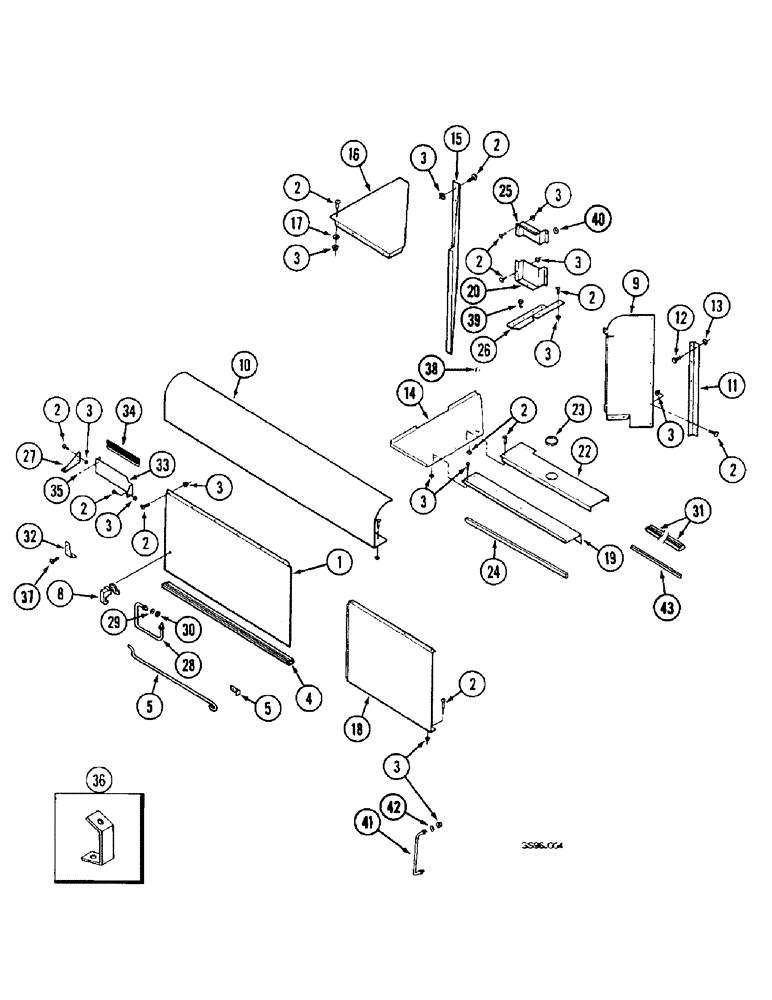

Запчасти Case IH 1660 (2-08) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

84шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

92шт.

4

1319691C1

SEAL

SEAL - bulk, radiator access, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- trim

1шт.

7

183444C1

ROD

- tank lower door, left-hand

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317998C1

DEFLECTOR

- screen chute

1шт.

10

1317758C1

CHUTE (DOWNWARD)

CHUTE - air screen top

1шт.

11

1317999C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

11шт.

14

1970105C2

SHEET

SUPPORT - bottom, rear (Replaces support 1319678C3)

1шт.

15

1317756C2

SUPPORT

- screen chute, rear

1шт.

16

1319681C1

PLATE

SHEET - upper

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

1321305C2

SHEET ASSY.

SUPPORT - front side (Replaces 1321305C1)

1шт.

19

1321306C1

CHUTE (DOWNWARD)

CHUTE - bottom, rear outlet

1шт.

20

1317761C1

SKIRT

- oil cooler

1шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1319704C1

PLATE

SHEET - radiator clean out

1шт.

23

1302758C1

PLUG

- plastic, 89 mm OD, clean out hole

1шт.

24

1321353C2

SEAL - door hinge, 37-1/2 inch (953 mm) long, cut from bulk seal 1338148CX below

1шт.

25

1321091C1

SKIRT

- oil cooler, upper

1шт.

26

1319682C1

PLATE

SUPPORT - lower front, front

1шт.

27

1968548C1

SUPPORT

BRACKET - chute, discharge side, Start Serial: JJC0036001

1шт.

27

1968546C1

SUPPORT

BRACKET - chute, discharge side, Serial Range: -JJC0036001

1шт.

28

1321939C2

ROD

BAR - assist handle

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

30

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10

2шт.

31

1319817C2

SEAL

- radiator door, 25-9/32 inch (642 mm) long, cut from bulk seal 1319691C1 below

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968546C1

SUPPORT

BRACKET - chute, discharge side, Start Serial: JJC0036001

1шт.

33

1968548C1

SUPPORT

BRACKET - chute, discharge side, Serial Range: -JJC0036001

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off (Replaces brush 194231C2)

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch, Start Serial: JJC0036001

2шт.

35

151-553

RIVET,Pop, 1/8" x .337"

Break mandrel Pop, 1/8" x .337", Serial Range: -JJC0036001

2шт.

36

561915R1

BRACKET

- lamp

1шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

38

195800C1

GROMMET

- protective

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

40

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

41

1251832C2

HANDLE

- assist, P.I.N. JJC0036001 and after (Replaces handle 1251832C1)

1шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

43

1321354C2

SEAL

SEAL - radiator, top and bottom, 25 inch (635 mm) long, cut from bulk seal 1315670C3 below

2шт.

1338148CX

SEAL

- bulk, 50 foot (15240 mm) long, sold by the foot

1шт.

1319691C1

SEAL

SEAL - bulk, 46-1/2 inch (1180 mm) long

1шт.

1315670C3

SEAL

SEAL - bulk, 29 inch (738 mm) long

1шт.
