Запчасти Case IH 1660 (9B-30) - VANE (14) - ROTOR, CONCANVES & SIEVE

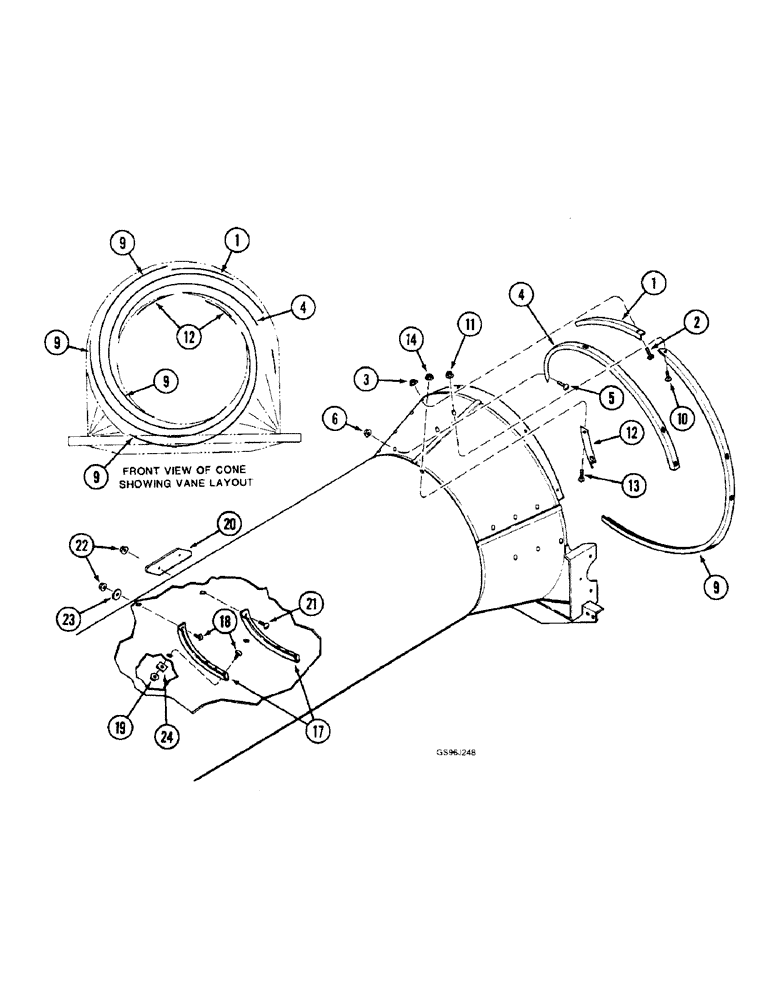

Схема запчастей Case IH 1660 - (9B-30) - VANE (14) - ROTOR, CONCANVES & SIEVE
18
20
12
13
17
24
9
11
9
2
1
19
4
9
23
21
14
6
1
9
12
22
3
10
5
9
4

Артикул

Название

Примечание

Количество

1

186984C1

EXTENSION

VANE - cone extension

2шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

186985C3

SUPPORT

VANE - cone, upper front

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

9

195355C3

GUIDE

VANE - cone, front

4шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

24шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

12

193179C2

VANE

VANE - transport extension

3шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

17

193175C2

GUIDE

VANE - transport

13шт.

18

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head, special

39шт.

19

231-5146

FLANGE NUT,3/8"-16

39шт.

20

1318418C1

BAR

PLATE - vane

6шт.

21

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head, special

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

23

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

- flat, special, 13/32 x 2-1/2 x 5/32 inch

10шт.

24

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

- square, 13/32 x 1-1/2 x 3/16 inch

2шт.

Выбрано товаров: 20
