Запчасти Case IH 1660 (9B-28) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

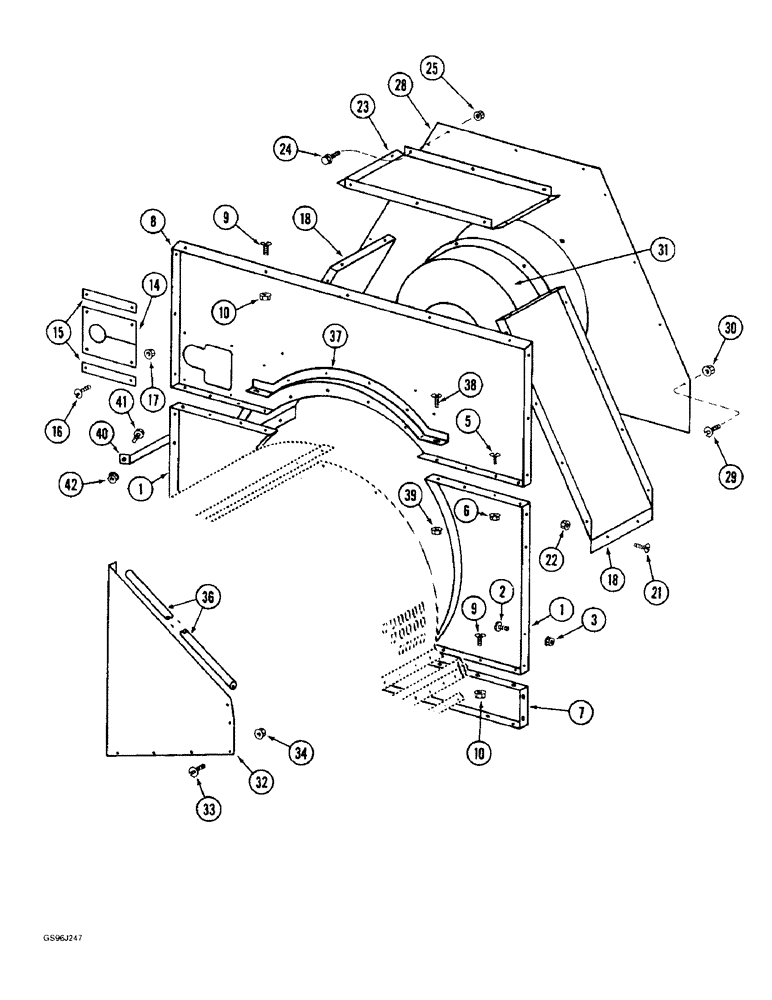

Схема запчастей Case IH 1660 - (9B-28) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE
30
9
33
15
1
29
34
3
37
31
24
18
38
40
32
5
9
23
2
41
16
7
21
10
28
1
22
39
36
18
10
25
42
14
17
6
8

Артикул

Название

Примечание

Количество

1

1338055C1

SUPPORT

- rotor cage, rear (Replaces support 191267C3)

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

16шт.

3

231-5146

FLANGE NUT,3/8"-16

24шт.

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

7

182929C1

SUPPORT

- cage, lower rear

1шт.

8

193168C2

SUPPORT

- rotor, upper rear (Replaces support 192023C2)

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

21шт.

10

231-5146

FLANGE NUT,3/8"-16

21шт.

14

191191C2

GASKET,6.35mm Thk

SEAL - dust

1шт.

15

191192C1

BAR

- dust seal

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

193169C1

SUPPORT

- discharge side

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

23

193170C1

COVER

- discharge top

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

28

193966C1

PLATE

- discharge back

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

31

182545C2

HOUSING

RETAINER - rotor gear housing (Replaces retainer 182545C1)

1шт.

32

191398C2

SHEET

SUPPORT - gear housing inner

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

36

191498C1

SEALING STRIP

SEAL - gear housing support, 20-13/16 inch (528 mm) long

1шт.

37

1308695C1

SUPPORT

- rotor rear upper

1шт.

38

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

7шт.

39

231-5146

FLANGE NUT,3/8"-16

7шт.

40

182634C3

SUPPORT

STIFFENER - cage grate, rear

1шт.

41

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

Выбрано товаров: 36
