Запчасти Case IH 1660 (9B-26) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

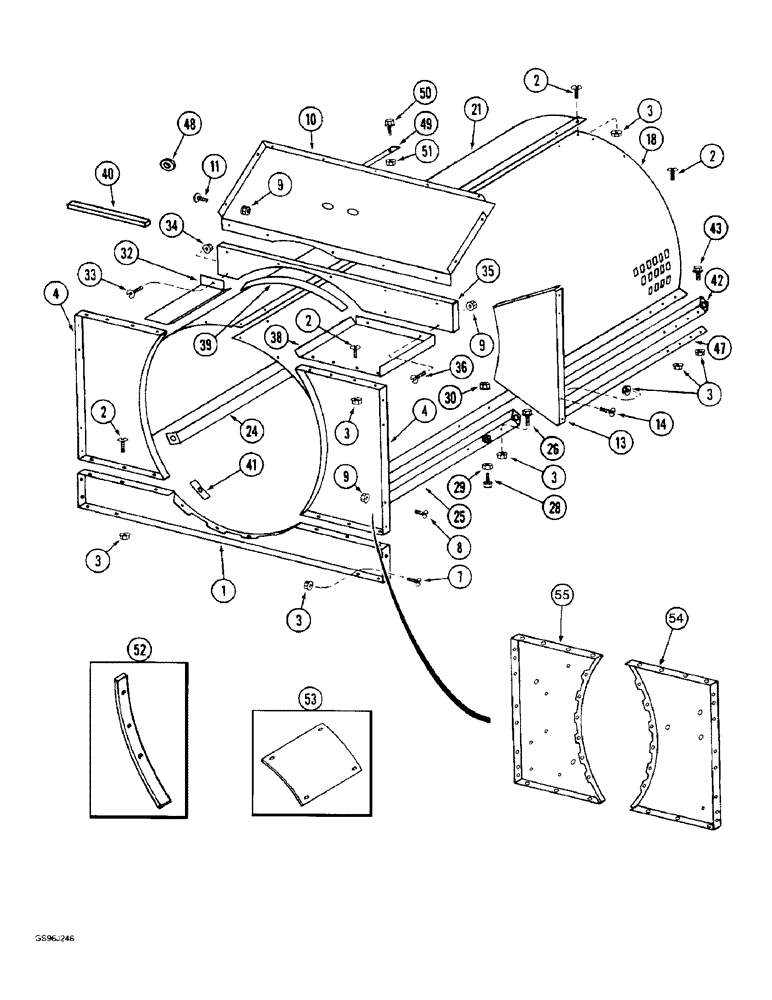

Схема запчастей Case IH 1660 - (9B-26) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE
32
25
34
3
33
10
48
39
49
41
3
13
52
3
43
2
47
24
2
36
42
11
9
14
18
1
35
2
4
26
30
4
54
3
7
53
3
55
28
51
40
9
21
29
2
38
50
8
3
9

Артикул

Название

Примечание

Количество

1

192297C2

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1338055C1

SUPPORT

- rotor cage, left-hand front, no longer available, order supports 1994848C1 and 1994850C1, items 54 and 55

1шт.

4

1338045C1

SUPPORT

- rotor cage, right-hand front

1шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

10

193152C1

SUPPORT

- grain tank, front

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

13

1338056C1

SUPPORT

- rotor cage, left-hand intermediate

3шт.

13

1338044C1

SUPPORT

- rotor cage, right-hand intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

18шт.

18

1318829C1

CAGE

SUPPORT - rotor, left-hand

1шт.

21

1318419C2

CAGE

SUPPORT - rotor, right-hand

1шт.

24

188333C1

SUPPORT

- cage, right-hand

1шт.

25

1309191C1

SUPPORT

- cage, left-hand (Replaces support 1309191C1) (Replaces 185386C1)

1шт.

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

2шт.

26

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

14шт.

28

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

29

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

32

193862C1

SUPPORT

- gear housing inner extension

1шт.

33

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

34

488837C1

SPRING NUT

- speed, 5/16 inch

2шт.

35

186169C1

SUPPORT

- grain, Serial Range: tank-cage

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

10шт.

38

186168C4

SHEET

SUPPORT - side panel to cage, forward (Replaces support 186168C1)

1шт.

39

191498C1

SEALING STRIP

SEAL - grain tank support, 20-13/16 inch (528 mm) long

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - grain tank support, cut from bulk seal 73220C1

2шт.

41

186797C2

SUPPORT

PLATE - cage filler, rear

1шт.

42

185386C1

SUPPORT

- cage, left-hand (Replaces support 185386C1) (Replaces 1309191C1)

1шт.

43

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

1шт.

43

186917C1

SCREW

BOLT - hex, special, 3/8 NC x 3/4 inch

19шт.

47

183323C1

STRAP

BAR - cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

- 1/4 inch ID, grain tank to cage support

1шт.

48

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID, grain tank to cage support

1шт.

48

195803C1

GROMMET

- 3/8 inch ID, housing inner sheet hole

1шт.

49

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

50

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

1шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

52

1318899C1

SUPPORT

- rotor cage, left-hand front

1шт.

53

1979540C1

COVER

- rotor separator, upper right-hand

1шт.

54

1994848C1

SUPPORT

- rotor cage, left-hand front

1шт.

55

1994850C1

SUPPORT

- rotor cage, rear

1шт.

73220C1

FILLING STRIP

SEAL - bulk, 4 foot 1219 mm) long

1шт.

Выбрано товаров: 47
