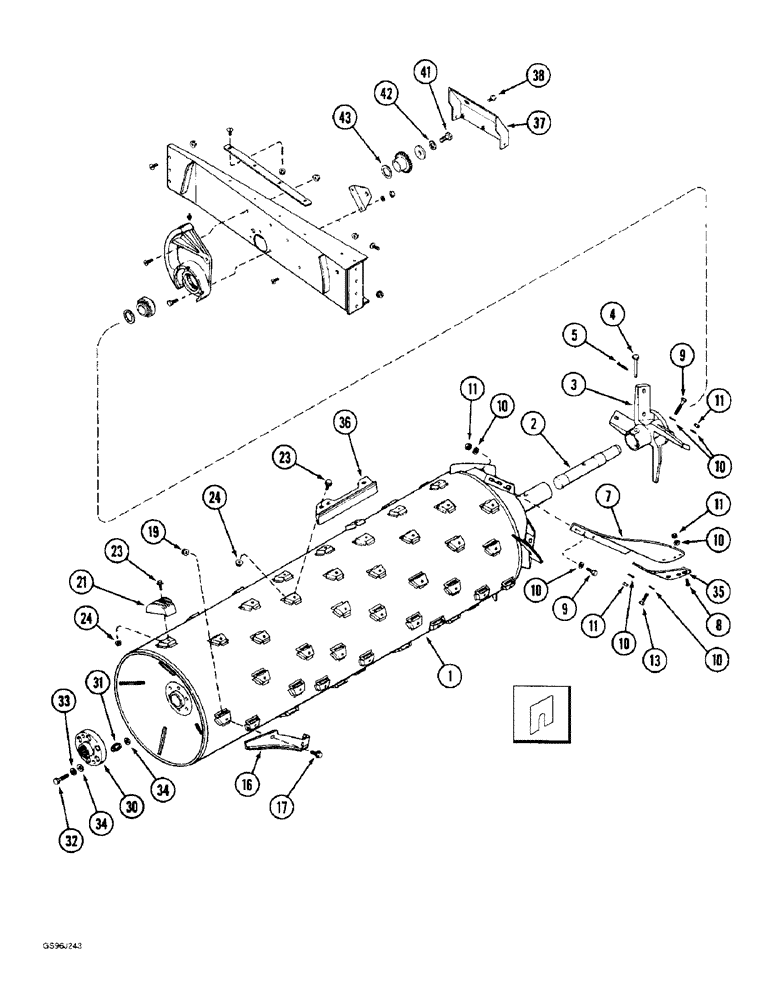

Запчасти Case IH 1660 (9B-20) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1968741C2

ROTOR

ASSEMBLY - threshing, bean special 24 inch chrome, custom cutters, order rotor assembly 1327672C92, Includes: Ref. 2 - 36

1шт.

1

1327672C92

ROTOR

ASSEMBLY - threshing, edible bean, Includes: Ref. 2 - 36

1шт.

1

1317405C91

ROTOR

ASSEMBLY - threshing, rice, Includes: Ref. 2 - 36

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

191546C2

IMPELLER

- rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT - rotor blade, set of three (Replaces kit 1957446C1), Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - rotor, order kit 1957446C3

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

9шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

3шт.

16

1317690C1

ANGLE

- kicker

3шт.

16

1968967C1

KIT

ANGLE - kicker, chrome

3шт.

17

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

6шт.

21

1309175C1

BAR

- rasp, with spike, rice

21шт.

21

1309336C1

BAR

- rasp, without spike, edible bean

54шт.

21

1309336C1

BAR

- rasp, without spike, rice

33шт.

21

1968743C2

BAR

- rasp, without spike, chrome

33шт.

21

1968970C1

BAR

- rasp, with spike, chrome

21шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

30

1345307C1

COUPLING

- rotor drive (Replaces coupling 185166C91)

1шт.

31

1345453C1

RUBBER INSULATOR

Used With New Coupler 1345307C1, 1.75"

6шт.

31

180703C1

PACKAGE,SERVICE

KIT - bushing, set of six, used with 185166C91, 1.28"

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309185C3

BAR

PLATE - wear, chrome (Replaces plate 1309185C1)

3шт.

36

1318976C2

BAR,Straight Seperator

- separator, not chromed (Replaces bar 1318976C1)

3шт.

36

1968969C2

BAR

- separator, chrome

3шт.

37

182845C4

SHIELD

- sensor (Replaces shield 182844C3)

1шт.

38

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
