Запчасти Case IH 1660 (9B-12) - ROTOR DRIVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

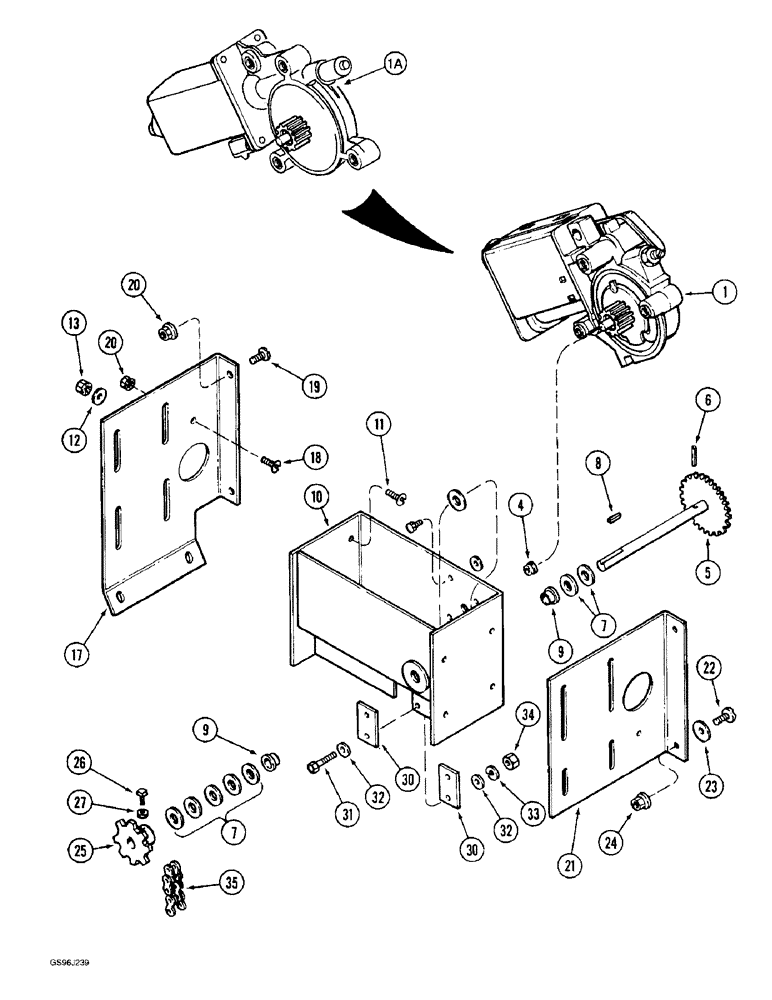

Схема запчастей Case IH 1660 - (9B-12) - ROTOR DRIVE ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE
31
21
34
17
22
30
18
1a
32
7
27
9
8
30
32
9
23
7
26
19
25
6
4
24
13
35
33
5
20
1
12
20
11
10

Артикул

Название

Примечание

Количество

1

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed, no longer available, order motor 111787A2, item 1A, and kit 252489A1 below

1шт.

1a

111787A2

MOTOR, ELECTRIC

MOTOR - electric, variable speed (Replaces motor 126573C1)

1шт.

1a

111787A2R

REMAN-ELECTRIC MOTOR

1660 PRIOR TO S/N JJC0038346 (1/86-12/92)

1шт.

1a

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

252489A1

PACKAGE

KIT - rotor speed, used with motor 111787A2 only, includes harnesses, switch, spacer, bolt, nut, washer, breaker, strap, and manual

1шт.

244566A1

HARNESS

- rotor speed

1шт.

244570A2

HARNESS

- rotor speed

1шт.

113971A1

SWITCH

- rotor, reversing special

1шт.

113485A1

SPACER

- motor speed, 17 mm

2шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- lock, 1/4 inch

2шт.

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie, 7 inch (178 mm) long

6шт.

7-52570

INSTRUCTION

MANUAL - installation instructions

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

3

495-81137

WASHER,13/32" x 1" x .224"

- flat, 13/32 x 1 x 15/64 inch

3шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

5

194338C1

GEAR

SHAFT - rotor gear

1шт.

6

38-31020

PIN,3.96mm OD x 31.75mm L, Coiled

(Replaces pin 591225R1) 5/32" x 1 1/4", Coiled

1шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- gear shaft

2шт.

10

183227C2

SUPPORT

- motor

1шт.

12

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

17

188203C3

SUPPORT

- rotor adjusting, left-hand (Replaces support 188203C2)

1шт.

18

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

194336C2

SUPPORT

- rotor adjusting, RH

1шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

- control, 8 tooth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head, 1/4 NC x 3/4 inch, cup point

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex jam, 1/4 inch NC

2шт.

30

1302173C1

PAD

- motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - variable drive

1шт.

For service order 31 links of No. 2040 chain, one 457113R91 connecting link and two 457114R91 offset links.

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
