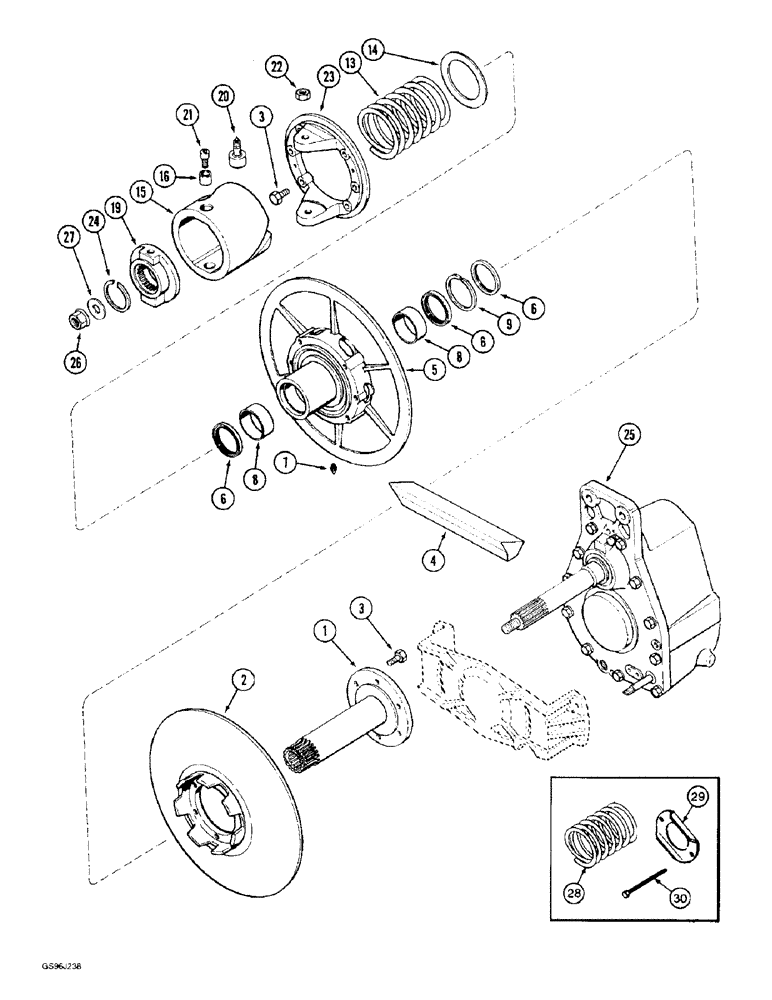

Запчасти Case IH 1660 (9B-10) - ROTOR DRIVE, P.I.N. JJC0026711 & AFTER, (CONTD) (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
1315291C2
HUB
- fixed variable pulley
1шт.
2
1315292C1
PULLEY
- fixed variable
1шт.
3
310-1824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
- hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8
12шт.
4
193923C4
V-BELT,2134.68 mm L
Rotor variable drive 2134.68 mm L
1шт.
5
1315294C3
PULLEY
ASSEMBLY - adjustable variable, Includes: Ref. 6 - 9
1шт.
6
193965C91
SEAL
- pulley
3шт.
7
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
1шт.
8
NSS
NOT SOLD SEPARAT
BUSHING - pulley, order bushing set 188839C91
2шт.
9
537602R1
RING
- pulley retaining
1шт.
13
193936C2
SPRING
- rotor drive torque sensing, no longer available, order items 28-30
1шт.
14
1315521C1
THRUST BEARING
WASHER - thrust, rotor drive
1шт.
184478C1
CAM
ASSEMBLY - follower, torque sensing (Replaces cams 1315634C2 and 1315299C1), Includes: Ref. 15 and 16
1шт.
15
NSS
NOT SOLD SEPARAT
CAM - follower, torque sensing, order cam assembly 184478C1
1шт.
16
193941C1
BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L
- yoke pivot
2шт.
19
1315297C2
HUB,20T
CAM - torque sensing
1шт.
20
1315343C1
BEARING,38.1 mm OD x 22.22 mm
- cam follower
2шт.
21
194167C1
SCREW,5/8 - 11" x 1"
BOLT - cam follower yoke pivot
2шт.
22
425-1110
NUT,5/8"-18, G5
2шт.
23
1315344C2
HUB
- cam follower (Replaces hub 1315344C1)
1шт.
24
360171R1
SNAP RING,M66.67 x 3.23mm Thk, Ext
- retaining
1шт.
25
REF
INSTRUCTION
HOUSING ASSEMBLY - rotor drive, parts list Fig. 9B-14
1шт.
26
1315288C1
FLANGE NUT
- hex, self-locking, special, 7/8 inch NC
1шт.
27
WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk
- flat, 57/64 x 1-7/8 x 7/32 inch, hardened
1шт.
28
184486C1
SPRING
- 9-1/32 inch free length, rotor drive torque sensing (Replaces spring 193936C2)
1шт.
29
1315304C2
PLATE
- torque spring
1шт.
30
1319996C2
ROD
BOLT - torque sensing spring, special, 11-1/2 inch
2шт.
Выбрано товаров: 26
