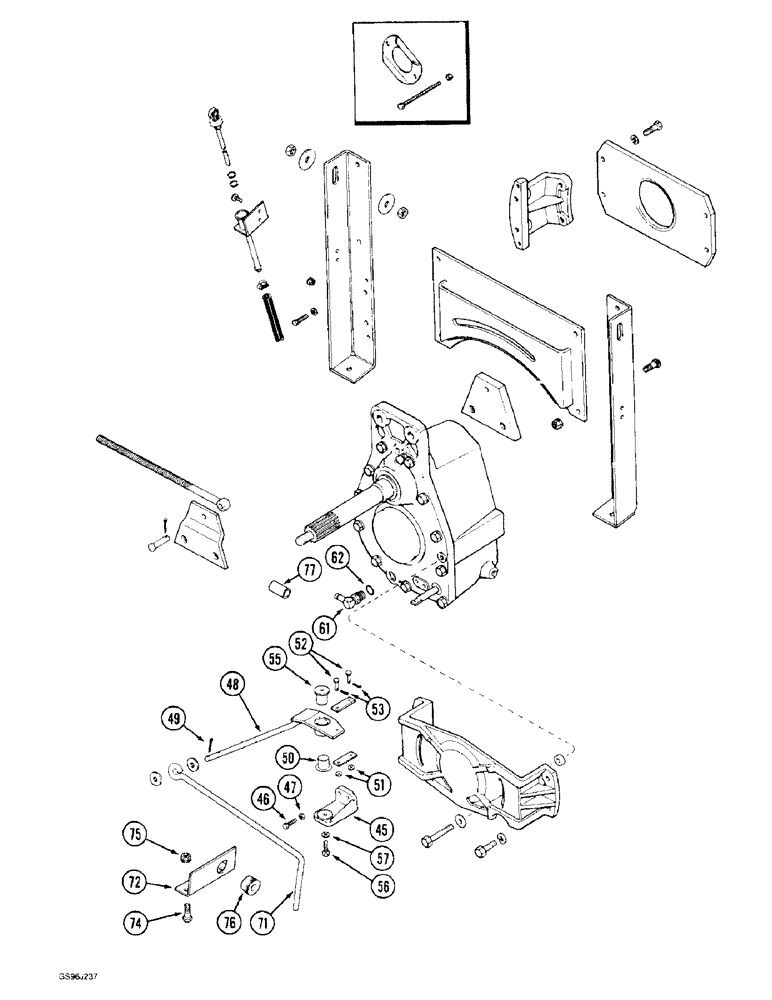

Запчасти Case IH 1660 (9B-08) - ROTOR DRIVE, P.I.N. JJC0026711 & AFTER, (CONTD) (14) - ROTOR, CONCANVES & SIEVE

45

1979167C1

SUPPORT ASSY.

SUPPORT - gear housing pivot (Replaces support 188171C1)

1шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

46

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

48

1979164C1

LEVER

- rotor drive shift (Replaces lever 188172C2)

1шт.

49

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

50

1979265C1

BUSHING

- shift lever (Replaces bushing 277523R1)

1шт.

51

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

52

439-1416

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch, grade 2

2шт.

53

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

55

188170C1

NUT

NUT - shift lever

1шт.

56

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

61

188272C1

ELBOW

- 90 degree, special, gear housing

1шт.

62

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

71

186648C2

ROD

- lever shaft control linkage

1шт.

72

188816C91

ANGLE

- rod lever control link

1шт.

74

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

75

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

76

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, control rod

1шт.

77

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

1шт.

S118466X

LARGE HOSE

HOSE - bulk, 1/2 (13) ID x 300 inch (7620 mm) long, sold by the foot

1шт.
