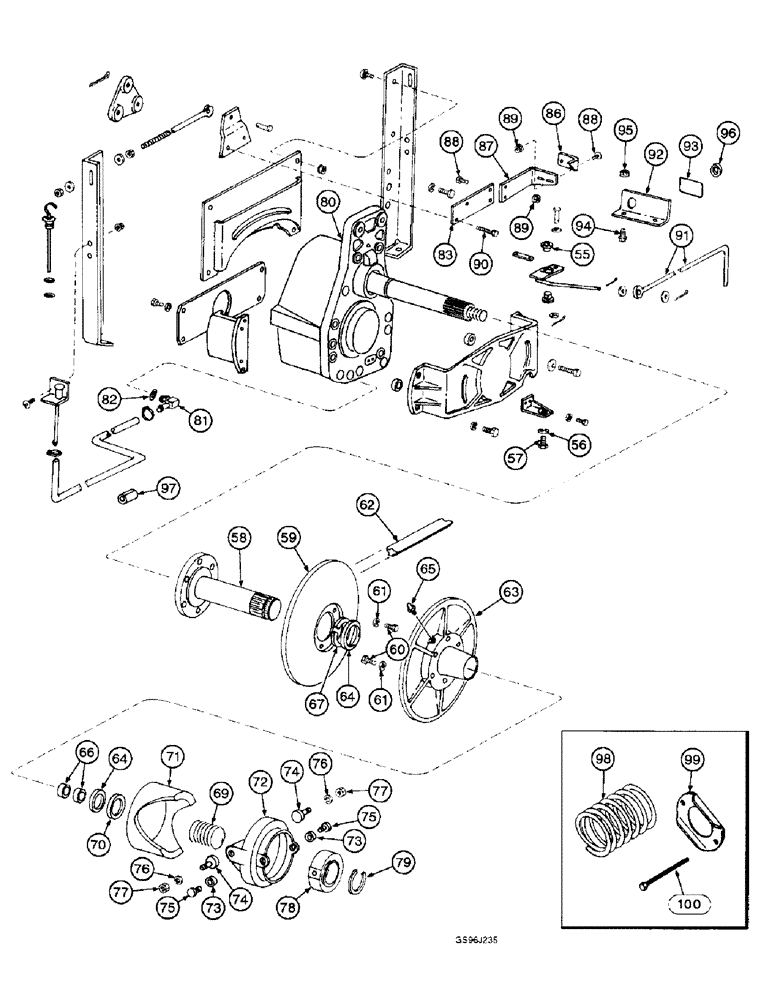

Запчасти Case IH 1660 (9B-04) - ROTOR DRIVE, PRIOR TO P.I.N. JJC0026711, (CONTD) (14) - ROTOR, CONCANVES & SIEVE

55

188170C1

NUT

NUT - shift lever

1шт.

56

492-11038

LOCK WASHER,3/8"

1шт.

57

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

58

193962C2

HUB

- fixed variable pulley

1шт.

59

185433C1

PULLEY

- fixed variable, 17-3/4 inch OD

1шт.

60

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

12шт.

61

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

62

193923C4

V-BELT,2134.68 mm L

Rotor variable drive (Replaces belt 193923C3) 2134.68 mm L

1шт.

63

185417C91

PULLEY ASSY.

PULLEY ASSEMBLY - adjustable variable, 17-3/4 inch OD, Includes: Ref. 64 - 67

1шт.

64

193965C91

SEAL

- pulley

3шт.

65

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

66

NSS

NOT SOLD SEPARAT

BUSHING - pulley, order bushing set 188839C91

2шт.

67

537602R1

RING

- pulley retaining

1шт.

69

193936C2

SPRING

- rotor drive torque sensing, no longer available, order items 98-100

1шт.

70

188210C91

CAM FOLLOWER

BEARING - rotor drive thrust

1шт.

71

185416C1

CAM

- rotor drive torque sensing

1шт.

72

195247C91

YOKE

ASSEMBLY - torque sensing cam follower, Includes: Ref. 73

1шт.

73

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

74

193943C91

BEARING ASSY

BEARING - cam follower

2шт.

75

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

76

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

77

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

78

193938C1

HUB

- cam follower

1шт.

79

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining, hub cam follower

1шт.

80

REF

INSTRUCTION

HOUSING ASSEMBLY - rotor drive, parts list Fig. 9B-14

1шт.

81

188272C1

ELBOW

- 90 degree, special, gear housing

1шт.

82

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

83

185397C1

SUPPORT

BAR - gauge angle, if equipped

1шт.

86

186031C2

ANGLE

- rotor driven pulley gauge, if equipped

1шт.

87

184246C1

ANGLE

- gauge support, if equipped

1шт.

88

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", if equipped

2шт.

89

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, if equipped

2шт.

90

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

91

186648C2

ROD

- lever shaft control linkage

1шт.

92

188816C91

ANGLE

ASSEMBLY - rod lever control link, Includes: Ref. 93

1шт.

93

188815C1

DECAL

- Caution, shut off engine before shifting rotor drive

1шт.

94

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

95

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

96

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, control rod

1шт.

97

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long

1шт.

98

184486C1

SPRING

- 9-1/32 inch free length, rotor drive torque sensing (Replaces spring 193936C2)

1шт.

99

1315304C2

PLATE

- torque spring

1шт.

100

1319996C2

ROD

BOLT - torque sensing spring, special, 11-1/2 inch

2шт.

S118466X

LARGE HOSE

HOSE - bulk, 1/2 (13) ID x 300 inch (7620 mm) long, sold by the foot

1шт.
