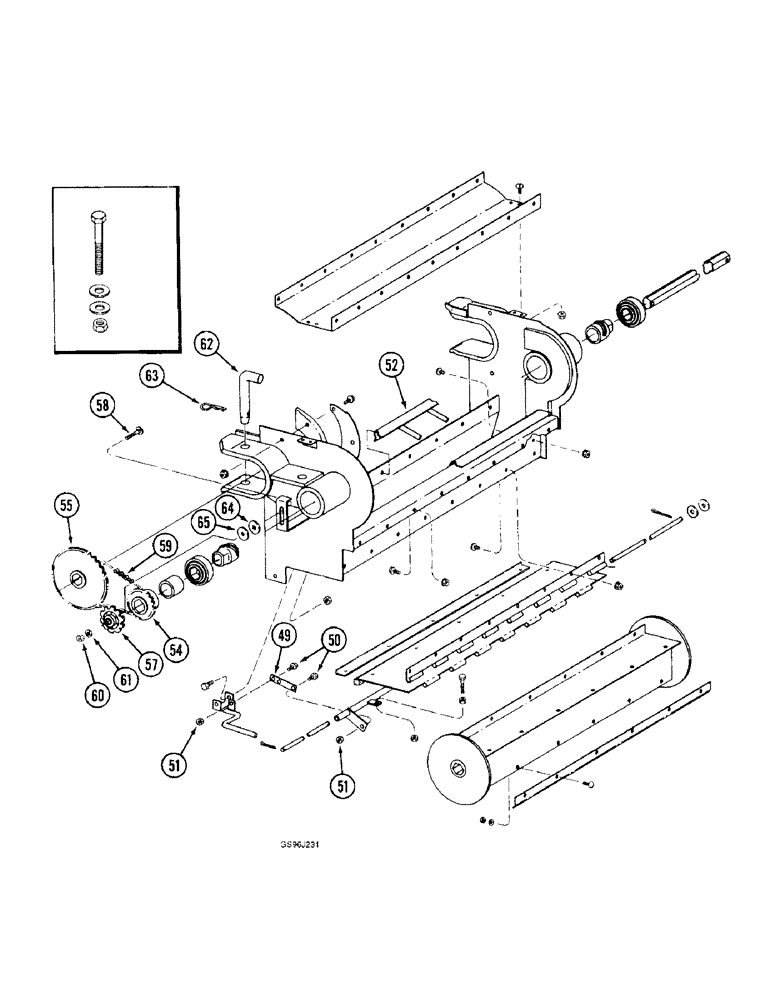

Запчасти Case IH 1660 (9A-40) - ROCK TRAP, (CONTD) (13) - FEEDER

49

1320128C1

LINK

- connecting

2шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

51

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

52

1320846C1

SUPPORT ASSY.

ANGLE - support

1шт.

54

1329719C2

SPROCKET

- beater driven, rock trap, 20 tooth

1шт.

54

1320095C3

DRIVE SPROCKET

SPROCKET - drive, 16 tooth

2шт.

55

1320110C3

SPROCKET

- beater driven, rock trap, 32 tooth

1шт.

57

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler, 15 tooth

1шт.

58

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, if used

1шт.

58

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage, 5/8 NC x 2-1/2 inch, if used (Replaces bolt 598820R1)

1шт.

59

REF

INSTRUCTION

CHAIN - sprocket

2шт.

For service order 123 links of No. 60H chain, two 1317D connecting link and one 1316D roller link.

1шт.

59

REF

INSTRUCTION

CHAIN - sprocket

2шт.

For service order 124 links of 1979285C1 chrome roller chain and two 1329768C1 connecting links.

1шт.

60

425-1010

NUT,5/8"-11, G5

1шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

192533C2

ROD

- feeder pivot block

1шт.

63

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

65

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

3шт.

1957278C1

LATCH

KIT - rock trap latch support

1шт.
