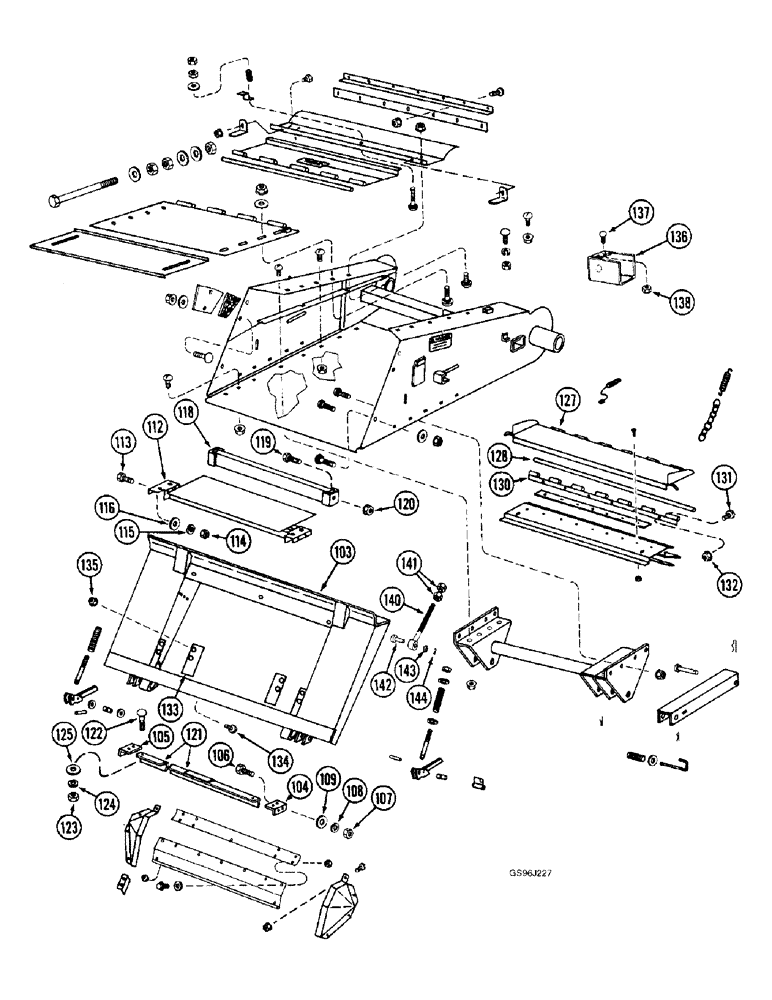

Запчасти Case IH 1660 (9A-32) - FEEDER, (CONTD) (13) - FEEDER

103

1321690C4

SHIELD

ADAPTER - feeder (Replaces adapter 1321690C3)

1шт.

104

175913C1

ANGLE

- adapter, left-hand

1шт.

105

175914C1

ANGLE

- adapter, right-hand

1шт.

106

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

107

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

108

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

109

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

112

1345329C2

SUPPORT

- reinforcement, with rock trap (Replaces support 187187C2)

1шт.

113

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

114

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

115

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

116

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

118

187192C1

SUPPORT ASSY.

SUPPORT - rear bottom, with rock trap

1шт.

119

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

120

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

121

1319744C1

SUPPORT ASSY.

STIFFENER - support

1шт.

122

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

123

425-1010

NUT,5/8"-11, G5

2шт.

124

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

125

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

127

193362C2

DOOR

- lower

1шт.

128

159012C1

ROD

- hinge, door

1шт.

130

193364C2

HINGE

- door

1шт.

131

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

132

231-5146

FLANGE NUT,3/8"-16

6шт.

133

181646C1

SUPPORT

PLATE - face wear, rice combines only

2шт.

134

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

135

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

136

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

137

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

137

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

138

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

138

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

2шт.

140

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

141

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

4шт.

142

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch

2шт.

143

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

144

432-1216

COTTER PIN,3/16" x 1"

2шт.
