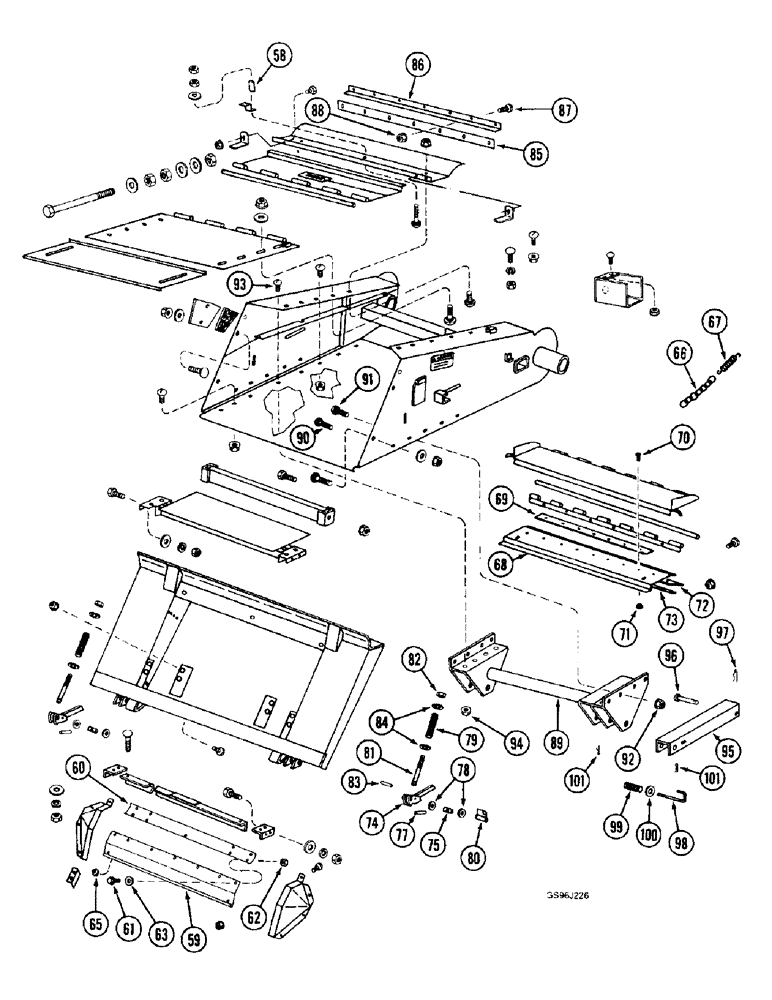

Запчасти Case IH 1660 (9A-30) - FEEDER, (CONTD) (13) - FEEDER

58

7422T

SPRING

- latch, door

1шт.

59

1319479C1

COVER

- adapter, feeder

1шт.

60

1319474C1

BAND

COVER - top, feeder

1шт.

61

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

62

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

63

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

12шт.

65

1321640C1

GROMMET

- cover, adapter

2шт.

66

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

67

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

68

1319961C1

SUPPORT

- bottom, feeder, rear

1шт.

69

1319965C1

BAR

- spacer, support

1шт.

70

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat Phillips, No. 10 NC x 3/4 inch

6шт.

71

196922C1

LOCK NUT

- hex, self-locking, No. 10

6шт.

72

1319963C1

SEAL

SEAL - feeder bottom support, rear

1шт.

73

197429C1

SEALING STRIP

SEAL - door

1шт.

74

179024C1

HINGE

HANDLE - lock, latch

2шт.

75

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

77

138-2005

PIN,1/4" x 1", Coiled

2шт.

78

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

79

367833R1

SPRING

- rod, latch

2шт.

80

1338021C1

PIN,7.94mm OD

- retaining, latch (Replaces pin 407171R1)

2шт.

81

177138C1

ROD

- latch

2шт.

82

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

83

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

2шт.

84

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

85

634204R1

SEAL

- feeder, top

1шт.

86

197418C1

SUPPORT

ANGLE - seal support

1шт.

88

231-5146

FLANGE NUT,3/8"-16

7шт.

89

197382C2

SUPPORT ASSY.

BRACKET - support, lift, 47 inch feeder

1шт.

89

187102C2

BRACKET

- support, lift, 54-1/2 inch feeder

1шт.

90

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

91

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, eight used with 47 inch and seven used with 54 inch feeder

8шт.

92

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8, eight used with 47 inch and ten used with 54-1/2 inch feeder

10шт.

94

231-5146

FLANGE NUT,3/8"-16

8шт.

95

197554C3

CHANNEL

- lift cylinder lock

1шт.

96

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

97

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

1шт.

98

197849C1

ROD

- cylinder lift lock

1шт.

99

M296

SPRING

- lock

1шт.

100

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

101

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

102

182030C2

SUPPORT

STRIP - support, not shown

1шт.

87

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

7шт.

93

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
