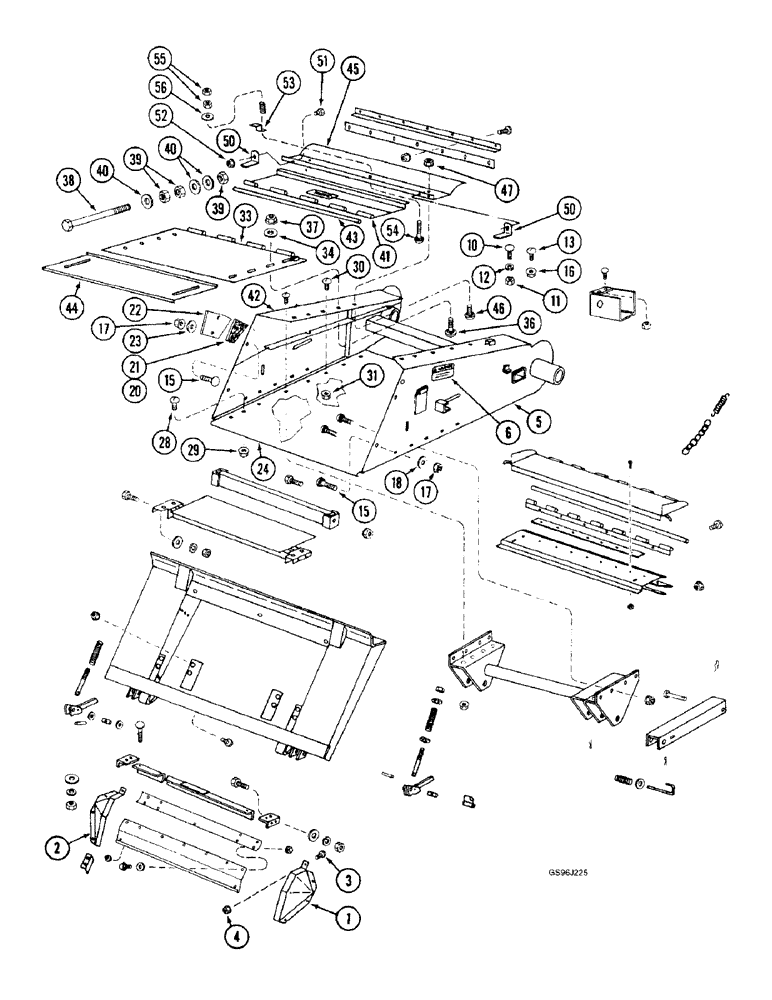

Запчасти Case IH 1660 (9A-28) - FEEDER (13) - FEEDER

1

184853C1

DEFLECTOR

- front, left-hand

1шт.

2

184854C1

DEFLECTOR

- front, right-hand

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

5

1321458C92

HOUSING ASSY.

HOUSING ASSEMBLY - feeder, 54-1/2 inch feeder, Includes: Ref. 6

1шт.

6

189922C3

DECAL

- Danger, always place feeder lock in position

2шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

15

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

6шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

17

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

6шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

6шт.

20

1327752C1

FOAM INSULATION

- side, left-hand, feeder

1шт.

21

1327753C1

FOAM INSULATION

- side, right-hand, feeder

1шт.

22

1327737C2

PLATE

COVER - side, feeder

2шт.

23

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324576C1

PLATE

- lower support, 47 inch feeder

1шт.

24

185820C1

SHEET

PLATE - lower support, perforated, 47 inch feeder

1шт.

24

1324578C1

PLATE

- lower support, 54-1/2 inch feeder

1шт.

24

1313970C1

PANEL

PLATE - lower support, perforated, 54-1/2 inch feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

4шт.

31

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6шт.

33

1321431C2

SUPPORT

- hinged, feeder top, 47 inch feeder

1шт.

33

186354A1

SHEET

PANEL ASSEMBLY - hinged, feeder top, 54-1/2 inch feeder, includes sheet and strip

1шт.

1321432C2

PROTECTION PLATE

SHEET - feeder top

1шт.

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID

1шт.

34

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

8шт.

36

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

8шт.

37

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

8шт.

38

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

ROD - adjusting, includes nut, level

1шт.

39

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

40

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

3шт.

41

180555C91

DOOR ASSY.

DOOR - feeder, upper

1шт.

42

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped

1шт.

43

175906C1

ROD

- hinge, door

1шт.

44

1321638C1

COVER

- upper front

1шт.

45

197426C4

COVER

- upper, feeder

1шт.

46

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

47

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

2шт.

50

1322144C1

ANGLE

- door stop

2шт.

51

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

52шт.

52

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

53

184645C1

CLIP

- latch, door

1шт.

54

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

1шт.

55

425-106

NUT,3/8"-16, Cl 5

2шт.

56

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
