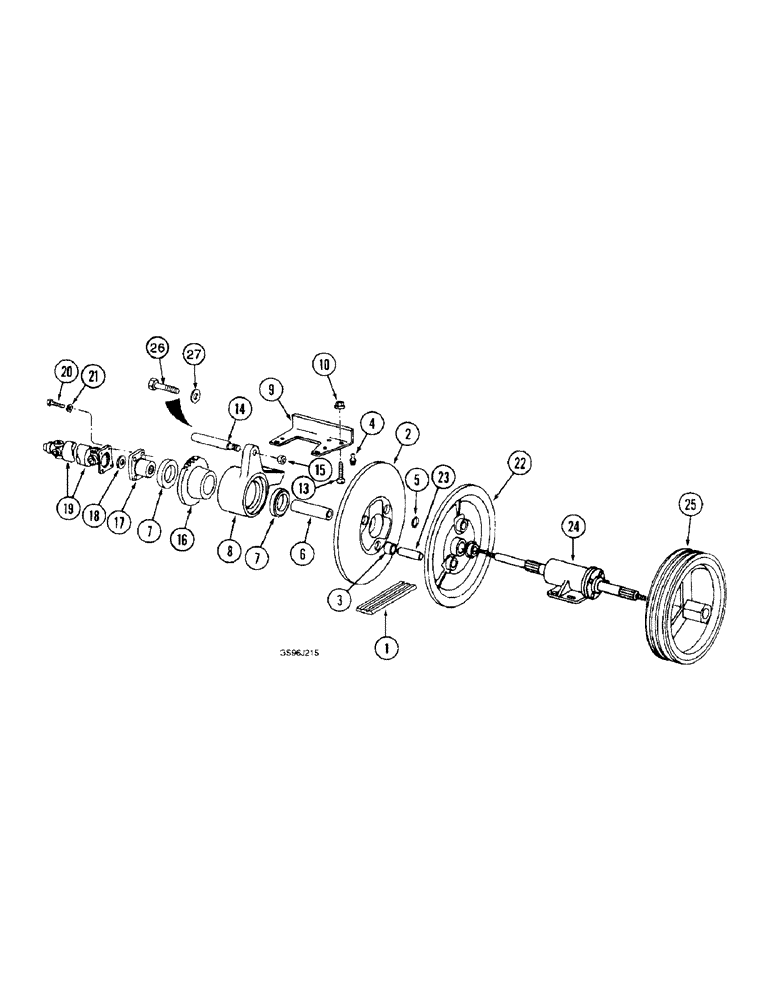

Запчасти Case IH 1660 (9A-08) - SEPARATOR JACKSHAFT DRIVE, WITHOUT STRAW CHOPPER (13) - FEEDER

1

193923C4

V-BELT,2134.68 mm L

Rotor variable drive, See Fig. 9B-04 2134.68 mm L

1шт.

2

1330054C1

PULLEY

ASSEMBLY - rotor drive variable, 17-1/2 inch OD, Start Serial: JJC0026711

1шт.

2

193620C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive variable, 17-1/2 inch OD, Includes: Ref. 3, Serial Range: -JJC0026711

1шт.

3

194665C1

BUSHING

- pulley

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 PT x 5/8 inch, taper drive

1шт.

5

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

6

188846C1

HUB

ASSEMBLY - rotor drive pulley, Start Serial: JJC0026711

1шт.

6

191549C2

SLEEVE

- rotor jackshaft, Serial Range: -JJC0026711

1шт.

7

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING - jackshaft thrust

2шт.

8

194394C1

HUB

FITTING - variable pulley female

1шт.

9

188309C3

SUPPORT

- variable pulley limit switch

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

14

194496C2

LARGE PIN

STUD - variable stop, no longer available, order bolt 413-12152 and nut 329-1412, items 26 and 27 below

1шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

16

194464C2

SPROCKET

- variable pulley male, 25 tooth

1шт.

17

191542C2

SPLINED COUPLING,12T

COUPLING - universal joint

1шт.

18

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- flat, 29/32 x 2-3/64 x 1 1/64 inch

1шт.

19

191595C91

JOINT ASSY.

JOINT ASSEMBLY - universal drive, Includes: Ref. 20 and bearing kit

1шт.

1300502C1

KIT

- bearing, journal

1шт.

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

- universal joint

2шт.

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

20

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

4шт.

21

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

22

188848C1

PULLEY

- rotor drive stationary, 17-1/2 inch OD, Start Serial: JJC0026711

1шт.

22

193622C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive stationary, 17-1/2 inch OD

1шт.

23

191544C2

PIN,28.48mm OD x 127mm L

- pulley, Serial Range: -JJC0026711

3шт.

24

181369C1

BEARING HOUSING

BLOCK - jackshaft bearing, see Fig. 9A-16

1шт.

25

REF

INSTRUCTION

PULLEY - separator jackshaft driven, see Fig. 9A-16

1шт.

26

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

1шт.

27

329-1412

JAM NUT,Jam, 3/4"-10, G8

8шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
