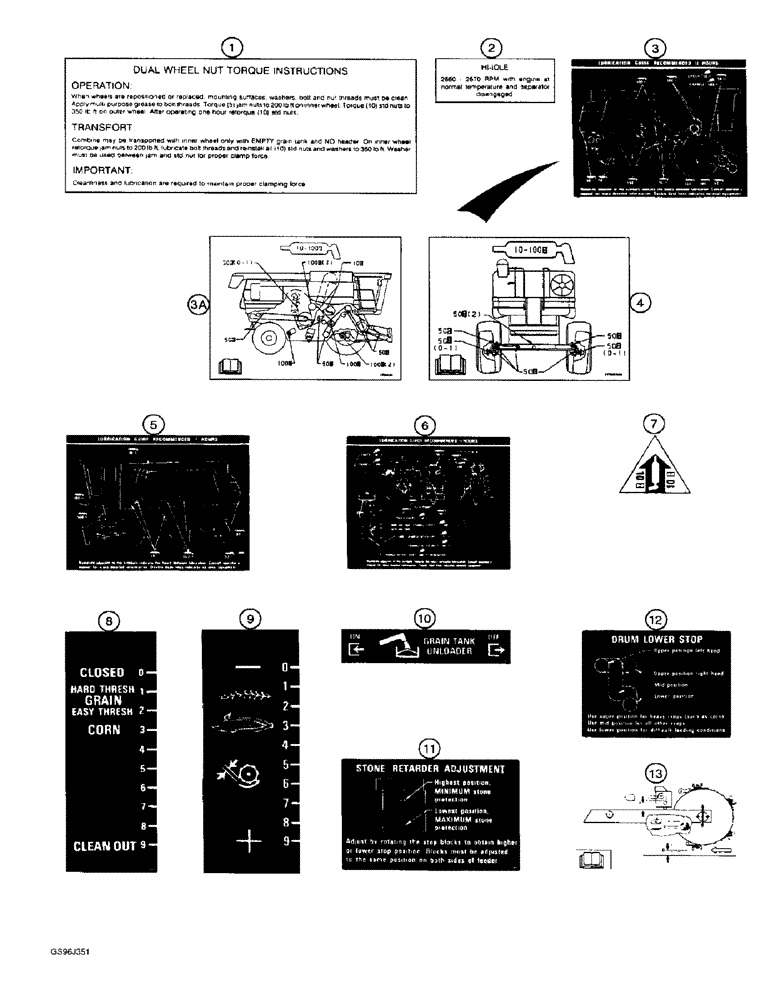

Запчасти Case IH 1660 (9H-30) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

1

184445C1

DECAL

- dual wheel nut torque instructions

4шт.

2

1977208C1

DECAL

- engine RPM high idle

1шт.

3

186671C4

DECAL

- lubrication guide recommended hours, right-hand

1шт.

3

1300121C4

DECAL

- lubrication guide recommended hours, right-hand, French

1шт.

3

1300483C2

DECAL

- lubrication guide recommended hours, right-hand, Spanish, no longer available, order decal 179621A2, item 3A, and decal 179623A2, item 4

1шт.

3a

179621A2

DECAL

- lubrication, right-hand side

1шт.

4

179623A2

DECAL

- lubrication, rear axle

1шт.

5

186672C4

DECAL

- lubrication, left-hand (Replaces decal 186672C3)

1шт.

5

1300122C4

DECAL

- lubrication guide recommended hours, left-hand, French

1шт.

5

1300561C4

DECAL

- lubrication guide recommended hours, left-hand, Spanish

1шт.

6

1327687C2

DECAL

- lubrication guide recommended hours, upper

1шт.

6

1327688C2

DECAL

- lubrication guide recommended hours, upper, French

1шт.

6

1327689C2

DECAL

- lubrication guide recommended hours, upper, Spanish

1шт.

7

179245C1

DECAL

- lubrication, 10 hour

1шт.

8

188217C1

PRODUCT GRAPHIC

DECAL - concave indicator

1шт.

9

1312068C1

DECAL

- concave indicator, export only, if equipped

1шт.

10

185036C1

PRODUCT GRAPHIC

DECAL - grain tank unloader

1шт.

10

1300059C1

DECAL

- grain tank unloader, French

1шт.

10

1300343C1

DECAL

- grain tank unloader, Spanish

1шт.

11

184649C1

PRODUCT GRAPHIC

DECAL - stone retarder adjustment

2шт.

11

1300110C1

DECAL

- stone retarder adjustment, French

2шт.

11

1300365C1

DECAL

- stone retarder adjustment, Spanish, no longer available, order decal 175783A1, item 13 below

2шт.

12

184863C2

PRODUCT GRAPHIC

DECAL - drum lower stop

2шт.

12

1300111C2

DECAL

- drum lower stop, French

2шт.

12

1300389C1

DECAL

- drum lower stop, Spanish

2шт.

13

175783A1

DECAL

- feeder drum adjuster with retarder

2шт.
