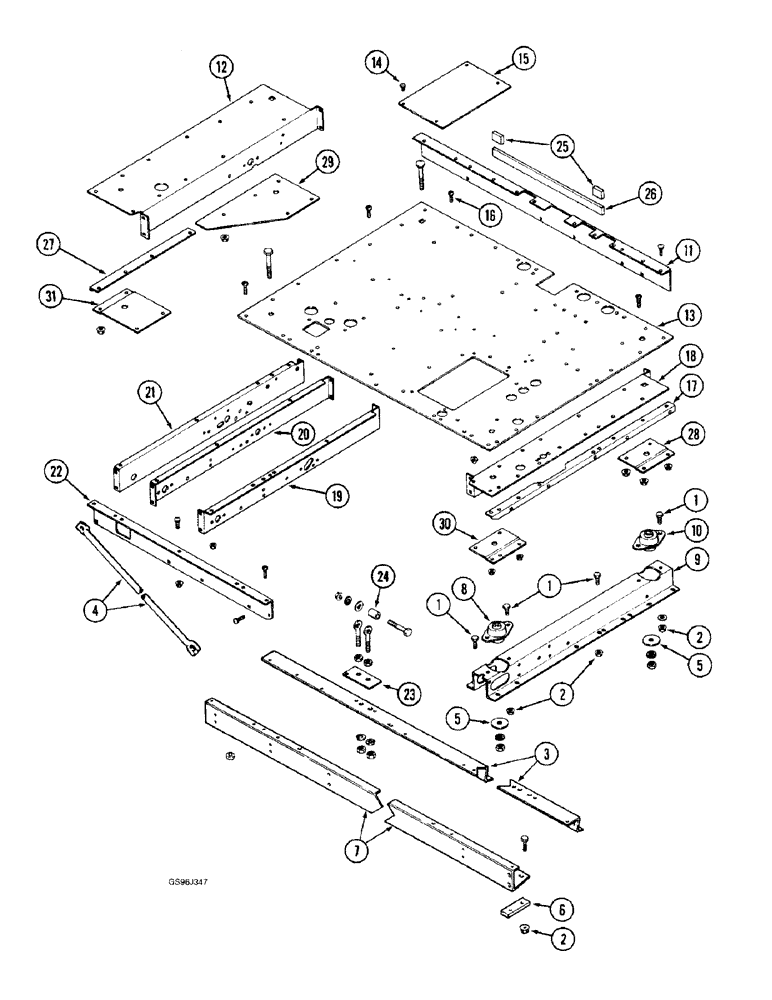

Запчасти Case IH 1660 (9H-22) - OPERATORS PLATFORM (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
2
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
3
193021C7
ANGLE
SUPPORT - operators platform, front (Replaces support 193021C6)
1шт.
4
187645C2
ROD
- operators platform extension
1шт.
5
196591C1
WASHER
- flat, special
4шт.
6
195715C1
BAR
- rear mounting channel, 1/2 inch
2шт.
6
193428C1
BAR
- rear mounting channel, 5/8 inch
2шт.
7
193022C2
SUPPORT
- operators platform, rear
1шт.
8
196950C2
MOUNTING PARTS
INSULATOR - vibration, rear
2шт.
9
195507C6
SUPPORT
- operators platform, side
2шт.
10
117722C4
INSULATOR
- vibration, front
2шт.
11
1327564C2
SUPPORT
- operators platform, front
1шт.
12
195520C3
SUPPORT
- operators platform, left-hand
1шт.
13
1321937C4
PLATFORM
- operators
1шт.
14
276-1478
SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"
SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch
4шт.
15
193029C2
PLATE
- brake access rear
1шт.
16
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
11шт.
17
196969C4
SUPPORT
- platform stiffener, right-hand
1шт.
18
195518C8
SUPPORT
- operators platform, right-hand
1шт.
19
195519C6
SUPPORT
- operators platform, right-hand center (Replaces support 195519C5)
1шт.
20
195521C4
SUPPORT
- operators platform, center
1шт.
21
195557C7
SUPPORT
- operators platform, left-hand center
1шт.
22
195516C4
SUPPORT
- operators platform, rear
1шт.
23
196592C3
BAR
- platform spacer
2шт.
24
591070R1
SPACER,3/4" Pipe x 1 7/16"
- pipe, 3/4 x 1-7/16 inch, front
2шт.
25
NSS
NOT SOLD SEPARAT
STRIP - cab sill to front support seal, 2 inch (51 mm) long, cut from seal 187885C1 below
2шт.
26
187885C1
SEALING STRIP
- cab sill to front support seal, 26 inch (660 mm) long
1шт.
27
183680C1
ANGLE
- stiffener, left-hand
1шт.
28
183668C2
PLATE
- right-hand front
1шт.
29
183669C2
PLATE
- left-hand front
1шт.
30
183678C1
PLATE
- right-hand rear
1шт.
31
183679C1
PLATE
- left-hand rear
1шт.
Выбрано товаров: 32
