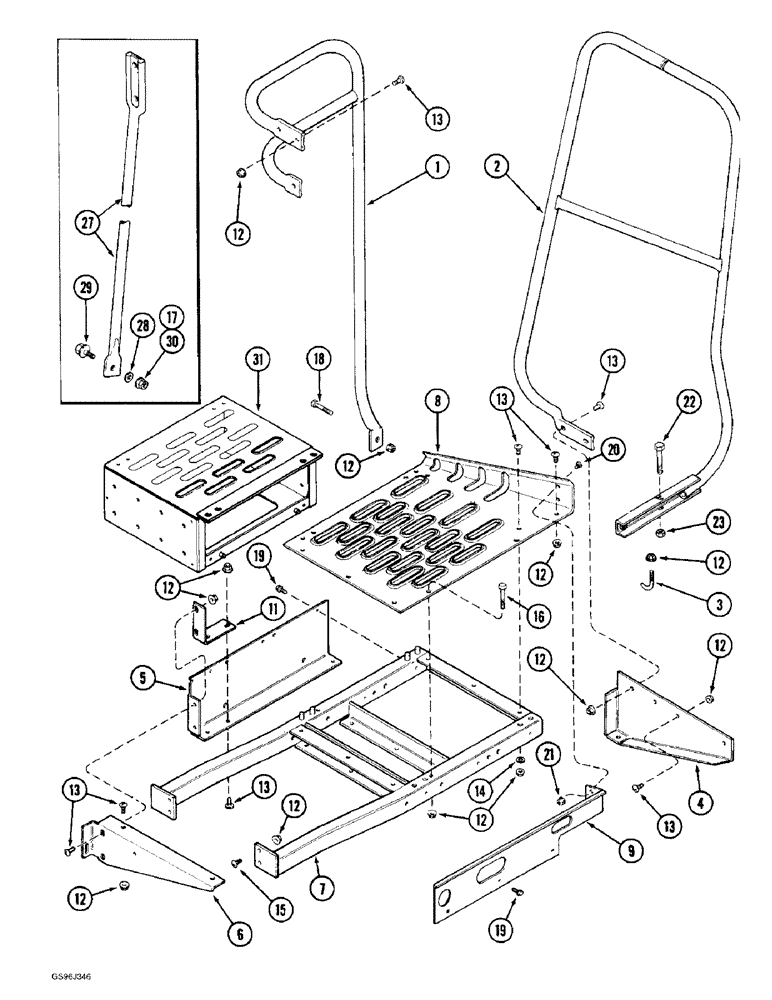

Запчасти Case IH 1660 (9H-20) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
196642C2
RAIL
- hand, platform extension, rear
1шт.
2
198548C2
RAIL
- hand, platform extension, front
1шт.
3
196967C2
BOLT,3/8" - 16 x 2"
- front hand rail hook, special
1шт.
4
198541C3
SUPPORT ASSY.
SUPPORT - platform extension, front
1шт.
5
198543C3
SUPPORT
- platform extension, left-hand
1шт.
6
198544C1
SUPPORT
- operators platform extension
1шт.
7
198535C4
SUPPORT
- extension
1шт.
8
198547C3
LARGE PLATE
TREAD - platform extension
1шт.
9
198542C3
SUPPORT
- extension, right-hand (Replaces support 198542C2)
1шт.
11
183761C1
ANGLE
- rear extension
1шт.
12
231-5146
FLANGE NUT,3/8"-16
25шт.
13
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
18шт.
14
495-81140
WASHER,13/32" x 1 1/4" x .060"
- flat, 13/32 x 1-1/4 x 1/16 inch
3шт.
16
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch
1шт.
17
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
18
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
19
187-1036
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch
6шт.
20
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch
2шт.
21
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
22
326-844
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
1шт.
23
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
27
184395C1
STEM
SUPPORT - ladder platform extension, extra wide and dual axle
1шт.
28
495-91167
WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk
- flat, 17/32 x 2 x 7/64 inch
3шт.
29
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
2шт.
30
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
2шт.
31
1979515C1
SUPPORT
- platform extension, 14 inch (Replaces support 194001C91)
1шт.
15
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - serrated slotted truss head, 3/8 NC x 1 inch
4шт.
Выбрано товаров: 27
