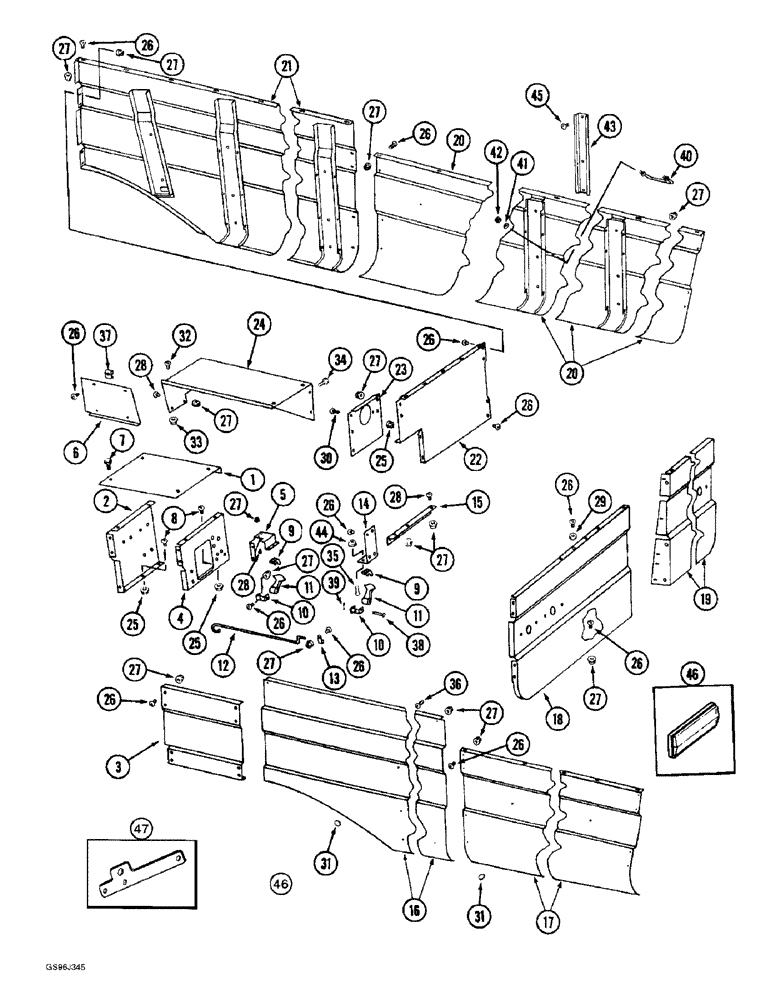

Запчасти Case IH 1660 (9H-18) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

1

198559C1

COVER

SUPPORT - valve box top

1шт.

2

1301066C2

SUPPORT

- valve box, front

1шт.

3

193052C1

SHEET

SUPPORT - valve box, left-hand side

1шт.

4

193060C6

SUPPORT

- valve box, rear

1шт.

5

182834C2

SUPPORT

- latch, left-hand front

1шт.

6

188160C1

SUPPORT

- right-hand front cab bottom

1шт.

7

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - self-tapping, hex washer head, 3/8 NC x 3/4 inch

4шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

9

L105124

LATCH HOOK

HOOK - latch

2шт.

10

188103C1

BRACKET

- hood anchor

2шт.

11

494307C1

LATCH

HOOK - hold down, latch

2шт.

12

183444C1

ROD

- tank lower door, left-hand

1шт.

13

362123R1

CLIP

- trim sheet brace

1шт.

14

188156C2

SUPPORT

- trim rear catch

1шт.

15

194604C3

ANGLE BAR

ANGLE - shield support

2шт.

16

186789C1

SHIELD

SUPPORT - grain tank trim, left-hand front, no longer available, order support 139776A3, item 16, and support 184186A1, item 47

1шт.

16

139776A1

DOOR ASSY.

SUPPORT - grain tank trim, left-hand front, also order support 184186A1, item 47

1шт.

17

193733C3

PANEL

SHIELD - rear trim, left-hand (Replaces shield 193733C2)

1шт.

18

104148A3

SUPPORT

- tail lamp, left-hand

1шт.

19

193812C5

SHEET

SUPPORT - tail lamp, right-hand

1шт.

20

193734C7

PANEL

SHIELD - rear trim, right-hand (Replaces shield 193734C5)

1шт.

21

188152C2

SUPPORT

- grain tank trim, right-hand front

1шт.

22

193151C1

SUPPORT

- lower, left-hand front

1шт.

23

194452C2

SUPPORT

- gear case, front

1шт.

24

193443C2

SUPPORT

- feeder drive upper (Replaces support 193443C1)

1шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

62шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

89шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

22шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

31

147483C1

PLUG

- button

8шт.

32

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

33

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

34

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4" (Replaces screw 172455)

2шт.

35

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

4шт.

36

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

9шт.

37

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

2шт.

38

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

2шт.

39

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

40

1251832C2

HANDLE

- assist (Replaces handle 1251832C1)

1шт.

41

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

42

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10

2шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

45

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

46

175311C1

REFLECTOR

- red, if equipped

2шт.

47

184186A1

SUPPORT

- prop rod

1шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
