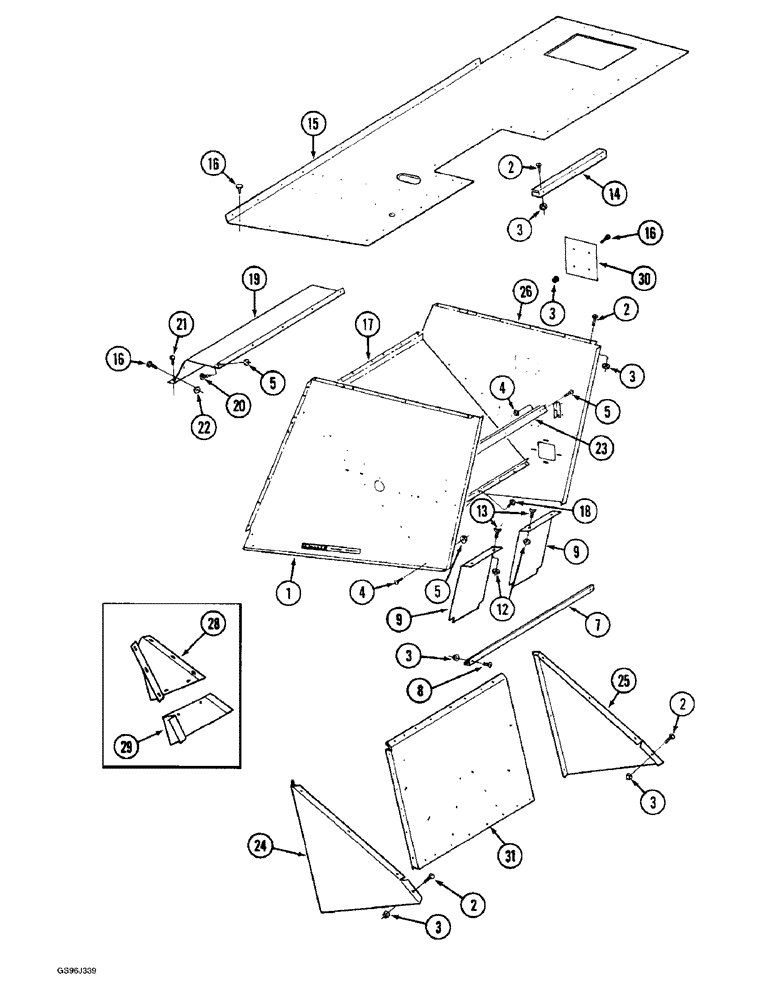

Запчасти Case IH 1660 (9H-06) - SEPARATOR SIDES (12) - CHASSIS

1

192378C9

SHEET

SIDE - separator, left-hand (Replaces side 192378C7)

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

23шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

71шт.

5

231-5146

FLANGE NUT,3/8"-16

14шт.

7

192309C2

ANGLE

- rear support

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

3шт.

9

1300294C91

SUPPORT

- hood rear access, includes decals

2шт.

12

488837C1

SPRING NUT

- speed, 5/16 inch, rear hood support

4шт.

13

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch, rear hood support

4шт.

14

186971C1

ANGLE

- rear deck support

1шт.

15

1317744C6

SHEET

SUPPORT - rear deck (Replaces support 1317744C2)

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

36шт.

17

192313C6

SHIELD

DEFLECTOR - straw discharge (Replaces deflector 192313C5)

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

19

1979212C1

SUPPORT ASSY.

SUPPORT - engine deck (Replaces support 191315C1)

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

5шт.

22

541310R1

SPRING NUT

- speed, 5/16 inch

5шт.

23

194305C1

ANGLE

- deflector stiffener

1шт.

24

1302105C1

DEFLECTOR

SUPPORT - corner, left-hand

1шт.

25

1302106C1

DEFLECTOR

SUPPORT - corner, right-hand

1шт.

26

1302698C93

SUPPORT

SIDE ASSEMBLY - separator, right-hand, Includes: Ref. 27

1шт.

27

185442C1

DECAL

- Caution, engine must be shut off

1шт.

28

1319485C1

DEFLECTOR

- rear hood, if used, not used on rice combines

1шт.

29

1321019C1

DEFLECTOR

- guard, if used, not used on rice combines

1шт.

30

1312291C1

SHEET

SUPPORT - straw spreader

1шт.

31

192313C5

SUPPORT

DEFLECTOR - straw discharge, if used, not used on rice combines

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6шт.
