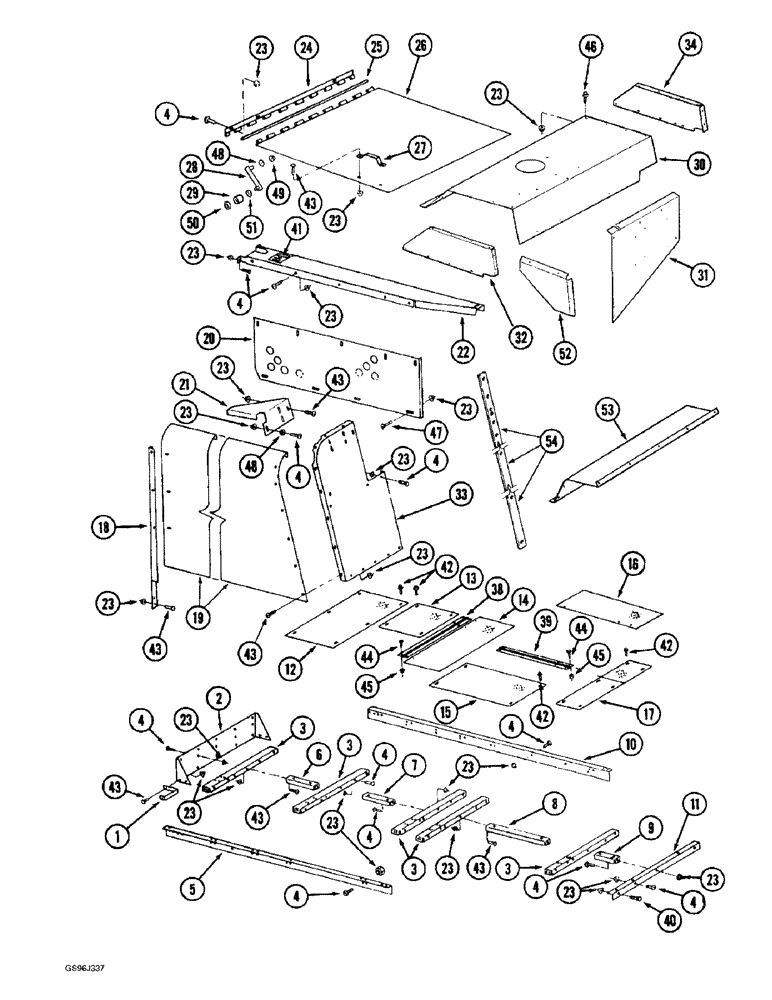

Запчасти Case IH 1660 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

188419C1

CHANNEL

BRACKET - grain tank, upper left-hand rear

1шт.

2

193435C3

SUPPORT

- engine service deck (Replaces support 193435C2)

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

69шт.

5

188368C4

ANGLE

BRACKET - deck support, left-hand (Replaces bracket 188368C3)

1шт.

6

188081C1

SUPPORT

- deck

1шт.

7

194461C1

SUPPORT

- deck

1шт.

8

194460C1

SUPPORT

- deck

1шт.

9

194459C1

SUPPORT

- deck

1шт.

10

192960C5

ANGLE

SUPPORT - right-hand deck (Replaces support 192960C4)

1шт.

11

193146C4

ANGLE

- engine deck, rear support

1шт.

12

194456C2

PLATE

- engine compartment, front

1шт.

13

194455C2

PLATE

- engine compartment

1шт.

14

1977155C2

DOOR

- service deck (Replaces doors 186694C2 and 1977155C1)

1шт.

15

188096C2

PLATE

- engine deck, left-hand center

1шт.

16

186692C2

DOOR

- separator drive housing

1шт.

17

192596C3

PLATE

- engine compartment, rear

1шт.

18

188377C1

ANGLE

- shield stiffener, upper left-hand

1шт.

19

1347060C2

SUPPORT

- rear upper left-hand trim (Replaces supports 193154C3 and 1347060C1)

1шт.

20

1302703C2

SHEET ASSY.

PLATE - rotor cover to service deck

1шт.

21

1330481C2

SUPPORT

- LH Rear, Upper shield (Replaces support 195356C1)

1шт.

22

1319647C91

SUPPORT

- door and hood

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

115шт.

24

194477C2

HINGE

- rotor cover door, front

1шт.

25

194478C1

ROD

- rotor door hinge

1шт.

26

186197C93

TRAP DOOR

DOOR - engine and rotor drive cover, includes decal

1шт.

27

160638C1

HANDLE

- door

1шт.

28

1302413C1

PROP

LINK - front, door hold up

1шт.

29

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

1шт.

30

1317824C3

SUPPORT ASSY.

SUPPORT - top cover, rear

1шт.

31

1319792C1

SUPPORT

- air cleaner

1шт.

32

1321295C2

SUPPORT

- top cover mount, left-hand

1шт.

33

1347130C2

SHEET

SUPPORT - engine, left-hand rear (Replaces supports 186194C93 and 1347130C1)

1шт.

34

1321296C1

SUPPORT

- top cover mount, right-hand

1шт.

38

186695C1

HINGE

- separator door

1шт.

39

186693C1

HINGE

- door

1шт.

40

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

20шт.

43

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

29шт.

44

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

18шт.

45

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

3шт.

48

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

49

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

2шт.

50

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

51

567532R1

WASHER

- flat, special, 21/64 x 1/2 x 5/32 inch

1шт.

52

1327680C2

SHEET

SUPPORT - air deflector

1шт.

53

1979212C1

SUPPORT ASSY.

SUPPORT - engine deck extension

1шт.

54

1338058C3

BAR

- engine deck support

1шт.
