Запчасти Case IH 1660 (9G-50) - REAR VIEW MIRROR, RIGHT HAND (10) - CAB & AIR CONDITIONING

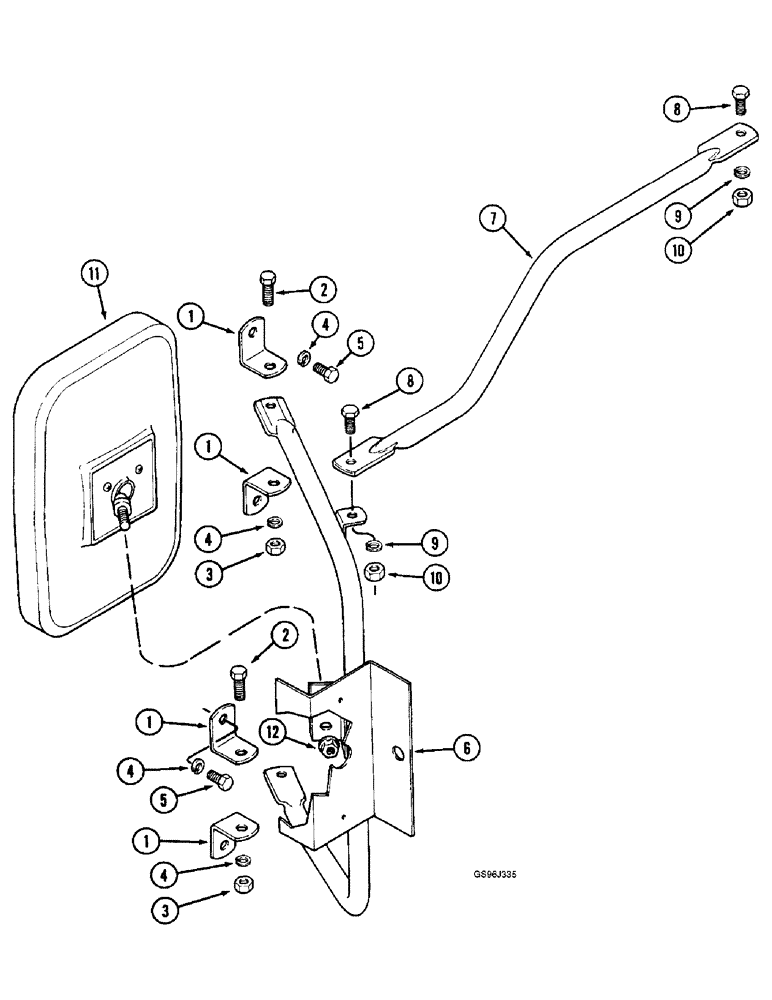

Схема запчастей Case IH 1660 - (9G-50) - REAR VIEW MIRROR, RIGHT HAND (10) - CAB & AIR CONDITIONING
11
4
5
1
2
9
1
3
3
6
10
4
1
5
7
2
8
12
10
4
4
1
8
9

Артикул

Название

Примечание

Количество

1

1281917C1

ANGLE

- bracket mounting

4шт.

2

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

3

329-105

NUT,5/16"-18, G8

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

6

1281914C1

TUBE,438.5, 246.7 mm Length

BRACKET - mirror mounting, right-hand

1шт.

7

1281916C3

LEVER

TUBE - brace, right-hand (Replaces tube 1281916C2)

1шт.

8

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

9

329-106

NUT,3/8"-16, G8

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

1283403C1

MIRROR

- rear view, right-hand

1шт.

12

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5

1шт.

Выбрано товаров: 12
