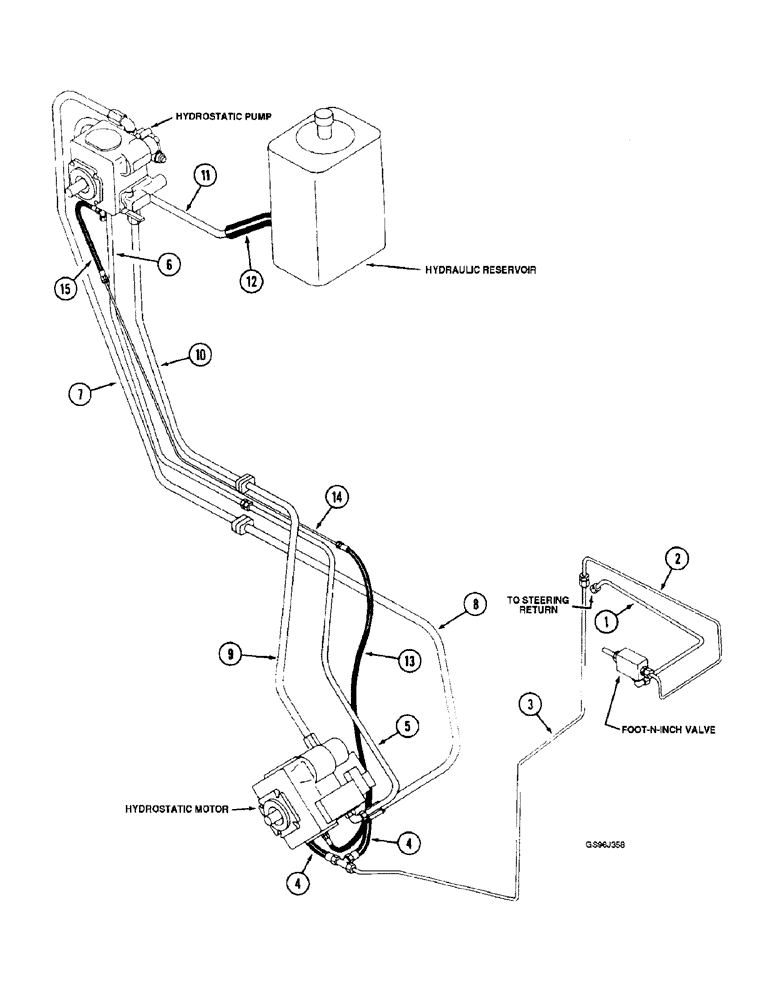

Запчасти Case IH 1660 (1-22) - PICTORIAL INDEX, TWO SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX
9
13
14
15
4
2
6
1
11
10
3
4
7
8
12
5
№
Артикул
Название
Примечание
Количество
1
Foot-N-Inch Valve Return Tube, Page 6-13
1шт.
2
Foot-N-Inch Upper Tube, Page 6-13
1шт.
3
Foot-N-Inch Lower Tube, Page 6-13
1шт.
4
Foot-N-Inch Hose, Page 6-13
1шт.
5
Bleed Lower Tube, Page 6-9
1шт.
6
Bleed Upper Tube, Page 6-9
1шт.
7
Drive Reverse Upper Pressure Tube, Page 6-9
1шт.
8
Drive Reverse Lower Pressure Tube, Page 6-9
1шт.
9
Drive Forward Lower Pressure Tube, Page 6-9
1шт.
10
Drive Forward Upper Pressure Tube, Page 6-9
1шт.
11
Charge Suction Tube, Page 8-7
1шт.
12
Charge Suction Hose, Page 8-7
1шт.
13
Charge Pressure Hose, Page 6-9
1шт.
14
Charge Pressure Tube, Page 6-9
1шт.
15
Charge Pressure Hose, Page 6-9
1шт.
Выбрано товаров: 15
