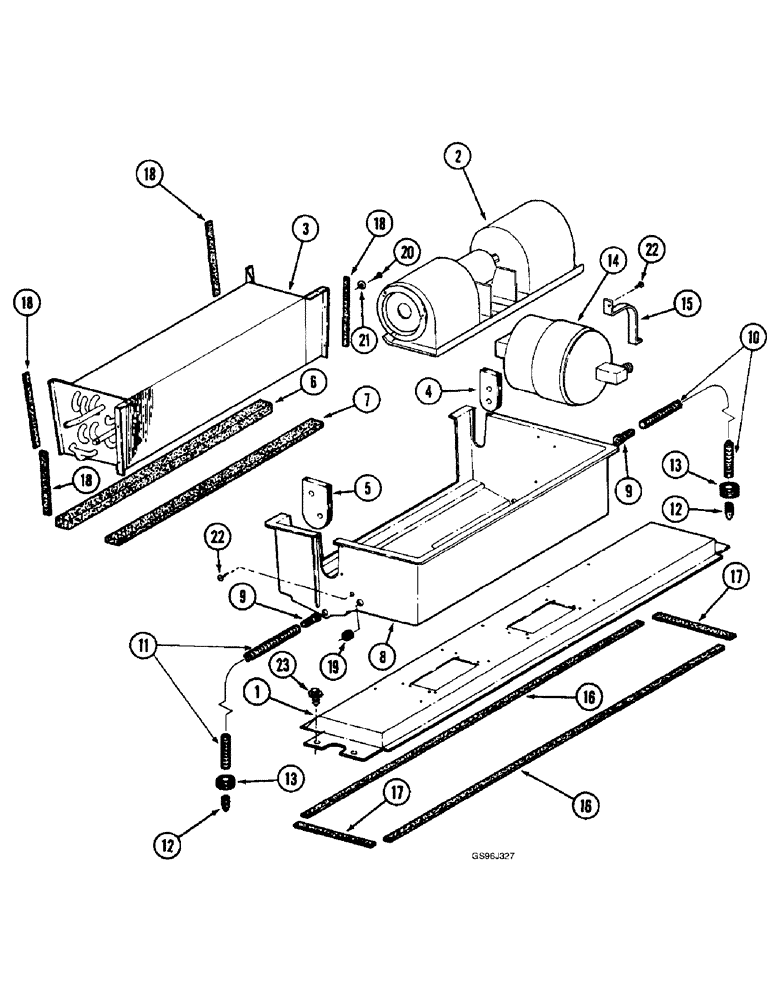

Запчасти Case IH 1660 (9G-34) - EVAPORATOR-HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

1255878C92

BLOWER ASSY.

BLOWER ASSEMBLY - pressurizer, parts list Fig. 9G-36

1шт.

3

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator (Replaces core assembly 135777C2)

1шт.

4

1250463C2

GROMMET

- rubber, evaporator tubes

1шт.

5

1250464C2

GROMMET

- rubber, heater tubes

1шт.

6

84123C1

STRIP

SEAL - core front, 29-1/2 inch (750 mm) long

1шт.

7

84124C1

STRIP

SEAL - core rear, 28-1/2 inch (725 mm) long, cut from bulk seal 98356C1 below

1шт.

8

135776C2

HOUSING

- blower

1шт.

9

1250522C3

FITTING

FITTING - straight, Serial Range: special,-housing

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - condensate left-hand, 90 inch (2286 mm) long, cut from bulk hose 198091C1

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - condensate right-hand,134 inch (3404 mm) long, cut from bulk hose 198091C1

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- condensate hose, 3/4 inch ID

2шт.

14

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system (Replaces receiver-drier 143469C2)

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 50 inch (1270 mm) long, cut from bulk seal 187874C1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 10 inch (254 mm) long, cut from bulk seal 187874C1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - core to housing, 6-1/2 inch (165 mm) long, cut from bulk seal 187874C1

1шт.

19

83931C1

GROMMET

- blower harness

1шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10 NC x 1/2 inch

4шт.

21

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10 NC x 3/4 inch

10шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

4шт.

98356C1

SEALING STRIP

SEAL - 193 inch (4900 mm) long, cut from 50 foot bulk roll 1974883C1

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 1/2 (13) ID x 600 inch (15240 mm) long

1шт.

187874C1

GASKET

SEAL - bulk, 600 inch (15240 mm) long, sold by the foot

1шт.
