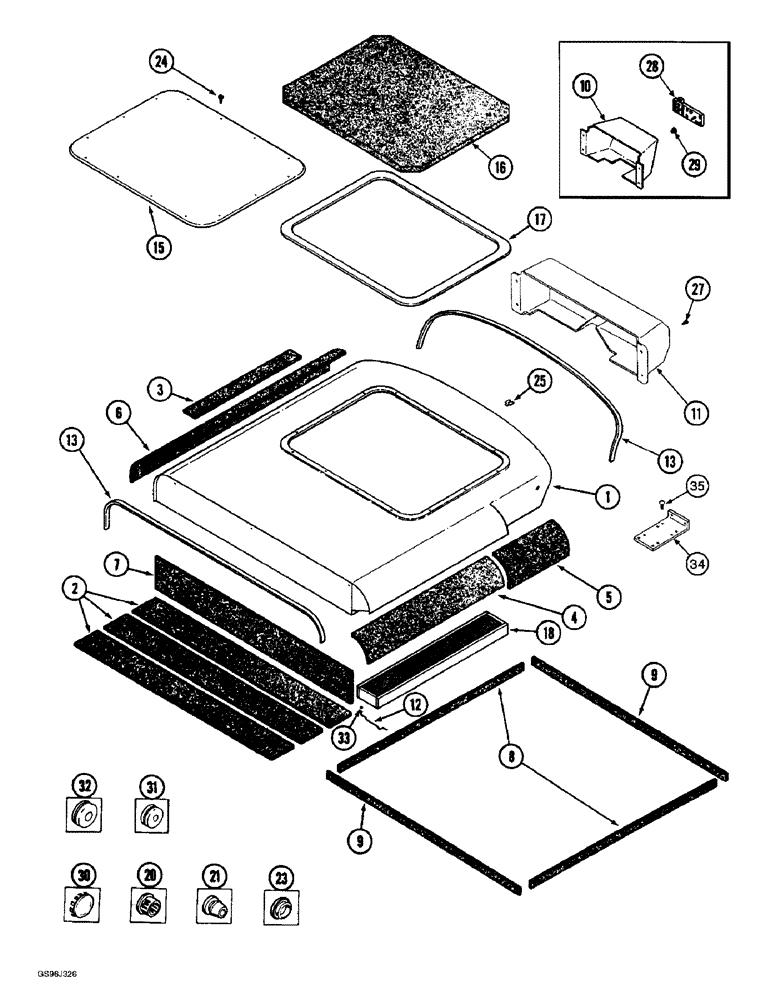

Запчасти Case IH 1660 (9G-32) - CAB ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab, Includes: Ref. 2 - 7

1шт.

1

1276124C4

TOP

ROOF ASSEMBLY - cab, no longer available, order roof assembly 1344179C1 above

1шт.

2

NSS

NOT SOLD SEPARAT

SHEET - insulation top, 12 inch (305 mm) long, cut from bulk seal 1327515C2 below

3шт.

3

NSS

NOT SOLD SEPARAT

SHEET - insulation, left-hand top,12 inch (305 mm) long, cut from bulk seal 1327515C2

1шт.

4

NSS

NOT SOLD SEPARAT

SHEET - insulation, right-hand rear,12 inch (305 mm) long, cut from bulk seal 1327515C2

1шт.

5

NSS

NOT SOLD SEPARAT

SHEET - insulation, right-hand front,12 inch (305 mm) long, cut from bulk seal 1327515C2

1шт.

6

NSS

NOT SOLD SEPARAT

SHEET - insulation, left-hand side, 12 inch (305 mm) long, cut from bulk seal 1327515C2

1шт.

7

NSS

NOT SOLD SEPARAT

SHEET - insulation, rear, 60 inch (1524 mm) long, cut from bulk seal 1327515C2

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - roof sides, 54 inch (1372 mm) long, cut from bulk seal 182747C1used with roof assembly 1276124C4

2шт.

9

NSS

NOT SOLD SEPARAT

STRIP - roof front and rear, 57 inch (1448 mm) long, cut from bulk seal 182747C1 below, used with roof assembly 1276124C4

2шт.

180637C2

SEAL

- roof seal, 220 inch (5588 mm) long, cut from bulk seal 182747C1 below, used with roof assembly 1344179C1

1шт.

10

1281510C2

COVER

- windshield wiper motor, if used

1шт.

11

1344141C1

COVER

- windshield wiper motor, used with roof assembly 1344179C1

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

1281996C1

SEAL

SEAL - roof trim front and rear, 72 inch (1829 mm) long, cut from bulk seal 1327666C1 below

2шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C2

INSULATOR

INSULATION - access cover (Replaces insulation 1276340C1)

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

REF

INSTRUCTION

FILTER - cab, see Fig. 9G-30

1шт.

179093

HOLE PLUG BUTTON,9/32"

8шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

5шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

3шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

28

REF

INSTRUCTION

EMBLEM - Case IH logo, see Fig. 9H-26

1шт.

29

1324788C1

NUT

- self threading, 1/4 inch

2шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

2шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

34

3177098R2

SUPPORT

- beacon lamp, used with roof assembly 1344179C1

1шт.

35

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan Phillips head, No. 10-16 x 1/2 inch, used with roof assembly 1344179C1

6шт.

1327515C2

INSULATOR

INSULATION - bulk, 10 foot (3048 mm) sheet

1шт.

182747C1

DOOR SEAL

SEAL - bulk, 600 inch (15240 mm) long, sold by the foot

1шт.

1327666C1

SEAL

- bulk roll, sold by the foot

1шт.
