Запчасти Case IH 1660 (9G-30) - CAB HEADLINER (10) - CAB & AIR CONDITIONING

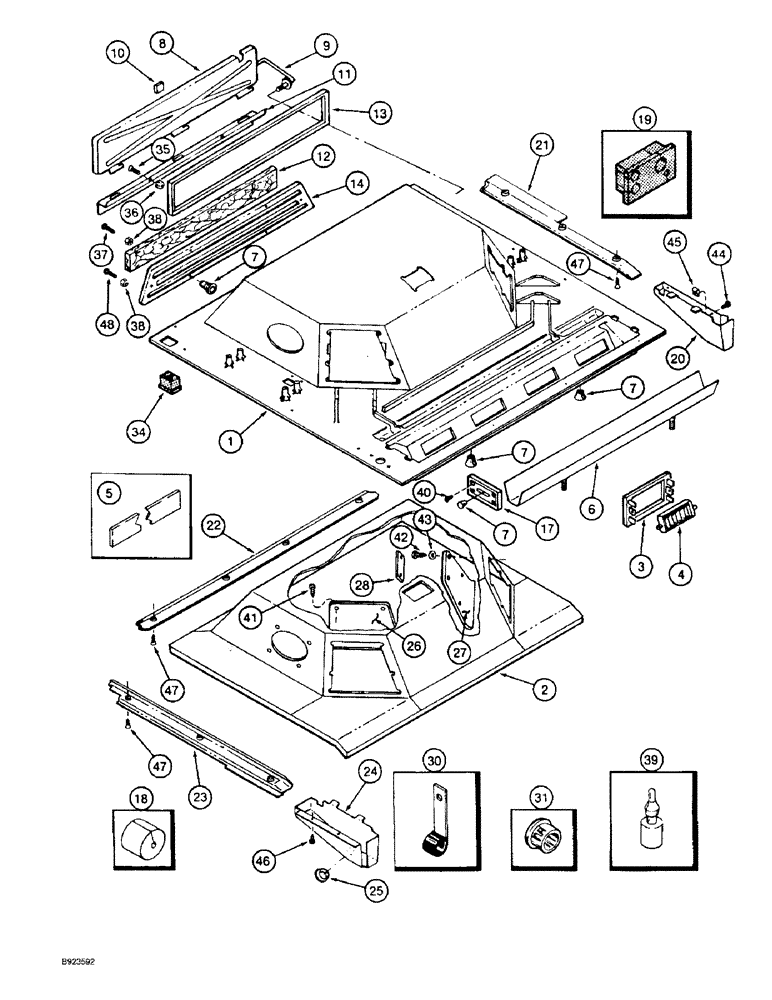

Схема запчастей Case IH 1660 - (9G-30) - CAB HEADLINER (10) - CAB & AIR CONDITIONING
7
8
20
7
22
6
23
39
37
10
13
47
48
31
43
45
7
7
28
47
26
19
36
30
11
24
1
2
12
21
40
18
44
17
47
3
34
27
35
25
38
41
4
14
46
9
5
42

Артикул

Название

Примечание

Количество

1329973C93

PANEL ASSY.

HEADLINER ASSEMBLY- cab, Includes: Ref. 1 and 2

1шт.

1276232C93

PANEL ASSY.

HEADLINER ASSEMBLY- cab, no longer available, order headliner assembly 1329973C93 above

1шт.

1

NSS

NOT SOLD SEPARAT

SHEET - acoustical headliner, order headliner assembly

1шт.

2

1329975C3

INSULATOR

- acoustical headliner,orded with assembly 1329973C93 only

1шт.

3

1280402C1

PANEL

- louver frame

4шт.

4

109227C1

VENT

- louver

4шт.

5

180637C2

SEAL

- body to headliner joint seal, cut from bulk seal 182747C2

1шт.

6

1321268C2

COVER

- defroster vent

1шт.

7

97135C1

KNOB

- control, round top

3шт.

7

1321356C1

KNOB

- control, flat top

3шт.

8

117621C2

DOOR

- recirculating air

1шт.

9

1276293C2

ROD

- control

1шт.

10

118345C1

BUMPER

- recirculating door, attach to roof assembly

1шт.

11

111666C2

SUPPORT

- door

1шт.

12

109240C1

CAB FILTER

FILTER - air recirculation

1шт.

12

143481C92

CAB FILTER

KIT - filter, air intake

1шт.

12

87543798

CAB FILTER

Charcoal cab filter

1шт.

13

84157C1

SEAL

STRIP - recirculation door seal, 39-13/32 inch (1001 mm) long, cut from bulk seal 1971350C1

2шт.

14

109282C2

SIEVE

GRILLE - recirculating, air filter

1шт.

15

97135C1

KNOB

- filter grille, used with headliner assembly 1276232C93 (Replaces knob 111296C1)

6шт.

16

1280327C1

PANEL

- insert, controls, used with headliner assembly 1276232C93

1шт.

17

1321259C1

PANEL

- recirculation control trim

1шт.

18

1283457C3

SEAL

GROMMET - right-hand front and rear, monitor harness

1шт.

19

1283459C3

GROMMET

SEAL - left-hand rear corner

1шт.

20

1276270C1

PANEL

- headliner trim, left-hand front

1шт.

21

1280092C1

PANEL

- headliner trim, left-hand rear

1шт.

22

1276235C2

PANEL

- headliner trim, rear

1шт.

23

1280093C2

PANEL

- headliner trim, right-hand rear

1шт.

24

1276271C1

PANEL

- headliner trim, right-hand front

1шт.

25

353-412

PLUG,Dome, 1.093" hole, Nylon

- button, 1-3/32 inch

1шт.

26

1280212C2

PANEL

- cab control

1шт.

1283031C2

DECAL

- heater/air-conditioning control panel

1шт.

1283479C2

DECAL

- heater controls

1шт.

27

1280182C2

PANEL

- radio and clock

1шт.

28

1321384C1

PANEL

- radio insert

1шт.

30

395467R2

CLIP

- retaining

2шт.

31

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

3шт.

31

353-411

PLUG,Dome, 1.000" hole, Nylon

Heater only Dome, 1.000" hole, Nylon

1шт.

31

353-404

PLUG,Dome, .500" hole, Nylon

Heater only Dome, .500" hole, Nylon

1шт.

34

1327770C2

SEAL

- right-hand rear, cab harness hose

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

36

231-5146

FLANGE NUT,3/8"-16

2шт.

37

261-33724

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1-1/2 inch

6шт.

38

1250628C2

SPACER

- grille spacer

6шт.

39

117995C1

PACKAGE

KIT - fastener, plastic toggle, includes 5 fasteners

1шт.

40

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW - self-tapping, oval head, No. 8-18 x 1-3/4 inch

4шт.

41

260-13428

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 3/4"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1-3/4 inch, used with headliner assembly 1276232C93

1шт.

41

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - No. 8-18 x 1/2 inch, used with headliner assembly 1329973C93

2шт.

42

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, N0. 10-16 x 3/8 inch

2шт.

43

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch

2шт.

44

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/4 inch

2шт.

45

445435

SPRING NUT,U, #10-24

- U-spring, No.8-18, Type 1

2шт.

46

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8 NC x 3/8 inch

2шт.

47

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

10шт.

48

260-13728

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/4"

SCREW - self-tapping, pan Phillips, 1/4-14 x 1-3/4 inch, used with headliner assembly 1329973C93

2шт.

182747C1

DOOR SEAL

SEAL - bulk, 600 inch (15240 mm) long, sold by the foot

1шт.

1971350C1

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 57
